Spot SW 100 Lab 400V / F1 with ACC. And car
DESCRIPTION

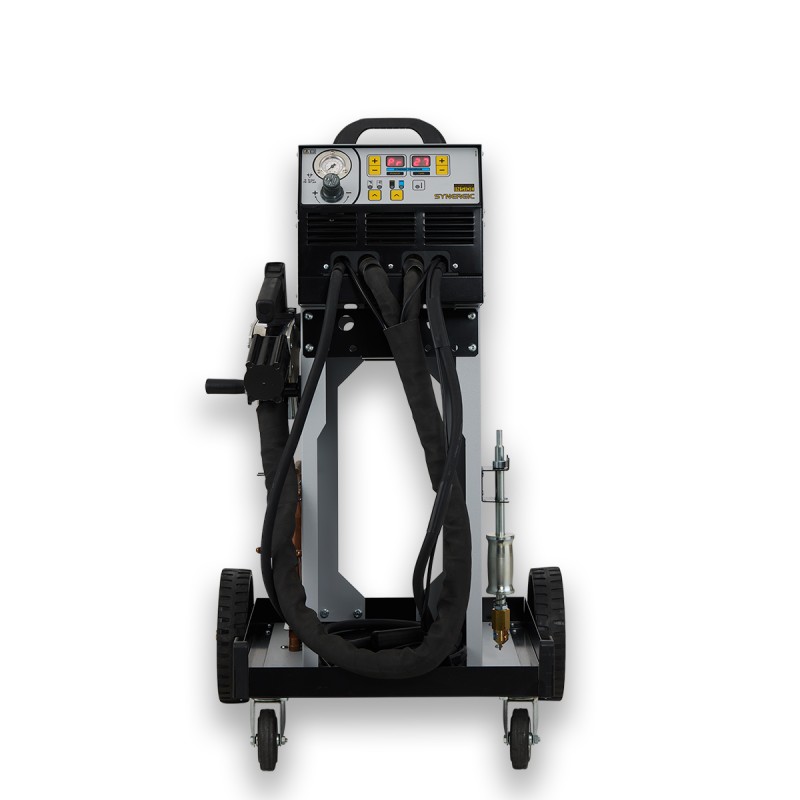

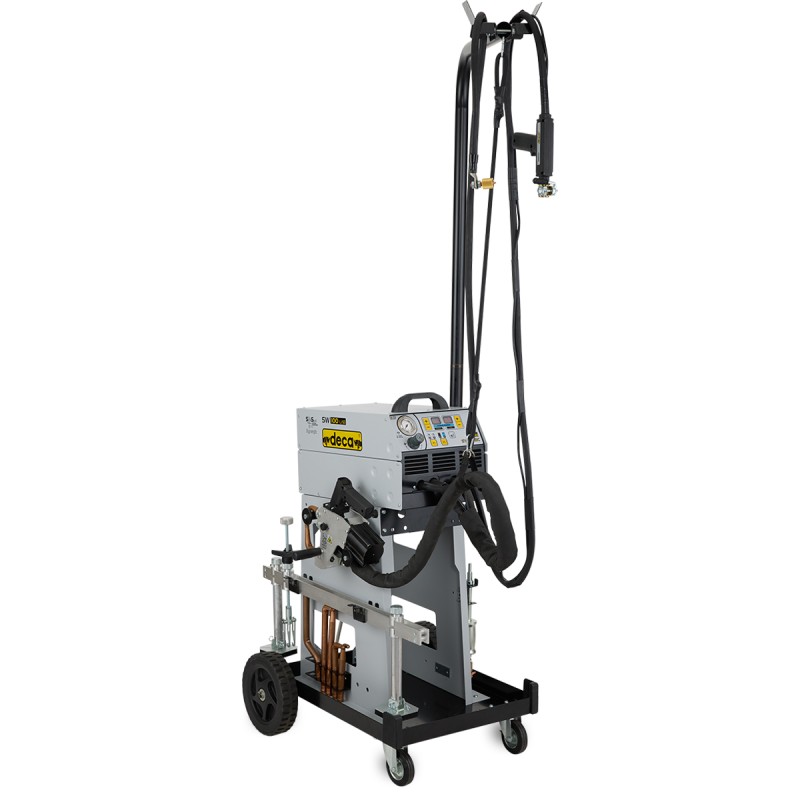

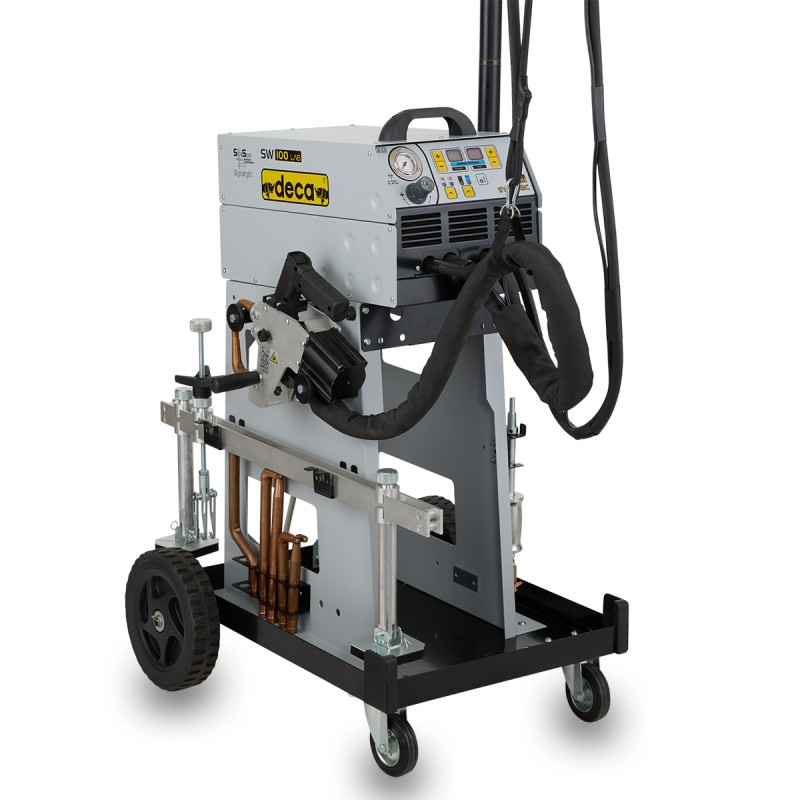

SW 100 Lab is a system for welding by strokes of car bodies. Extremely powerful and simple to use.
SW 100 Lab is easy to use: Synergic operation automatically adjusts the welding parameters depending on the selected tool
and the thickness to weld. A table indicates the optimal welding parameters; However, it is possible to customize the time and workstation for Optimize the result.
DESCARGAR FICHA TÉCNICA
385276600.pdf
Mi Descargar ficha técnica del producto 385276600
* Taxes and transport excluded
| Alimentación | 400v / f1 |
|---|---|
| Power consumed: 50% / 100% | 11.2 kW - 47.0 kW |
| Fusible | 32 Amp. |
| Regulation field (I RMS) | 200 - 8000 AMP. |
| Tensión en vacío | 0.8 - 10.1 in 99 steps Volt. |
| Soldlable materials | Steel - Stainless steel. - Galvanized steel - AHS steel |
| Copper | IF |
| Pressure reducer | IF |
| Pressure pistol pistol | 250 Dan (10bar) |
| Pneumatic gun cable | 1.6 mts x 150mmq |
| Pistol cable | 2.5 mts x 95mmq |
| Dough | 2 meters x 95mmq |
| Peso Neto/Bruto | 85/94.5 kg. |
| Dimensión aparato | 725 x 650 x 1060 mm. |
| Dimensiones embalaje | 800 x 580 x 965 mm. |
