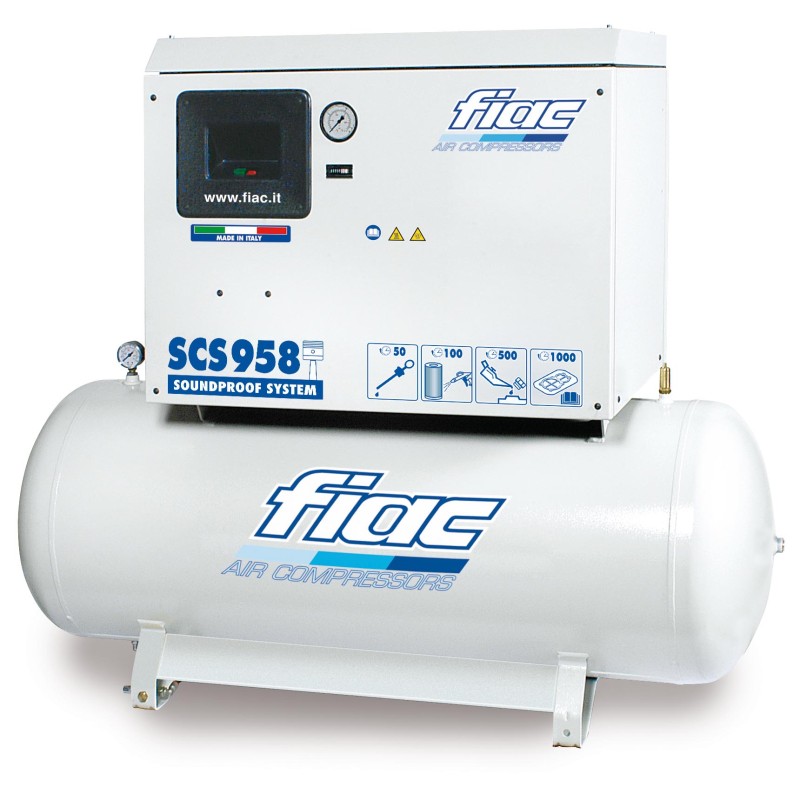

Compressor Sonor.SCS-988 + C500 * 10HP / 910L 400V-F3
DESCRIPTION
Soundproof compressor of industrial piston. The objectives of the new SCS series are the following: Reduction of the number of special components, same level of operation, internally reduced temperature and also at air outlet, emergency stop, high soundproofing, hour counter, 2-stage engine. It works with pressure switch, amperometric relay and overload protector.
DESCARGAR FICHA TÉCNICA
410000216.pdf
Mi Descargar ficha técnica del producto 410000216
* Taxes and transport excluded
| Alimentación | 400V/F3 |
|---|---|
| Tank capacity | 500 LTS. |
| Potencia | 7.5 - 10 Kw-Hp |
| Air flow | 910 lt / min. |
| R.P.M | 1070 Nº / min. |
| Cylinders | 2 No |
| Nº stages | 2 nº |
| Max. pressure Bar. | 10 bar. |
| Noise level | 66 dB. |
| Peso Neto/Bruto | 305 kg. |
| Dimensiones | 2038x600x1357 mm. |
