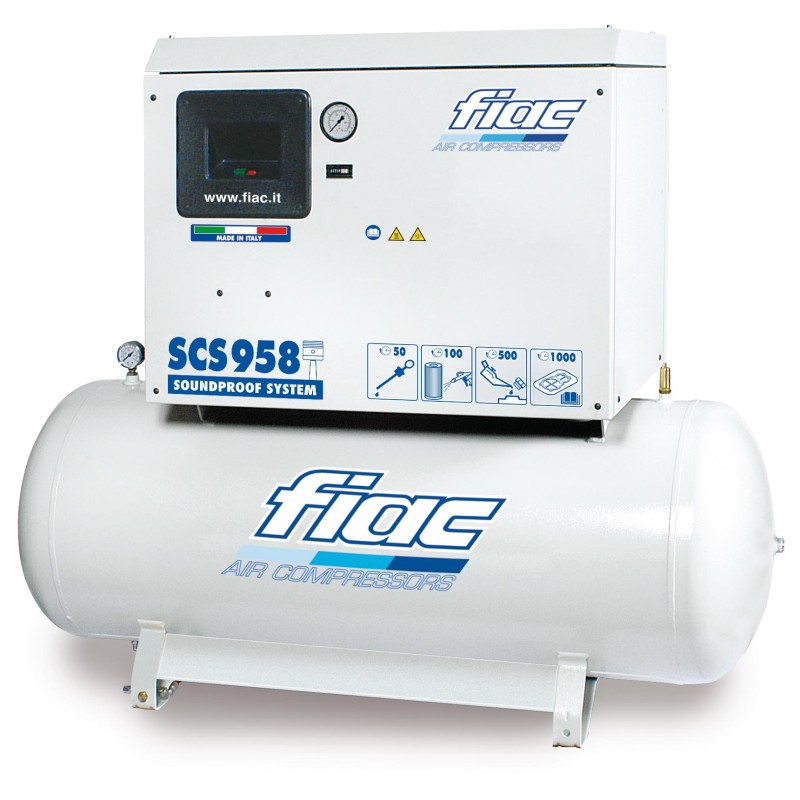

Compressor Sonor.SCS-598 + C300 * 5.5hp / 600L 400V-F3
DESCRIPTION
Soundproof compressor of industrial piston. The objectives of the new SCS series are the following: Reduction of the number of special components, same level of operation, internally reduced temperature and also at air outlet, emergency stop, high soundproofing, hour counter, 2-stage engine. It works with pressure switch, amperometric relay and overload protector.
Download technical sheet
410000208.pdf
Download product technical sheet 410000208
* Taxes and transport excluded
| Alimentación | 400V/F3 |
|---|---|
| Capacidad calderín | 300 lts. |
| Potencia | 4 - 5,5 Kw-Hp |
| Aire aspiración | 600 lt / min. |
| R.P.M | 1.270 Nº/min. |
| Cilindros | 2 Nº |
| Nº Etapas | 2 Nº |
| Presión máxima Bar. | 10 Bar. |
| Nivel de ruido | 69 dB. |
| Peso Neto/Bruto | 1860/2155 kg. |
| Dimensiones | 1612x599x1264 mm. |
