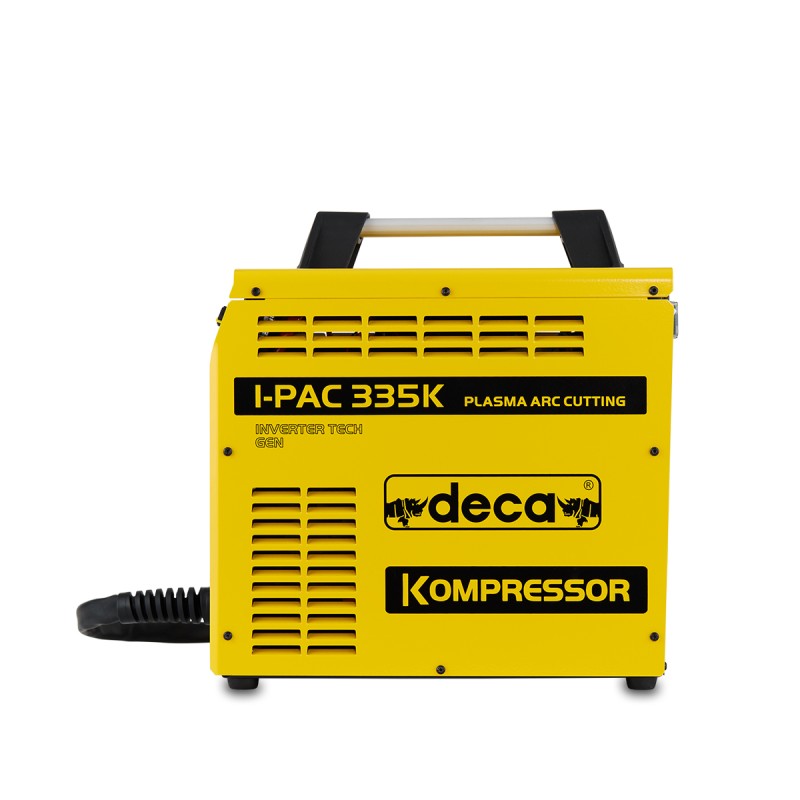

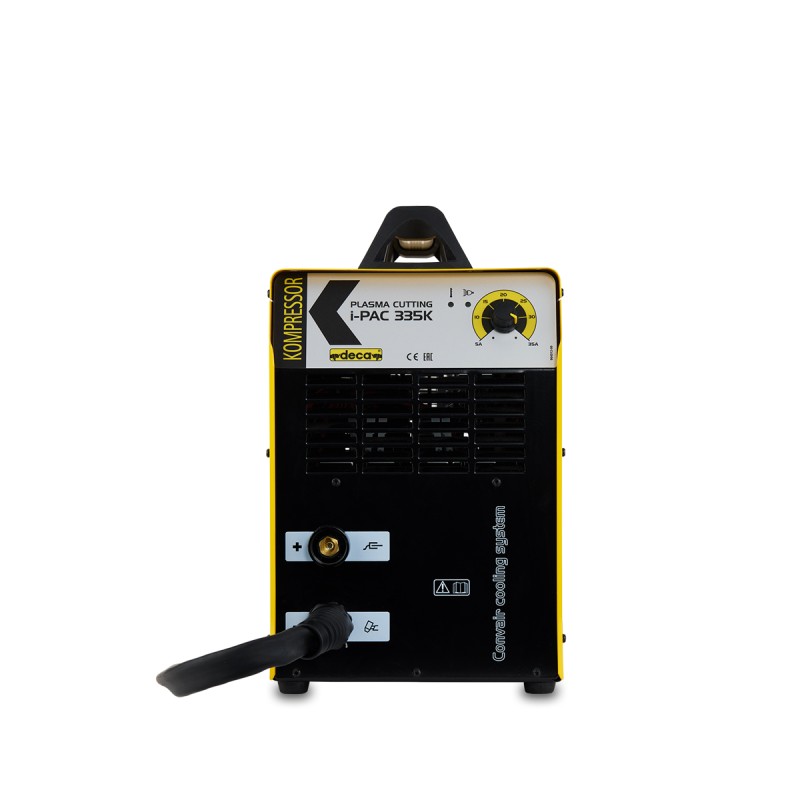

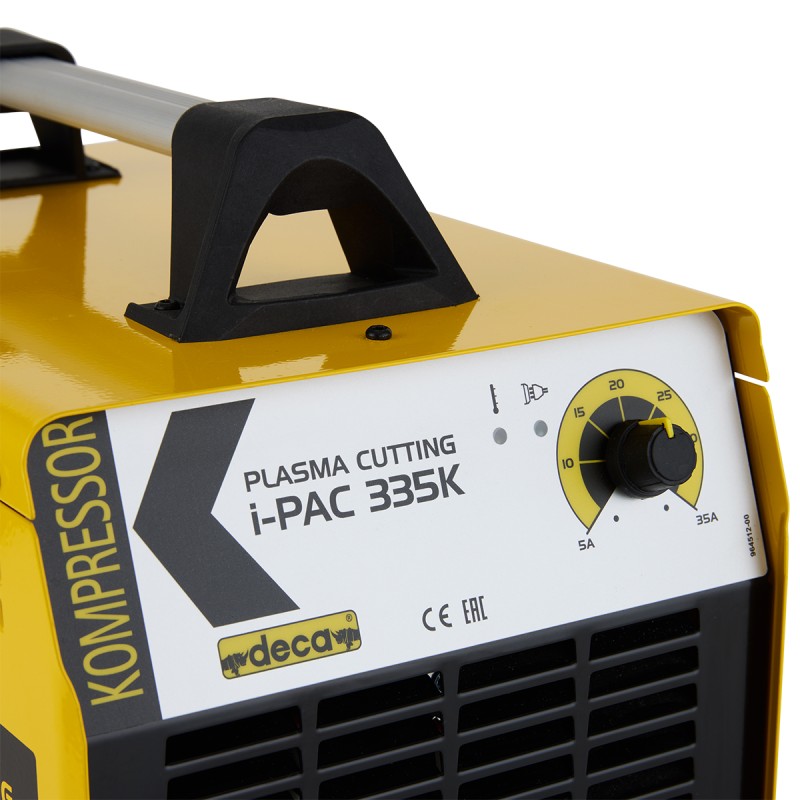

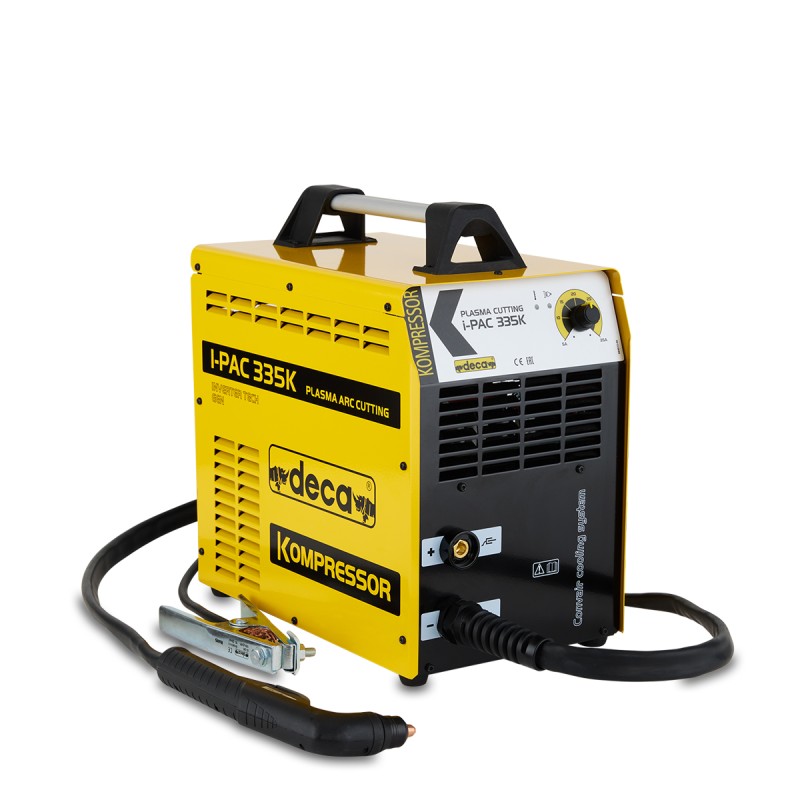

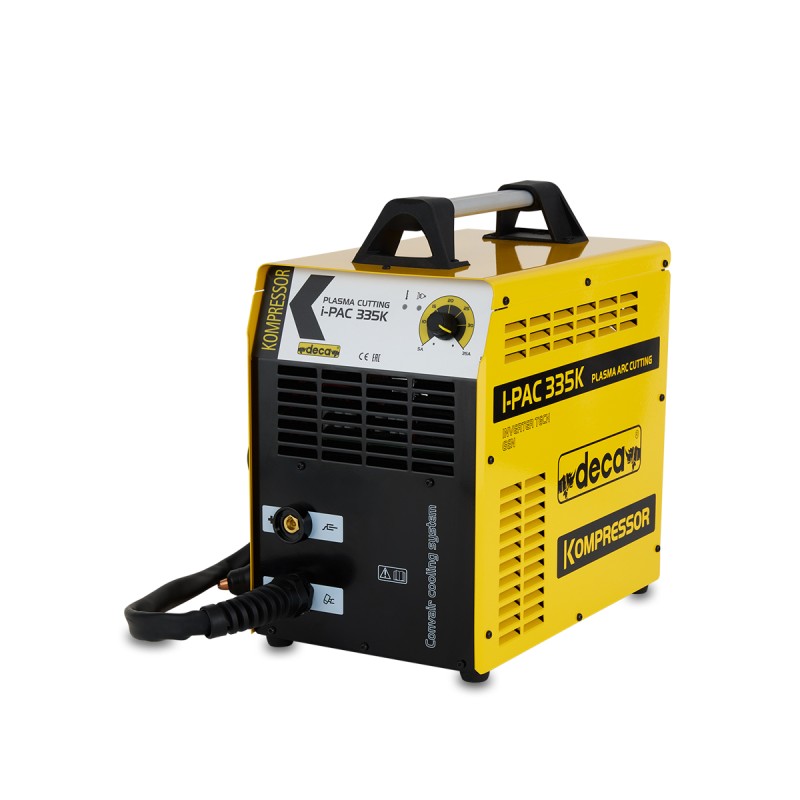

Plasma Inverter I-PAC 335K 230V / F1 with ACC.
DESCRIPTION
Single-phase Inverter plasma cut, with integrated compressor.
For the manual cut of all types of ferrous and non-ferrous materials as long as they are Electricity conductors: steel, copper, aluminum, stainless steel, etc.
It is designed for small repair and construction jobs.
The I-PAC 335K supplies 35 amps and is able to cut with good quality up to 6
mm in sweet steel. If there are no particular quality requirements, the machine separates up 12 mm thick. The supply voltage is single-phase 230 volts.
DESCARGAR FICHA TÉCNICA
384115100.pdf
Mi Descargar ficha técnica del producto 384115100
* Taxes and transport excluded
| Alimentación | 230V-F1 |
|---|---|
| Power consumed: 60% / max. | 2.7 / 3.9 kW |
| Fusible | 16 Amp. |
| Generador compatible | 6 kW / kva. |
| Cutting current | 5 - 35 amp. |
| Servicio EN60974-1 (40ºC) | 35A-30% / 25A-60% / 20A-100% AMP. |
| Tensión en vacío | 410 Volt. |
| Cutting capacity | 6/12 mm. |
| Integrated compressor | IF |
| Peso Neto/Bruto | 16 / 17.5 kg. |
| Dimensión aparato | 480 x 227 x 373 mm. |
| Dimensiones embalaje | 525 x 275 x 445 mm. |
