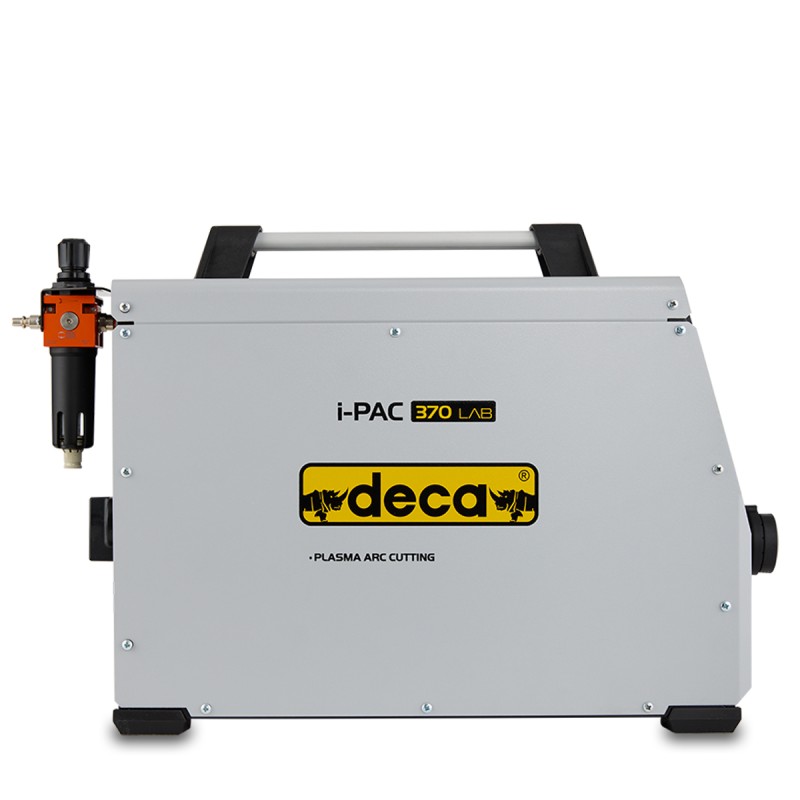

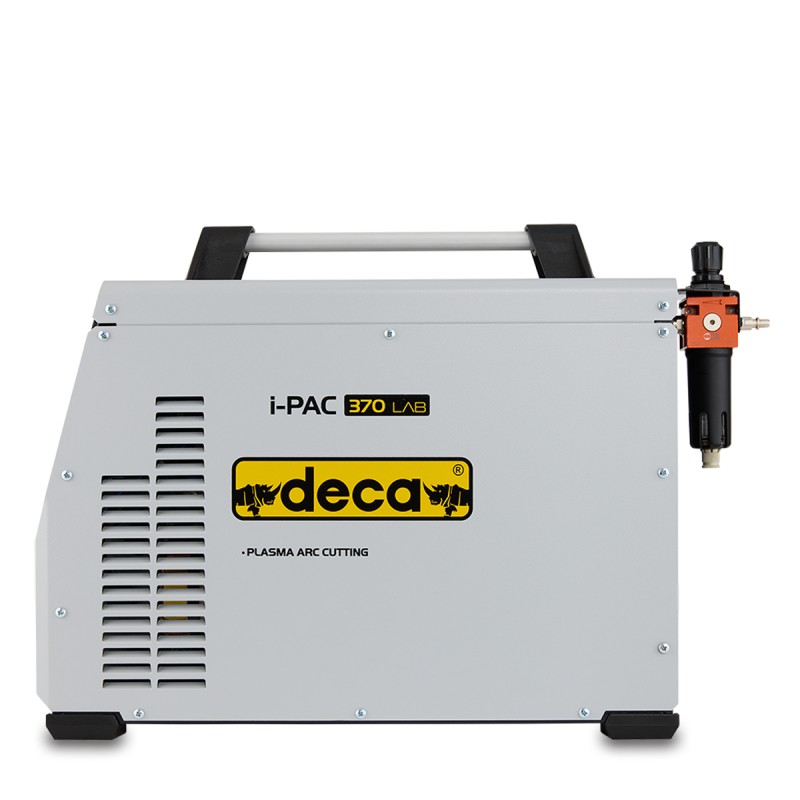

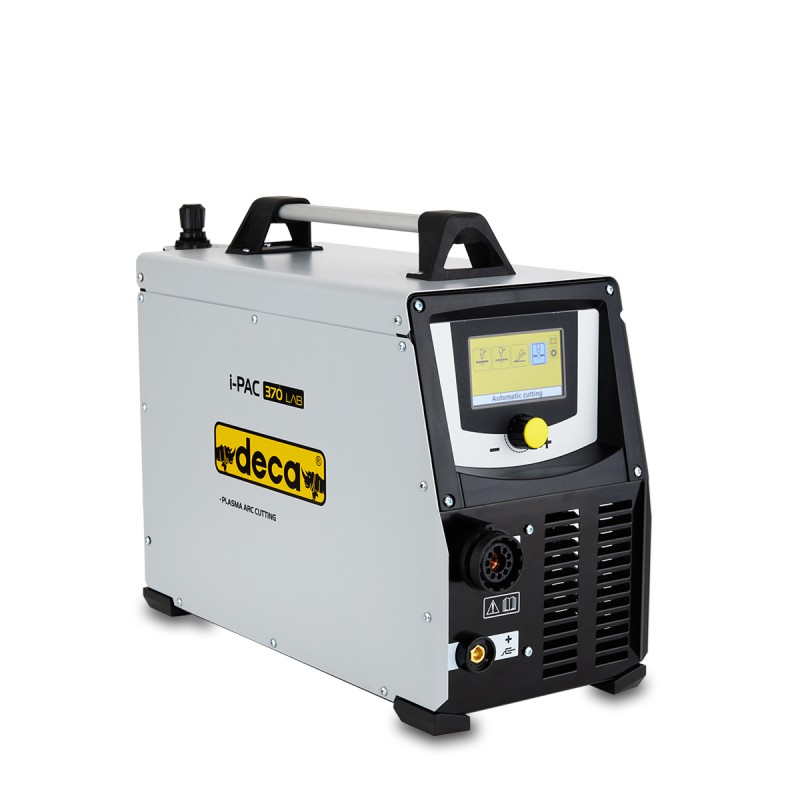

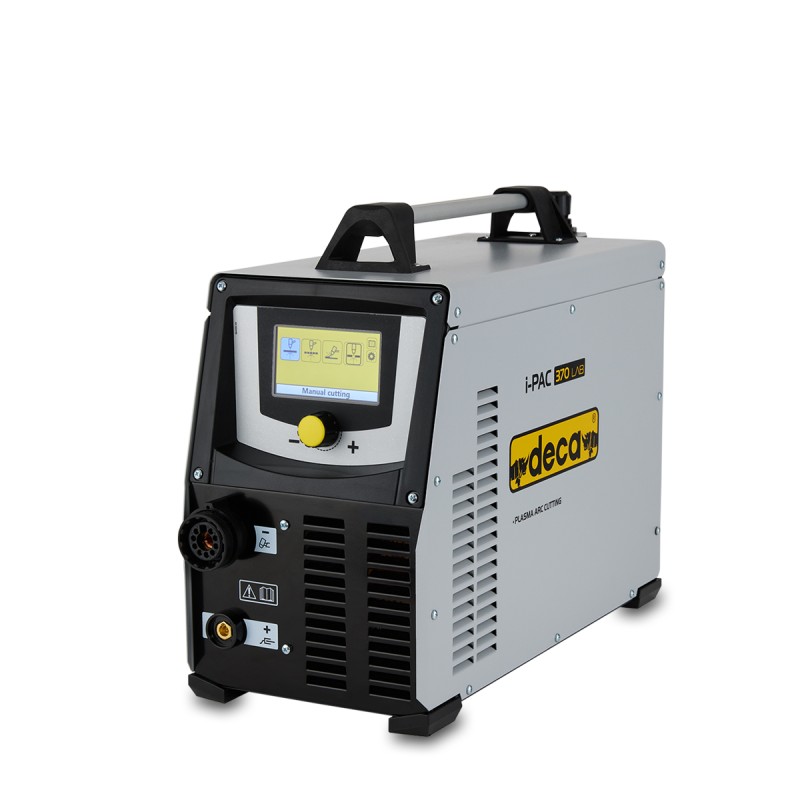

Plasma Inverter I-PAC 370 Lab 230V-400V / F3 with ACC.
DESCRIPTION
I-PAC 370 supplies 70 amps and is able to cut with good quality Up to 25 mm in sweet steel.
Three-phase inverter plasma cut for manual and automated cutting all kinds of ferrous and non-ferrous materials provided that they are drivers of electricity: steel, copper, aluminum, stainless steel, etc.
If there are no particular quality requirements, the machine separates up to 35 mm thickness. The supply voltage is three-phase 230/400 volts With AutoStay.

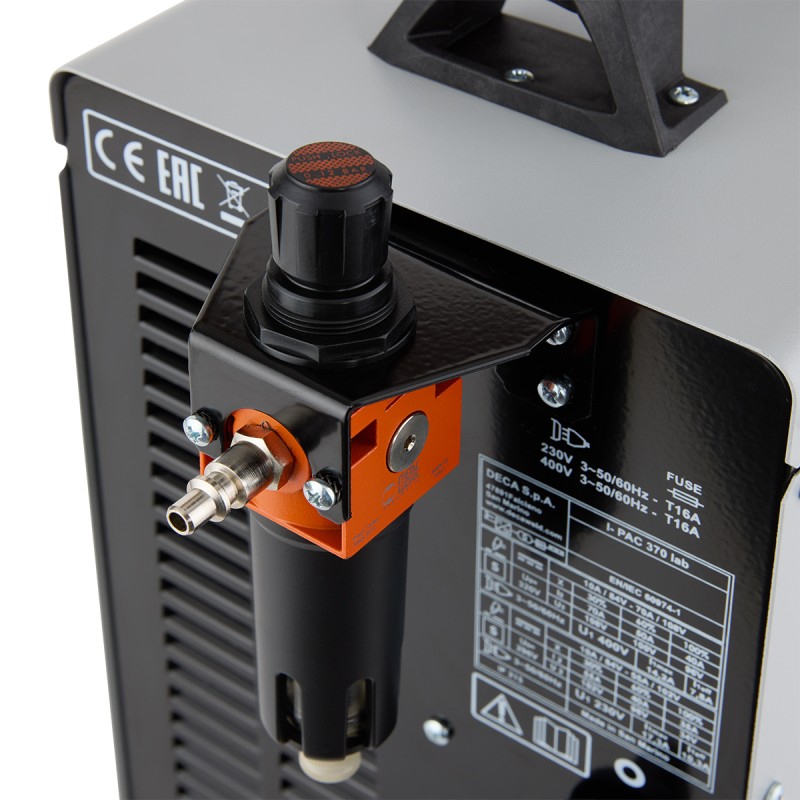

The machine requires 240 liters per minute of compressed air.DESCARGAR FICHA TÉCNICA
384114900.pdf
Mi Descargar ficha técnica del producto 384114900
* Taxes and transport excluded
| Alimentación | 230V-400V/F3 |
|---|---|
| Power consumed: 60% / max. | 4,5-6.2 / 6,7-8.8 |
| Fusible | 16 Amp. |
| Generador compatible | 10/13 kW / kva. |
| Cutting current | 10-55 / 10-70 amp. |
| Servicio EN60974-1 (40ºC) | 40A-30% / 50A-60% / 40A-100% (* 400V) AMP. |
| Tensión en vacío | 296/320 Volt. |
| Pressure Air Bar. | 5 - 5.5 bar. |
| Air consumption | 240 m / h |
| Cutting capacity | 15-25 / 25-35 mm. |
| Integrated compressor | NOT |
| Bow | Pilot arch |
| Peso Neto/Bruto | 17.2 / 24 kg. |
| Dimensión aparato | 612 x 232 x 405 mm. |
| Dimensiones embalaje | 680 x 375 x 540 mm. |
