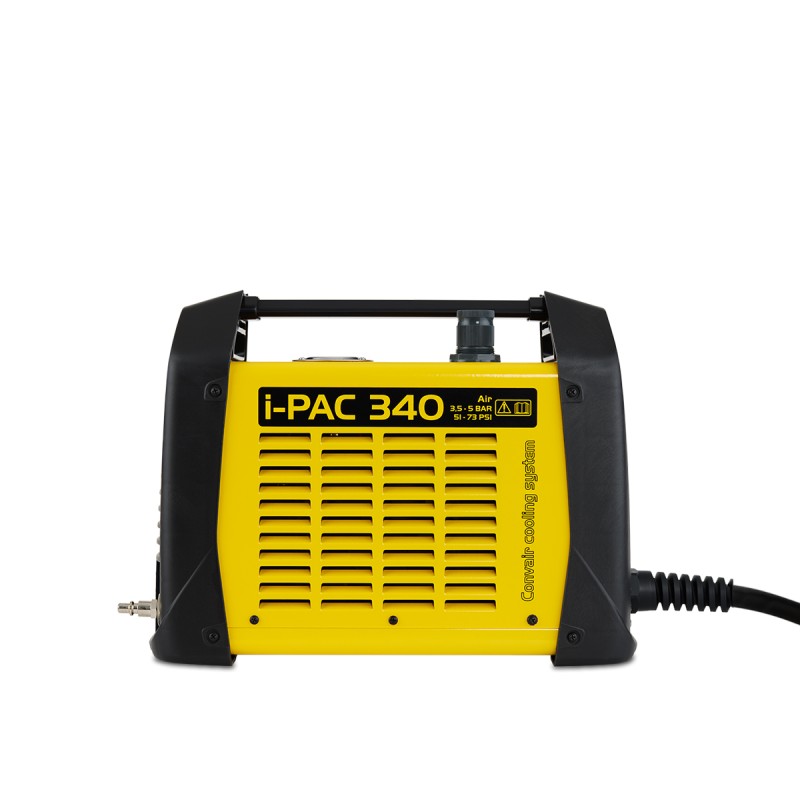

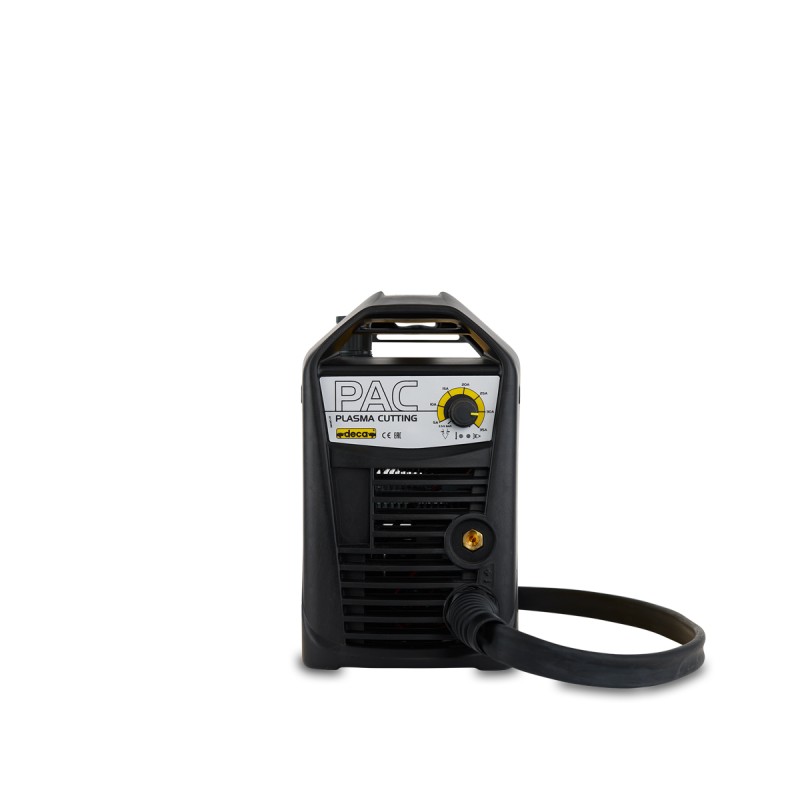

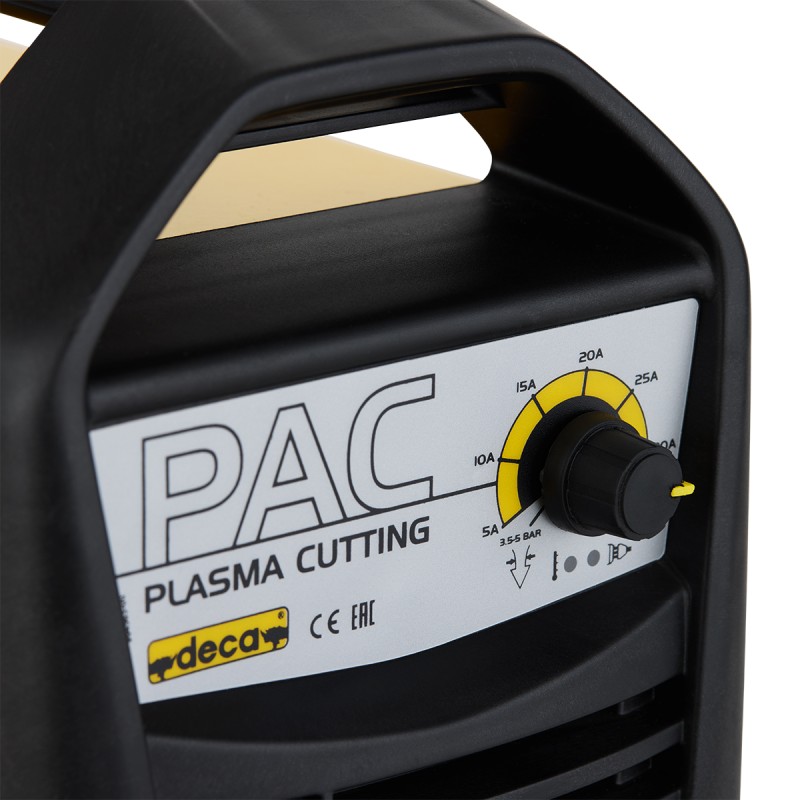

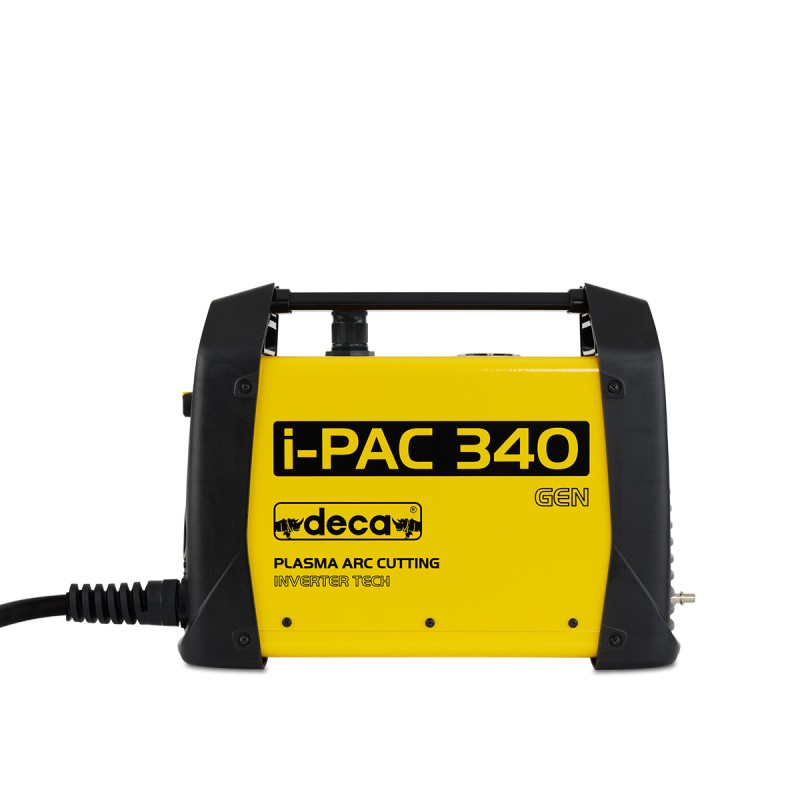

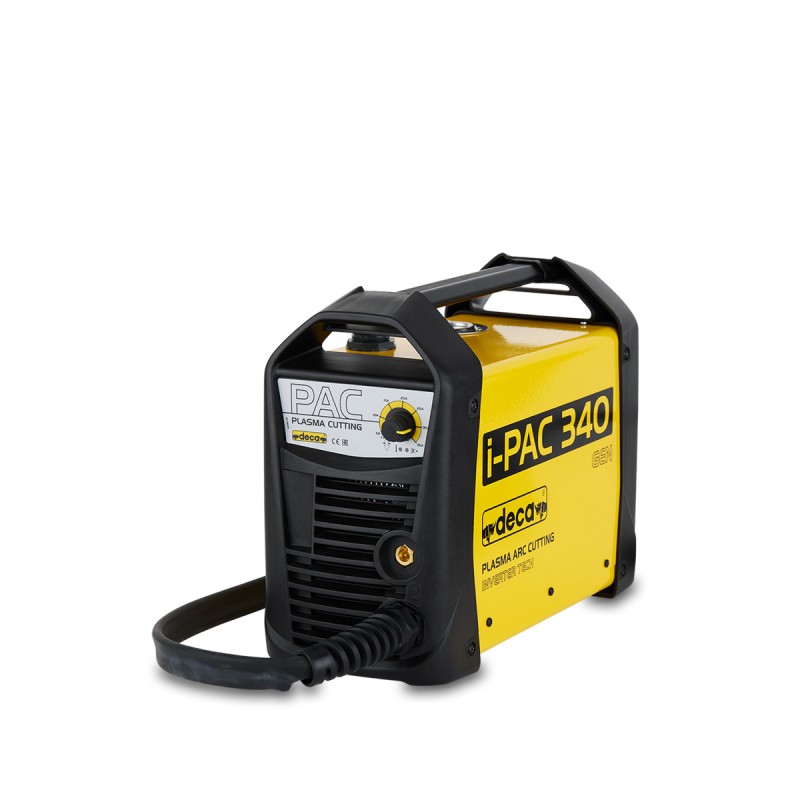

Plasma Inverter I-PAC 340 230V / F1 with ACC.
DESCRIPTION
I-PAC 340 supplies 35 amps and is able to cut with good quality up to 8 mm in sweet steel. If there are no particular quality requirements, the machine Separate up to 12 mm thick.
The supply voltage is single-phase 230 volts. Thanks to his bass Energy consumption can be used with reduced installed power; It can Connect to a generator engine (see Technical Data Table).
The machine requires 115 liters per minute of compressed air.DESCARGAR FICHA TÉCNICA
384111000.pdf
Mi Descargar ficha técnica del producto 384111000
* Taxes and transport excluded
| Alimentación | 230V-F1 |
|---|---|
| Power consumed: 60% / max. | 2.7 / 3.9 kW |
| Fusible | 16 Amp. |
| Generador compatible | 6 kW / kva. |
| Cutting current | 5 - 35 amp. |
| Servicio EN60974-1 (40ºC) | 35A-30% / 25A-60% / 20A-100% AMP. |
| Tensión en vacío | 410 Volt. |
| Pressure Air Bar. | 3.5 - 5 bar. |
| Air consumption | 115 m / h |
| Cutting capacity | 8/12 mm. |
| Integrated compressor | NOT |
| Peso Neto/Bruto | 6.7 / 8 kg. |
| Dimensión aparato | 480 x 160 x 273 mm. |
| Dimensiones embalaje | 495 x 205 x 400 mm. |
