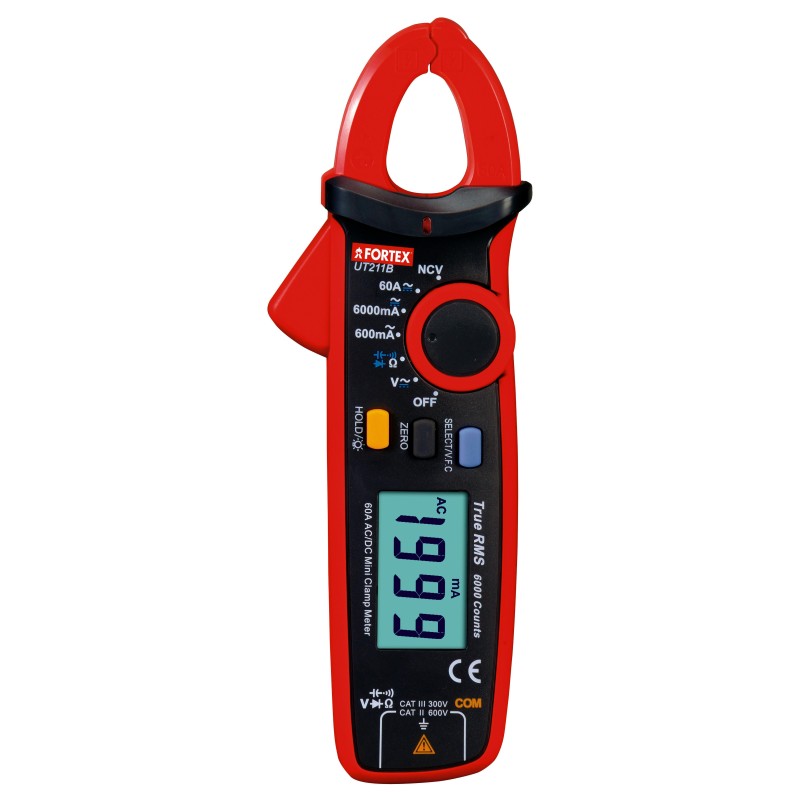

Digital multimetro with mini pinza ut211b
DESCRIPTION
Digital multimeter with mini clamp and backlit screen. To measure AC current and AC / DC voltage, resistance, temperature and frequency. It has the following test functions: Diodes, Continuity with Buzzer, RMS, AC / DC surge, Voltage peak mode, Maximum mode, Data memoria, Relative mode, Entry impedance for measuring Voltage AC (around 10m?), Waiting mode and low battery warning. Automatic off mode (Alred 15min) Max. DISPLAY 6000. It is supplied with test tips and transport bag. CAT II.600V, CAT III.300V, UL61010-1, EN61010-1, EN61010-2-032, EN61010-2-033, EN61326-1.
DESCARGAR FICHA TÉCNICA
520000062.pdf
Mi Descargar ficha técnica del producto 520000062
* Taxes and transport excluded
| DC voltage | 600mv / 6v / 60v / 600v |
|---|---|
| DC Pressure | 0.7% + 3 |
| AC voltage | 6v / 60v / 600v |
| AC Pressure | 0.8% + 3 |
| Dc | 6000ma / 60a |
| Current DC precision | 2% + 3 |
| AC | 600ma / 6000ma / 60a |
| Current AC precision | 1.5% + 10 |
| Strength | 600? / 6k? / 60k? / 6m? / 60m? |
| Precision resistance | 0.8% + 2 |
| Capacitance | - F |
| Accuracy capacitance | - |
| Operating temperature | - ºC |
| Precision temperature | - |
| Frequency | 6.2nf / 62mf |
| Accuracy | 4% + 5 |
| Battery | AAA 1.5V x 2 V. |
| Screen dimension | 39,3x26,5 mm. |
| Dimensión aparato | 175x60x33,5 mm. |
| Weight in grams | 170 gr. |
