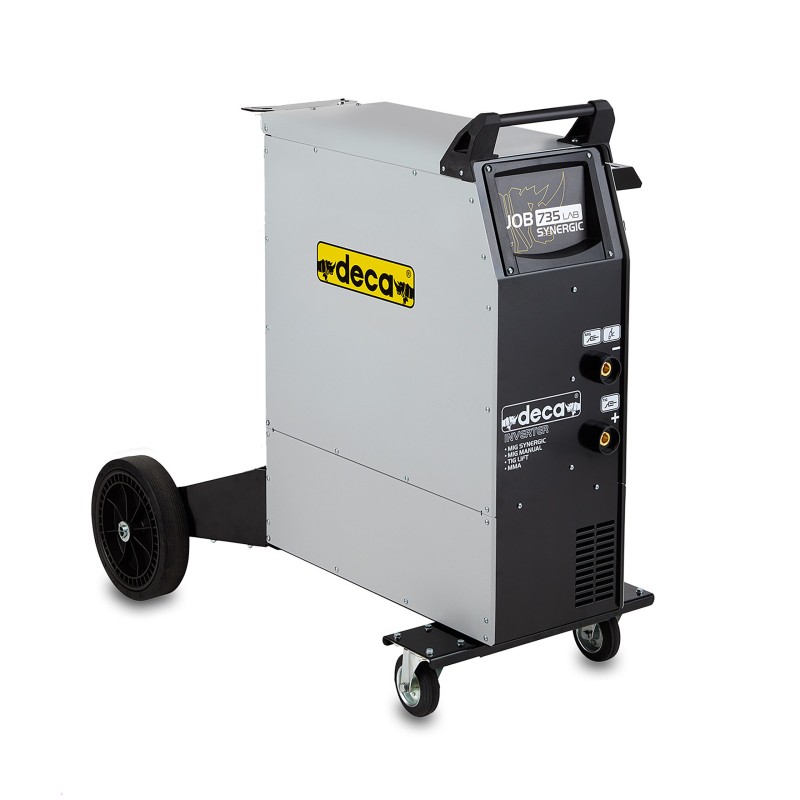

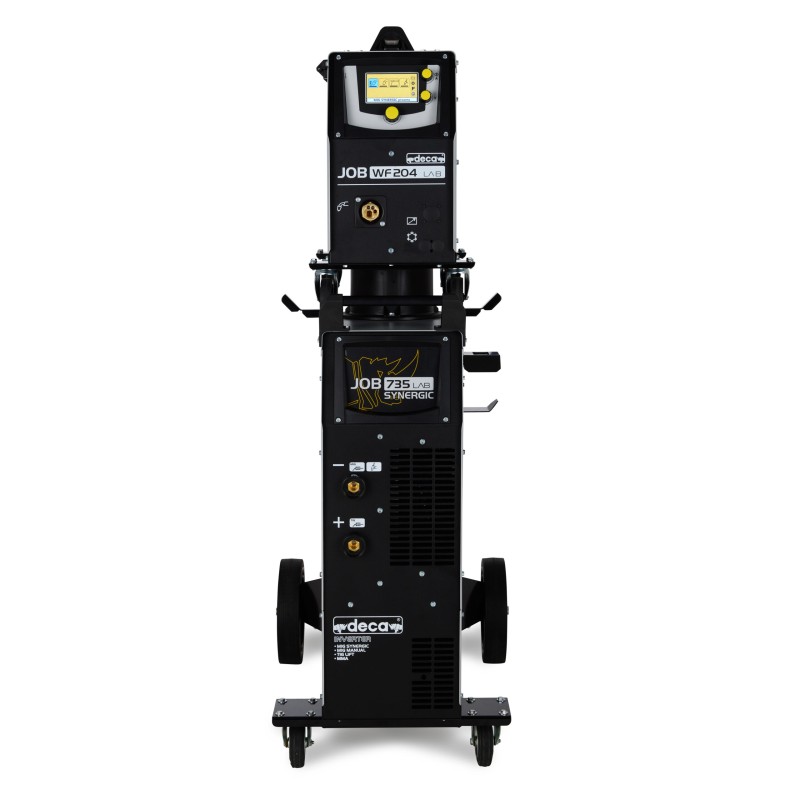

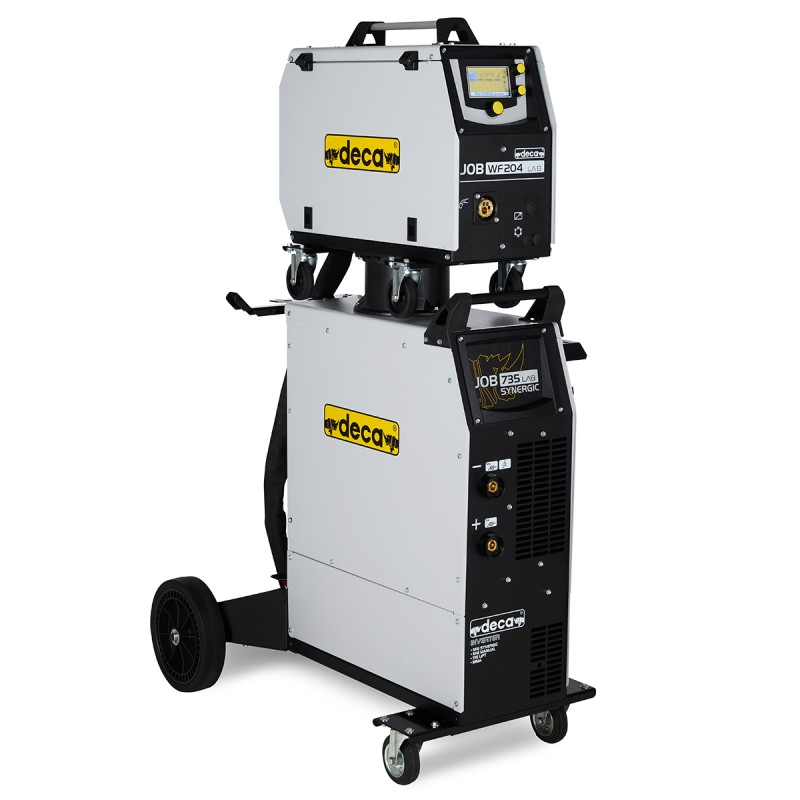

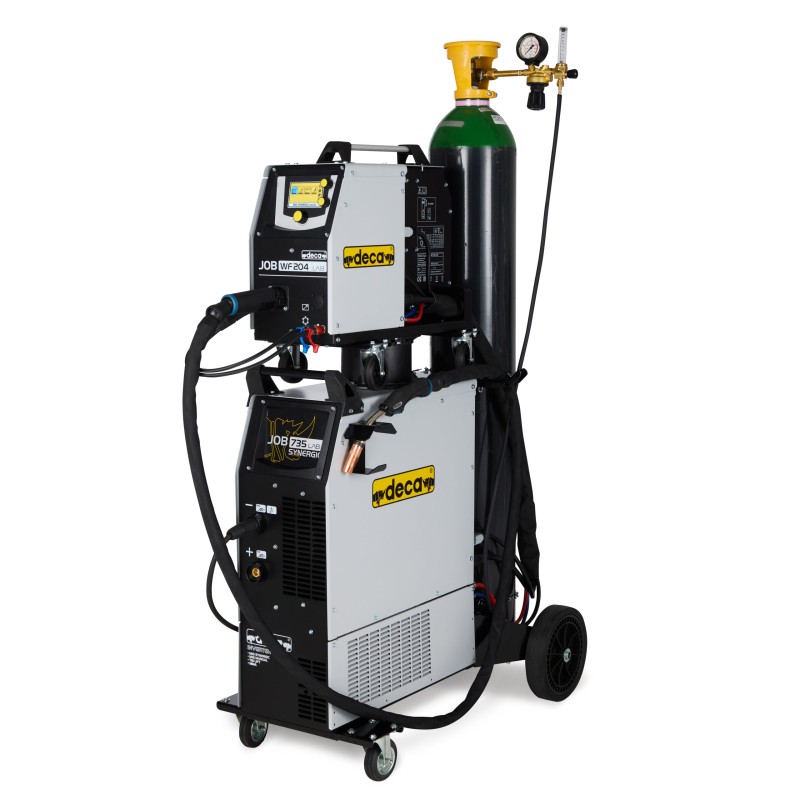

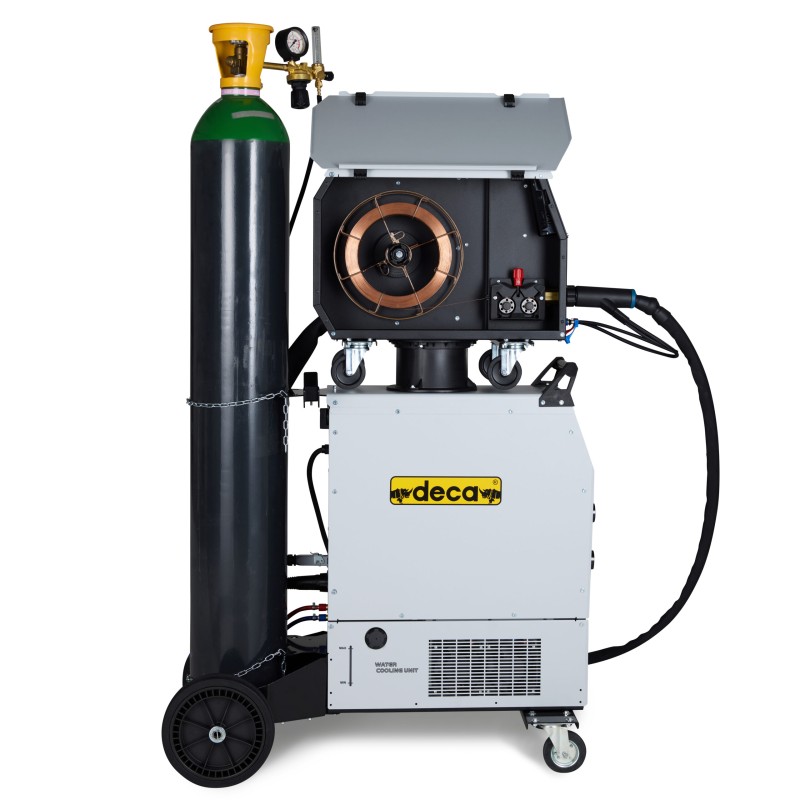

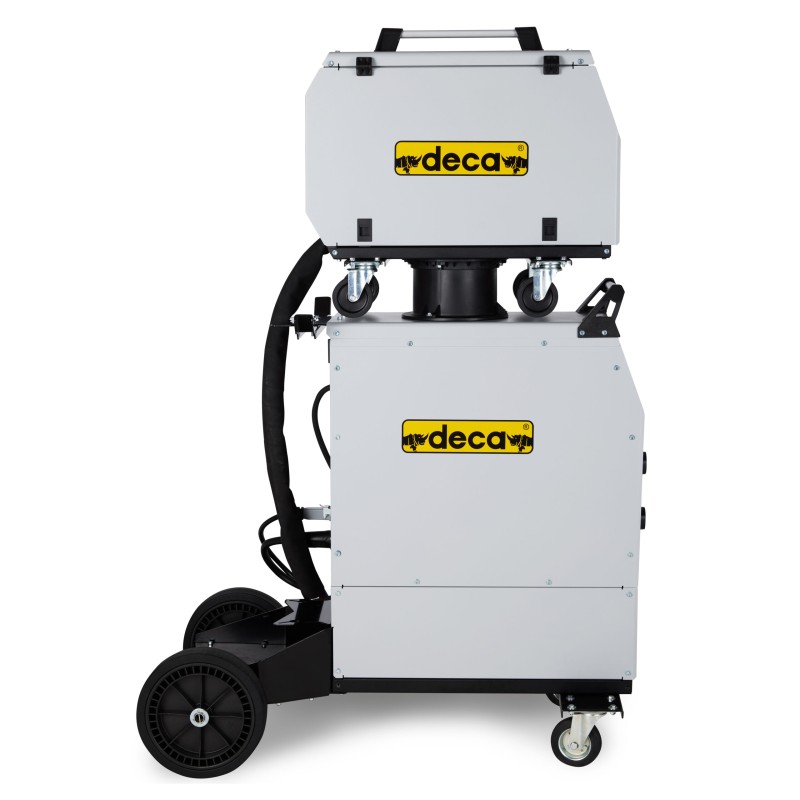

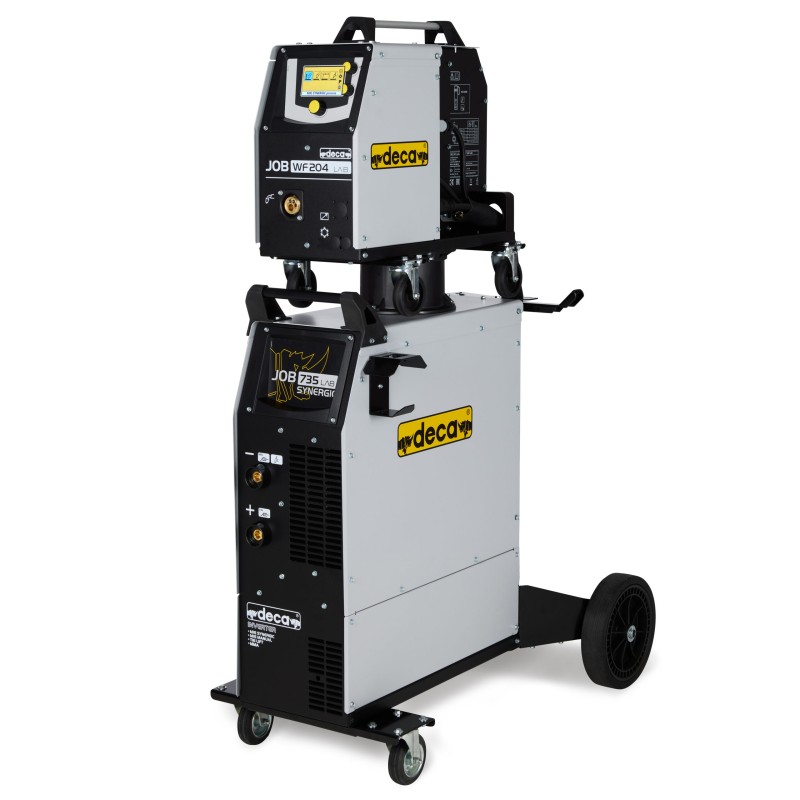

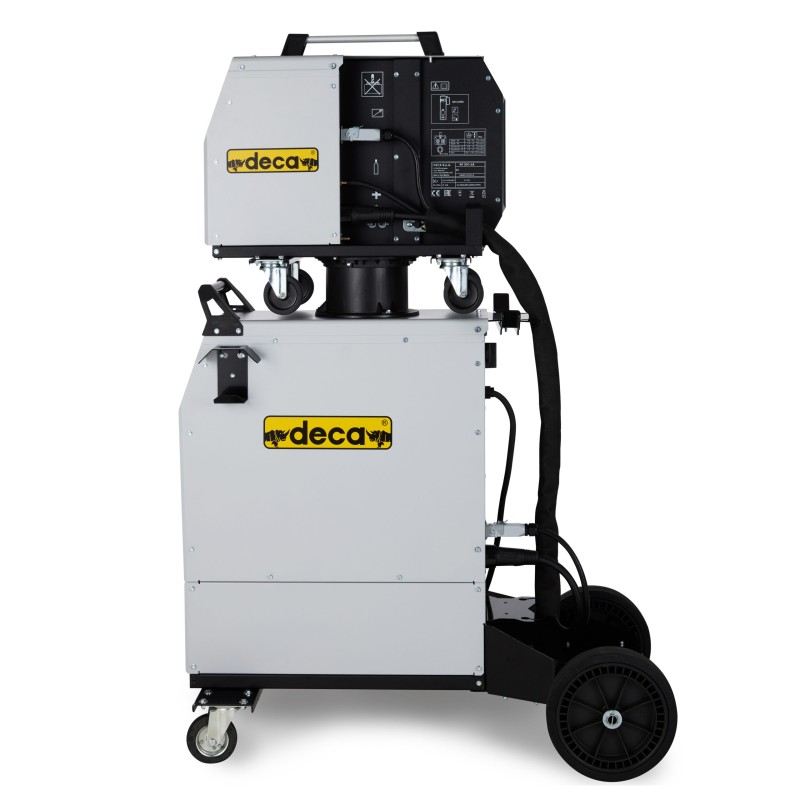

MIG / MAG Inverter JOB 735 Lab 230V-400V / F3 with ACC.
DESCRIPTION
Job 735 Lab supplies 330 AMPERIOS of DC Continue (CC). Tension Feeding is three-phase 230/400 volts (self-adjusting). Offers three processes Welding always by hand: Mig / MAG, MMA and TIG LIFT.
In MIG / MAG mode, it is perfect for steel welding, stainless steel, aluminum and to use strong welding wires and tubular wires.
DESCARGAR FICHA TÉCNICA
383264100.pdf
Mi Descargar ficha técnica del producto 383264100
* Taxes and transport excluded
| Alimentación | 230V-400V/F3 |
|---|---|
| Power consumed: 60% / max. | 5.5-7 / 7-10 kW |
| Fusible | 16 Amp. |
| Generador compatible | 10/15 kW / kva. |
| Regulación de soldar | 10 - 330 MIG-TIG / 10-250 MMA (* 400V) AMP. |
| Servicio EN60974-1 (40ºC) | MIG-TIG 300A-35% / MMA 250A-35% MIG-TIG 250A-60% / MMA 220A-60% (* 400V) AMP. |
| Tensión en vacío | 58/61 Volt. |
| Diámetro hilo acero | 0.6 - 0.8 - 1.0 - 1.2 mm. |
| Diameter thread stainless steel. | 0.8 - 1.0 mm. |
| Diameter thread aluminum | 0.8 - 1.0 - 1.2 mm. |
| Diameter tubular thread | 1.2 mm. |
| Ø Bobina hilo | 200 - 300 mm. |
| Electrodos utilizables | MMA 1.6-5.0 / tig 1.0-4.0 Ø mm. |
| Connector Dinse | 50 mm. |

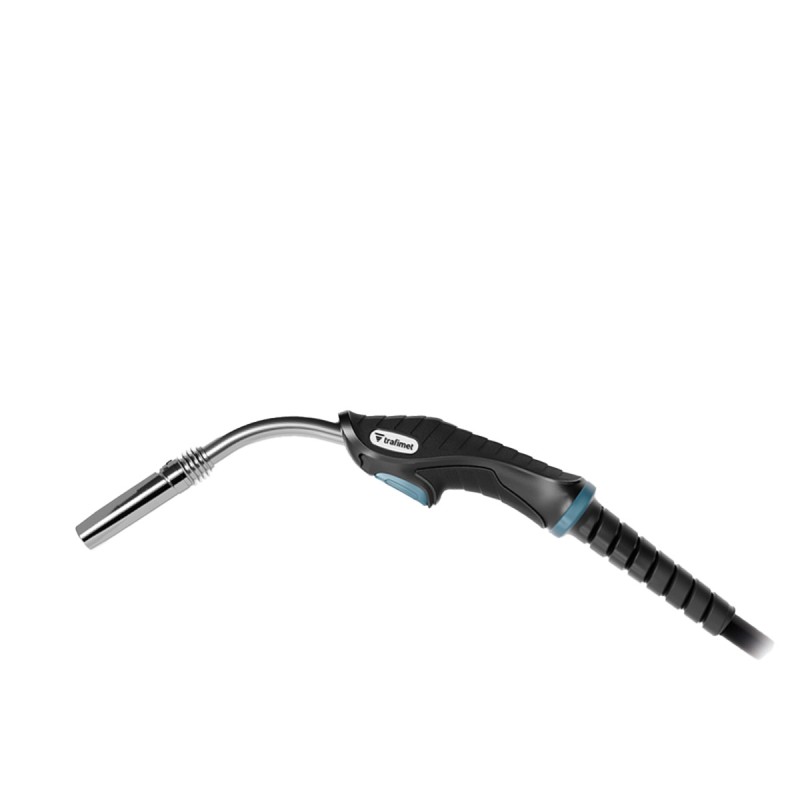

| Antorcha EURO | SI |
| Peso Neto/Bruto | 73/85.3 kg. |
| Dimensión aparato | 986 x 556 x 1450 mm. |
| Dimensiones embalaje | 660 x 345 x 505/800 x 400 x 880 mm. |
