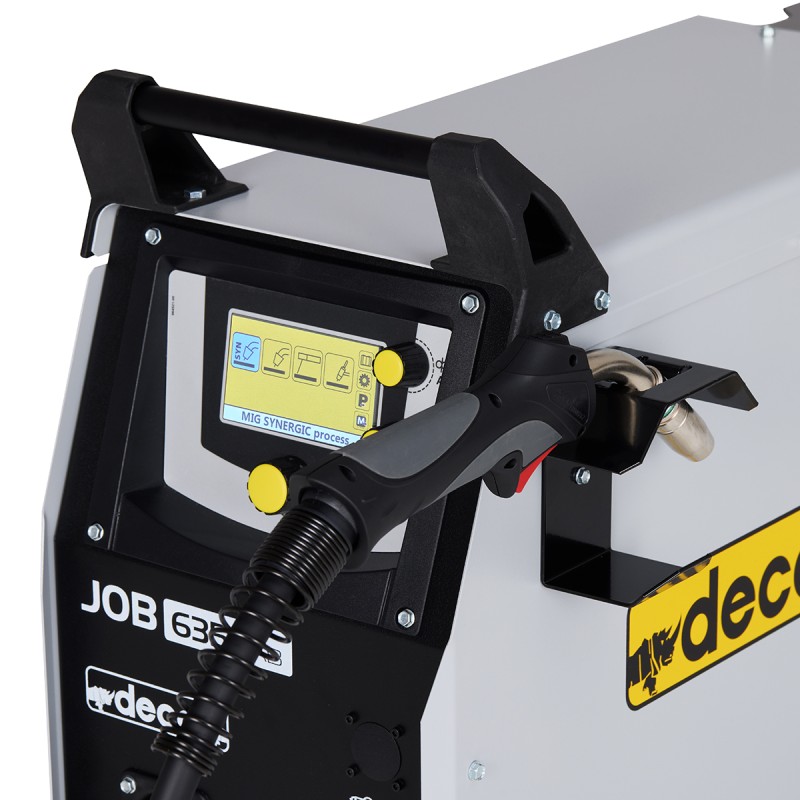

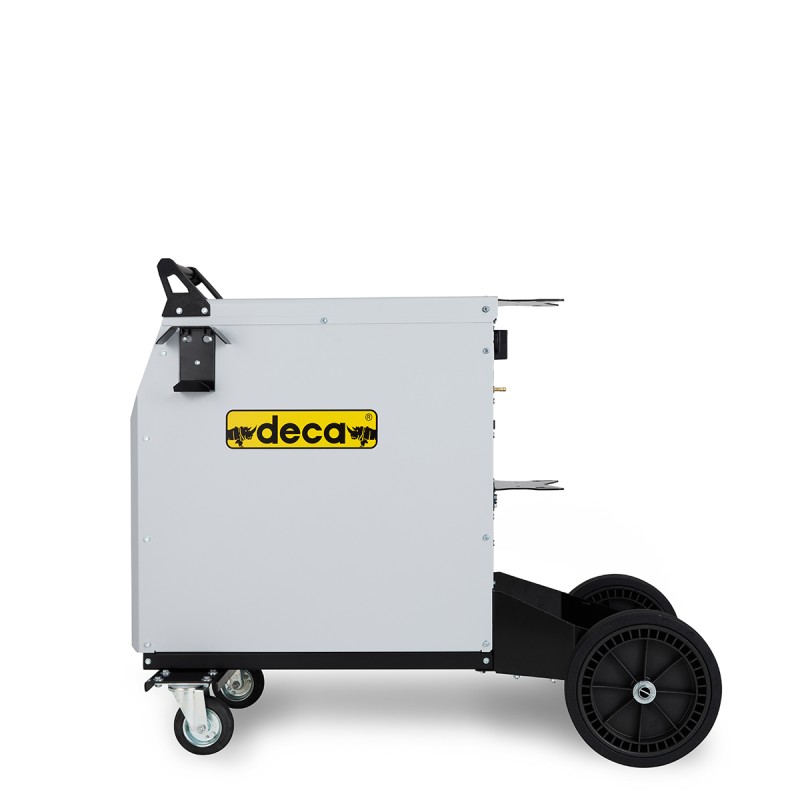

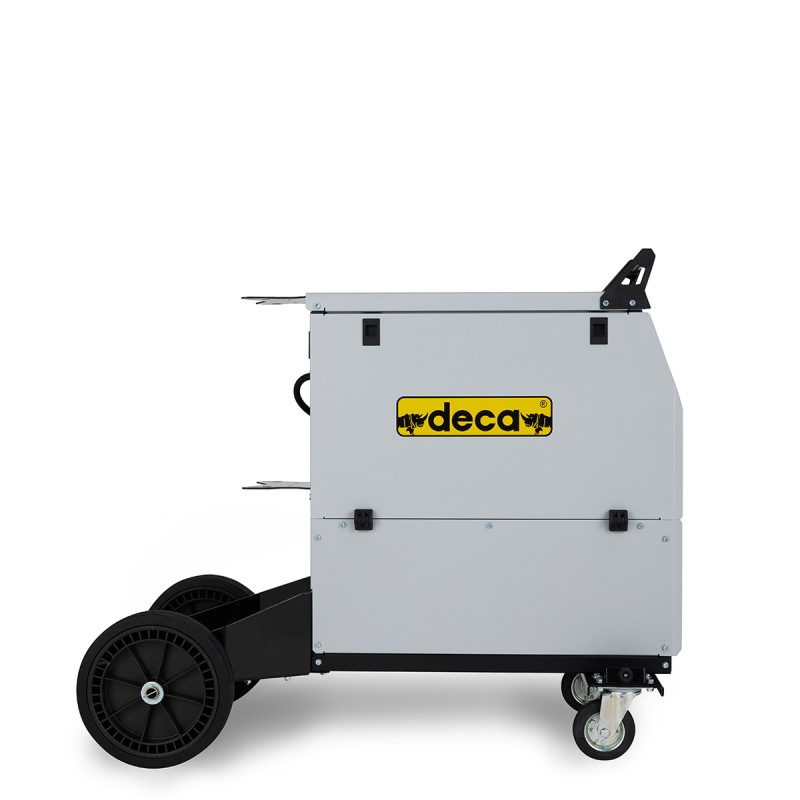

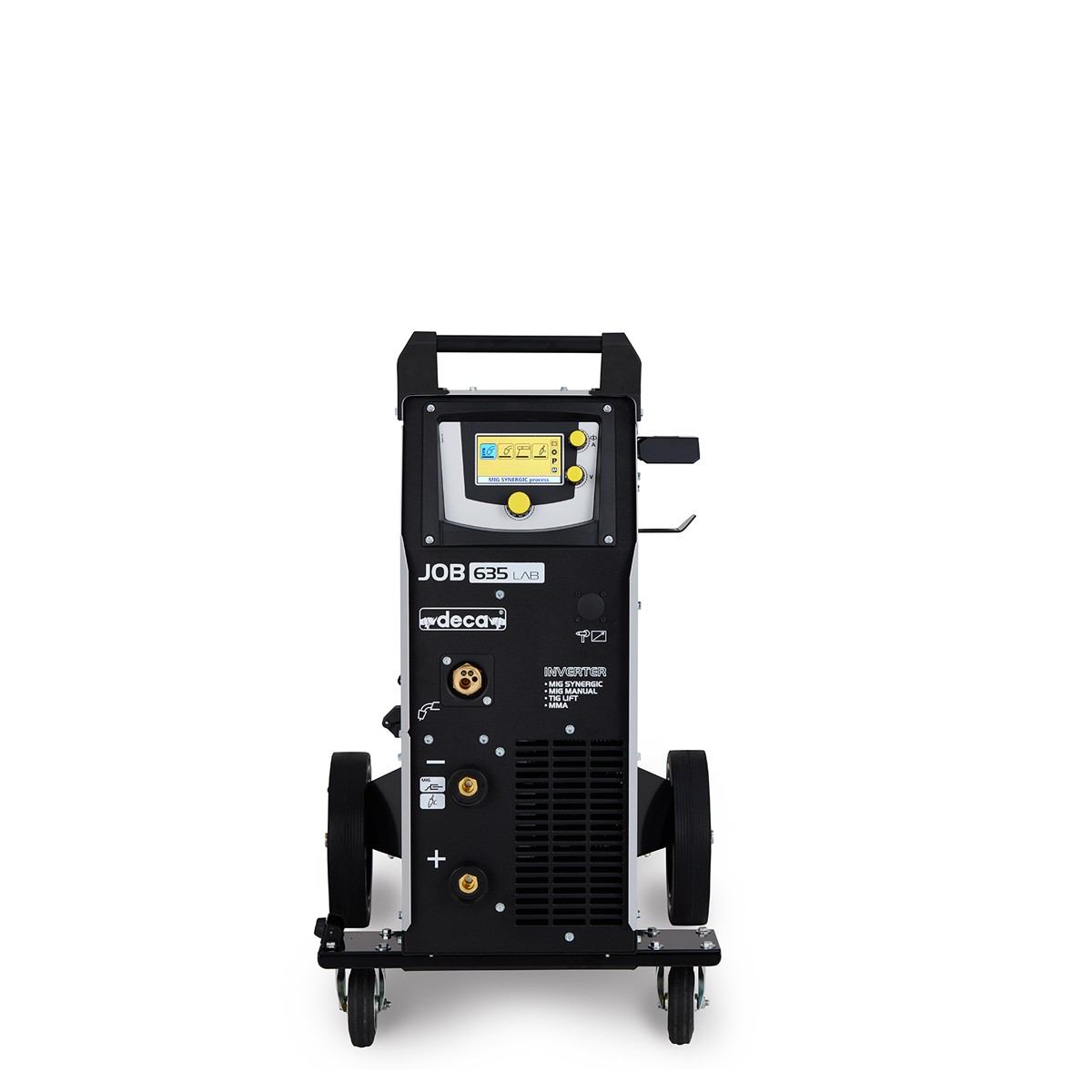

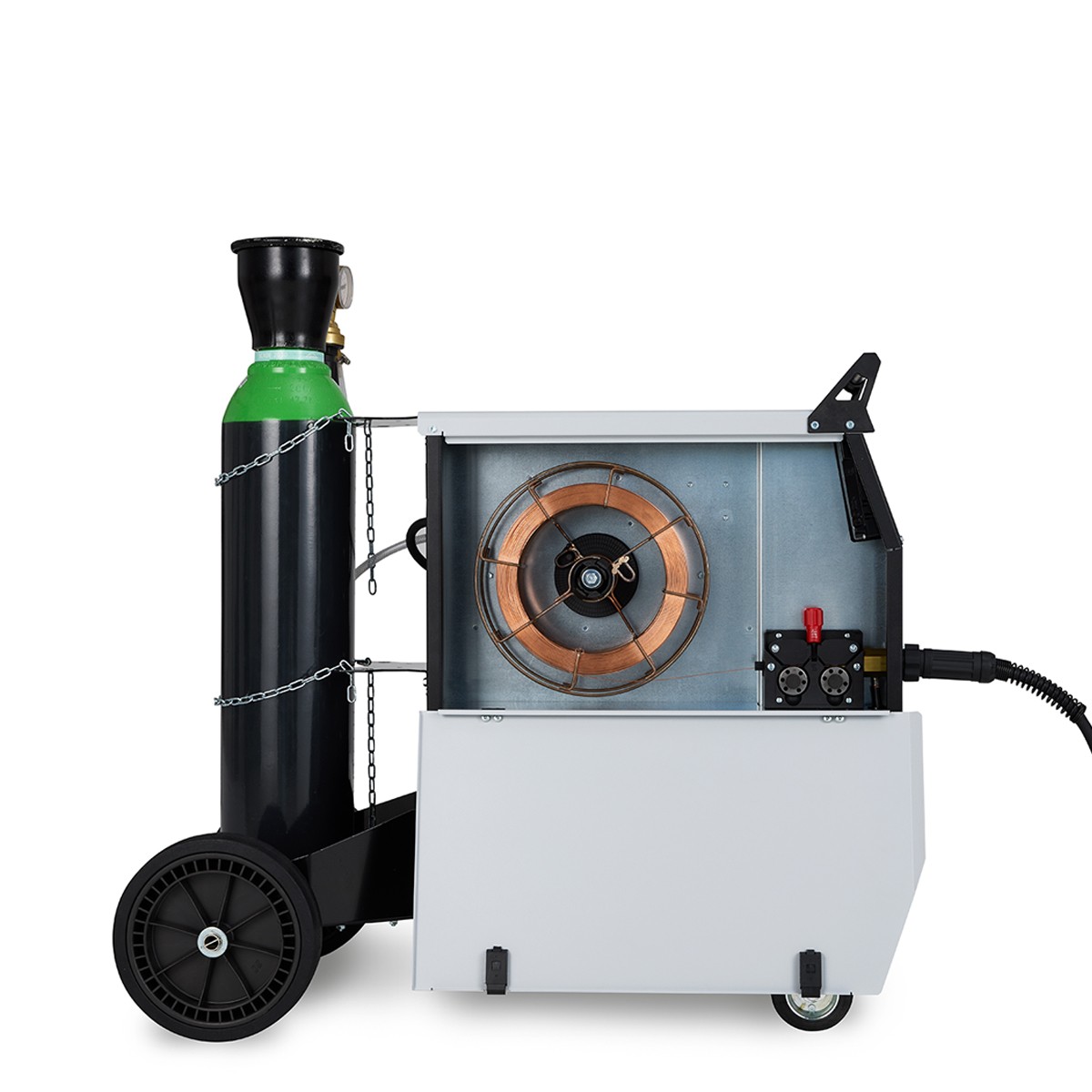

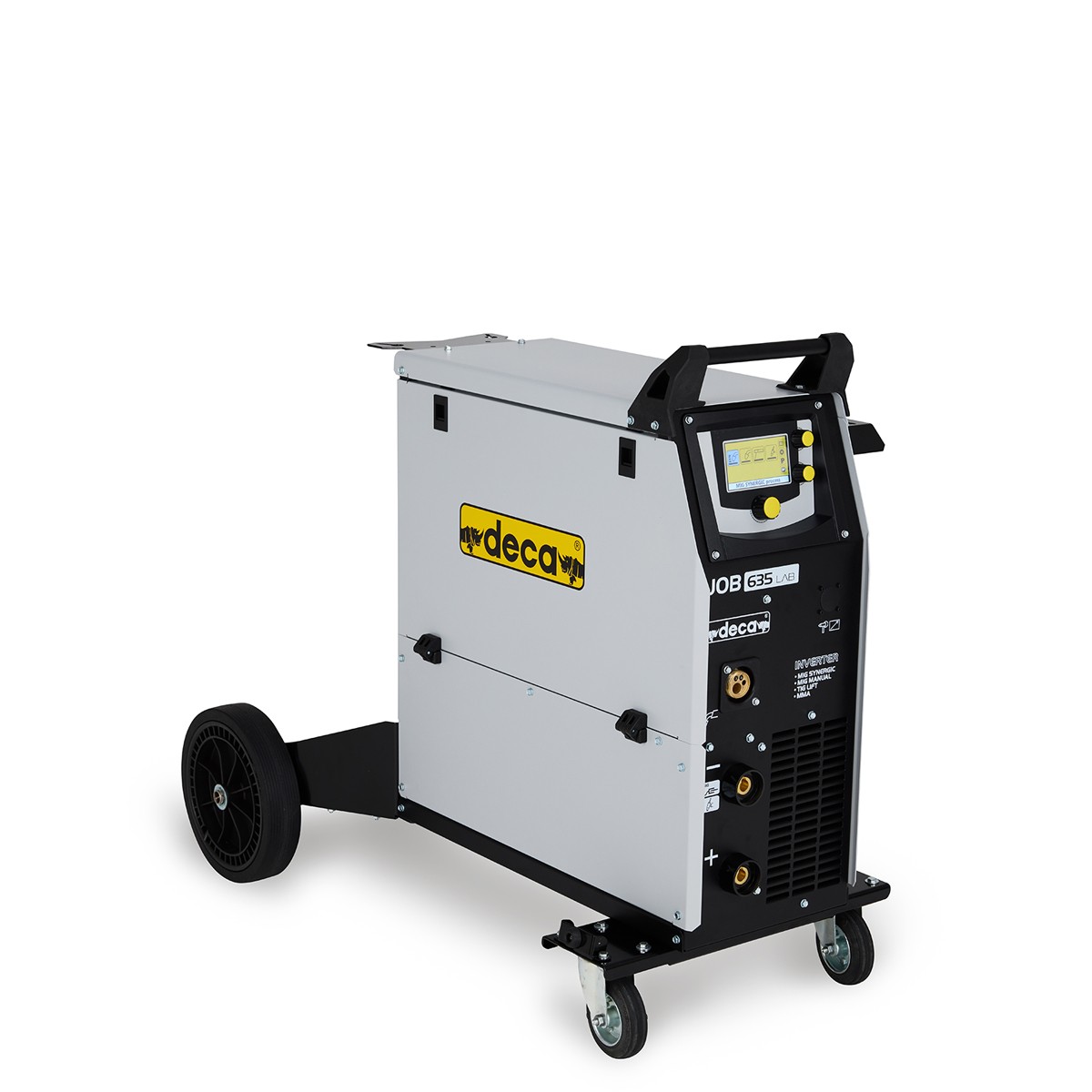

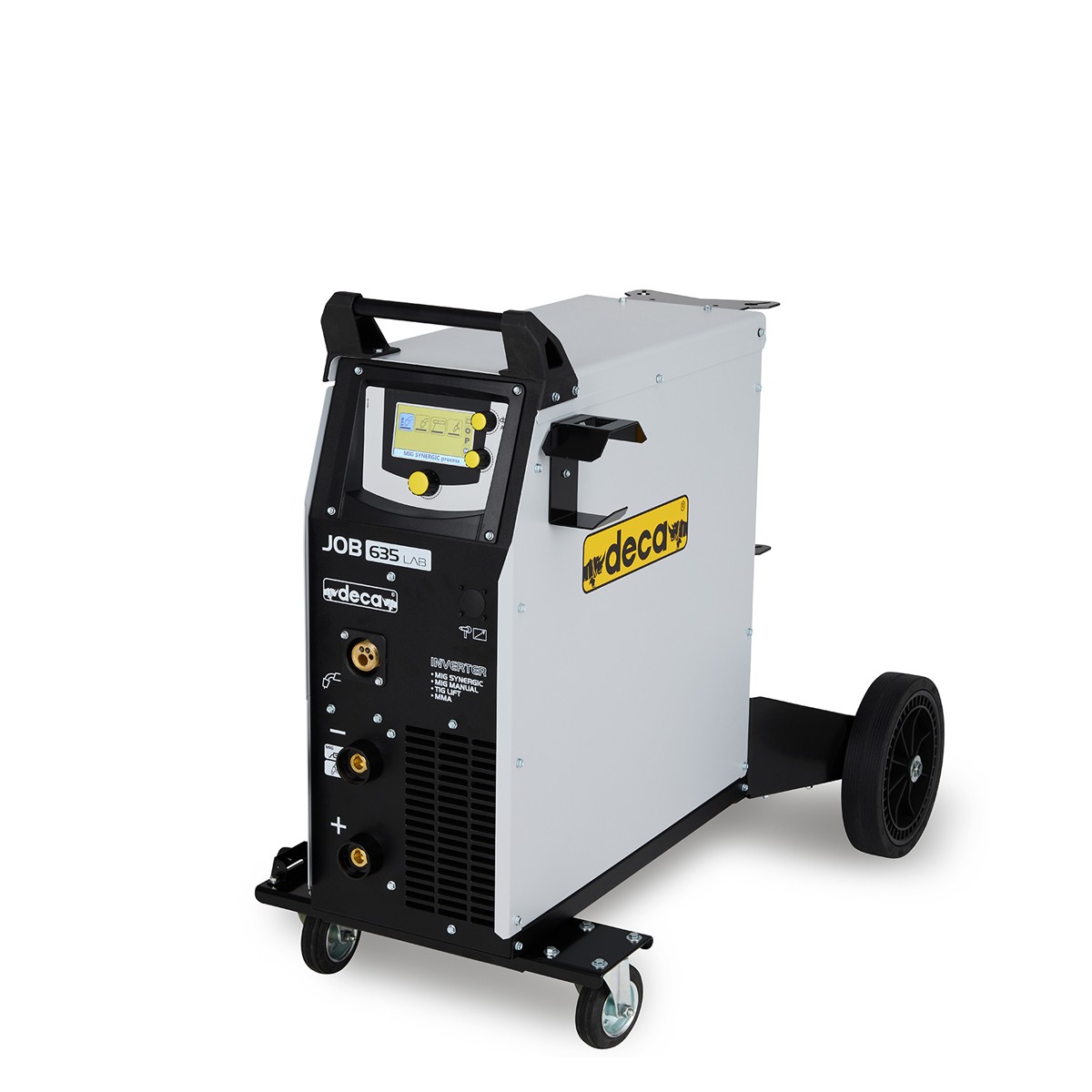

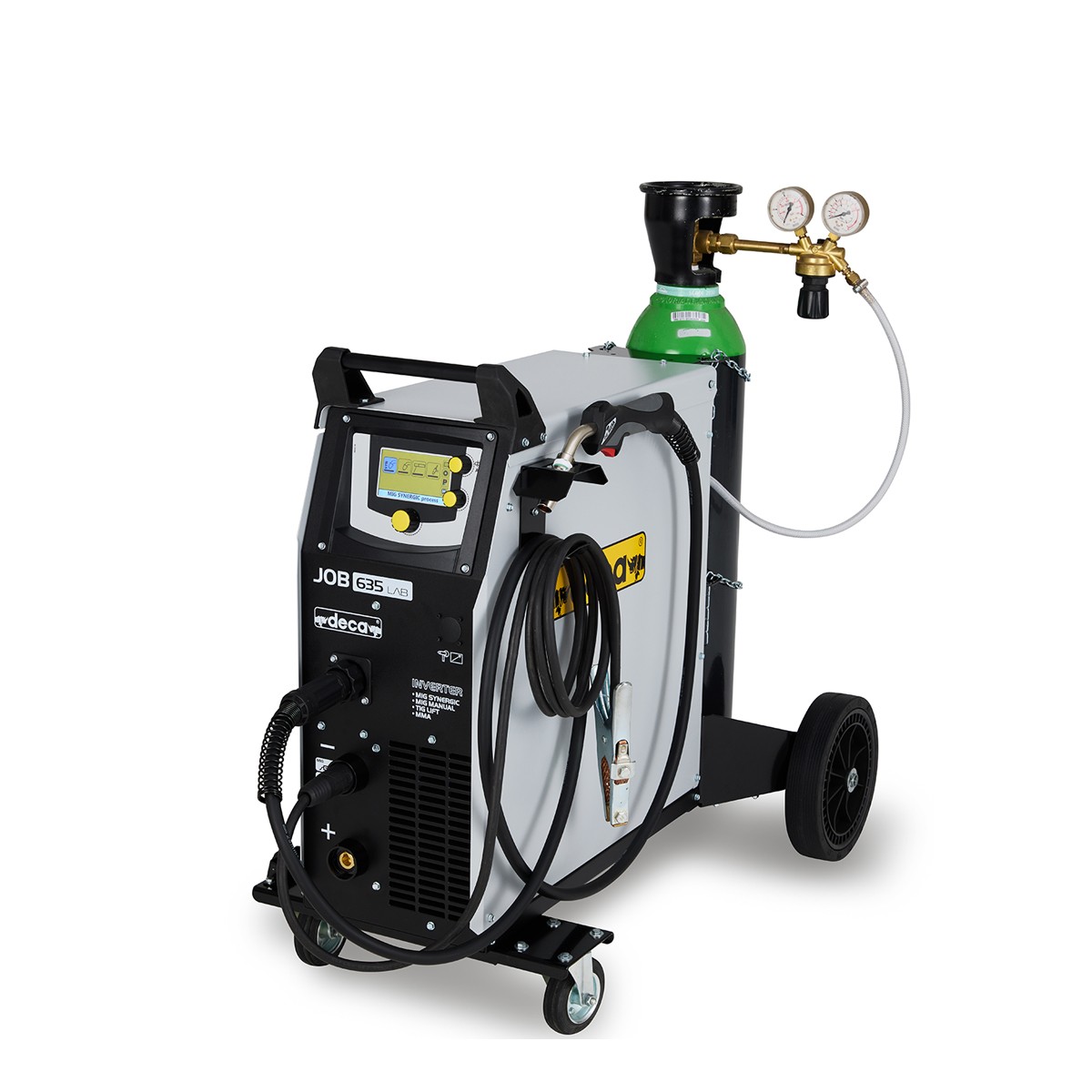

MIG / MAG INVERACT JOB 635 Lab 230V / F1 with ACC.
DESCRIPTION
Job 635 Lab supplies 330 AMPERIOS of DC Continue (CC). Tension Feeding is three-phase 230/400 volts (self-adjusting).
Job 635 Lab offers three welding processes always by hand: Mig / Mag, MMA and TIG LIFT.
In Mig / MAG mode, Job 635 Lab is perfect for steel welding, stainless steel, Aluminum and to use strong welding wires and tubular threads. The Synergistic control is extremely effective.
DESCARGAR FICHA TÉCNICA
383264000.pdf
Mi Descargar ficha técnica del producto 383264000
* Taxes and transport excluded
| Alimentación | 230V-400V/F3 |
|---|---|
| Power consumed: 60% / max. | 5.5-7 / 7-10 kW |
| Fusible | 16 Amp. |
| Generador compatible | 10/15 kW / kva. |
| Regulación de soldar | 10 - 220 MIG-TIG / 10-160 MMA AMP. |
| Servicio EN60974-1 (40ºC) | MIG-TIG 300A-35% / MMA 250A-35% MIG-TIG 250A-60% / MMA 220A-60% (* 400V) AMP. |
| Tensión en vacío | 58/61 Volt. |
| Diámetro hilo acero | 0.6 - 0.8 - 1.0 - 1.2 mm. |
| Diameter thread stainless steel. | 0.8 - 1.0 mm. |
| Diameter thread aluminum | 0.8 - 1.0 - 1.2 mm. |
| Diameter tubular thread | 1.2 mm. |
| Ø Bobina hilo | 200 - 300 mm. |
| Electrodos utilizables | MMA 1.6-5.0 / tig 1.0-4.0 Ø mm. |
| Connector Dinse | 50 mm. |
| Antorcha EURO | SI |
| Peso Neto/Bruto | 49/61 kg. |
| Dimensión aparato | 986 x 556 x 833 mm. |
| Dimensiones embalaje | 800 x 400 x 770 mm. |
