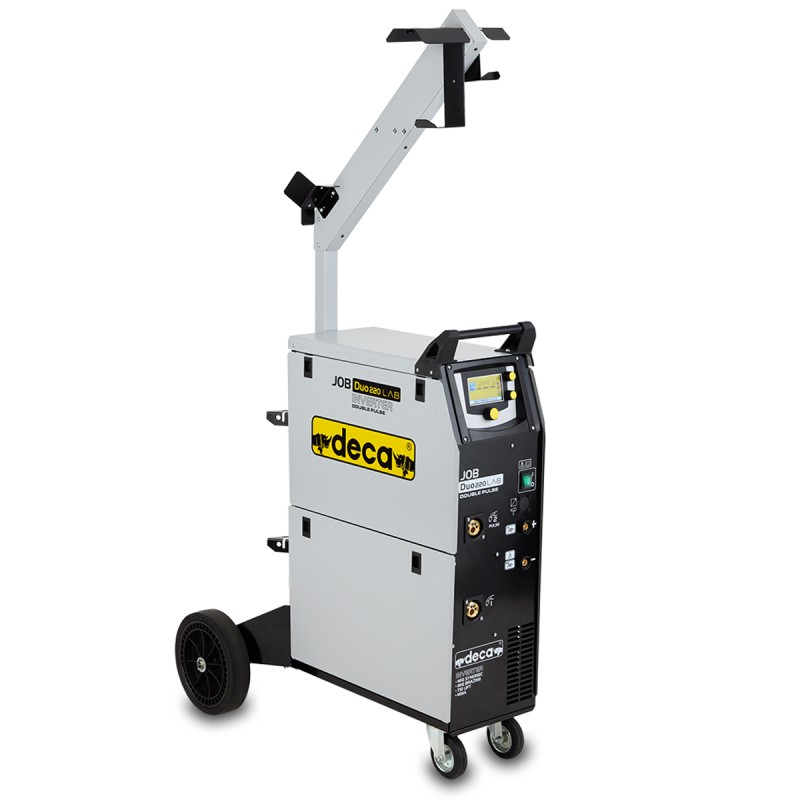

MIG / MAG INVERACT JOB DUO 220 LAB 230V / F1 with ACC.
DESCRIPTION
Multiprocess generator Sinnergistic Mig / Mag welded and double pressed with two torches. Dedicated to body work, for exceptional results in aluminum of low thickness and stainless steel.
Job Duo 220 Lab is equipped with two welding torches simultaneously Steel, aluminum or strong welding (CUSI3 / EQU8).
Simply press the button on one of the torches to recover the program of Welding configured.
MIG / MAG pressed and double-pressed for steel welding, stainless steel, aluminum and for the use of strong welding wires.
DESCARGAR FICHA TÉCNICA
383250900.pdf
Mi Descargar ficha técnica del producto 383250900
* Taxes and transport excluded
| Alimentación | 230V/F1 |
|---|---|
| Power consumed: 60% / max. | 3.3 / 6.3 kW |
| Fusible | 25 AMP. |
| Generador compatible | 9 kW / kva. |
| Regulación de soldar | 10 - 220 MIG-TIG / 10-160 MMA AMP. |
| Servicio EN60974-1 (40ºC) | MIG-TIG 220A-20% / MMA 160A-30% MIG-TIG 140A-60% / MMA 130A-60% AMP. |
| Tensión en vacío | 88 Volt. |
| Diámetro hilo acero | 0.6 - 0.8 - 1.0 mm. |
| Diameter thread stainless steel. | 0.8 - 1.0 mm. |
| Diameter thread aluminum | 0.8 - 1.0 - 1.2 mm. |
| Ø Bobina hilo | 200 - 300 x 2 mm. |
| Electrodos utilizables | MMA 1,6-4,0 / TIG 1.0-3.2 Ø mm. |
| Connector Dinse | 25 mm. |
| Antorcha EURO | If x 2 |
| Peso Neto/Bruto | 48.5 / 55.5 kg. |
| Dimensión aparato | 860 x 560 x 1000 mm. |
| Dimensiones embalaje | 795 x 300 x 830 mm. |
