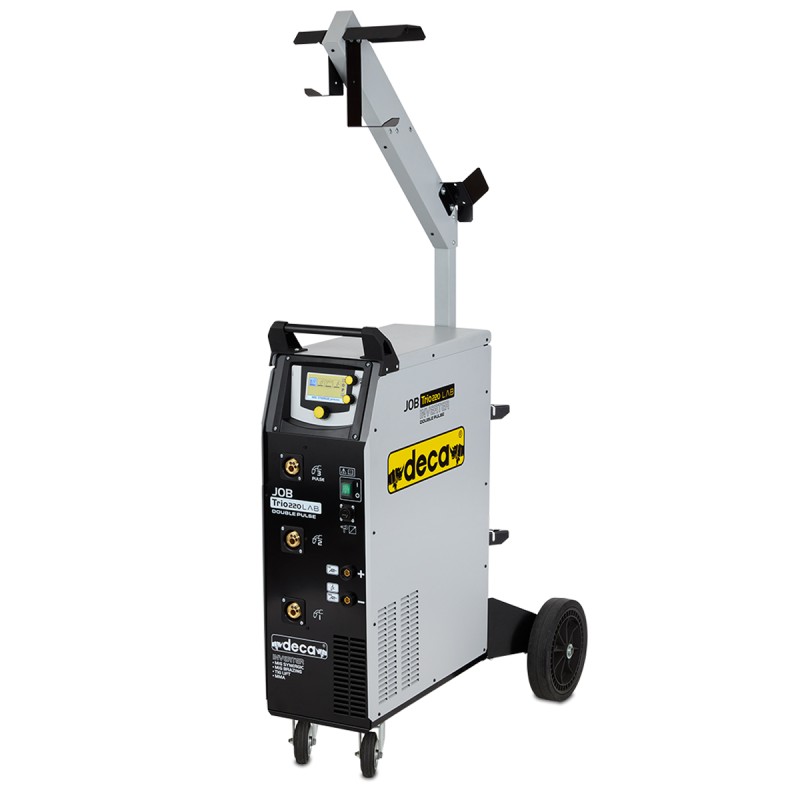

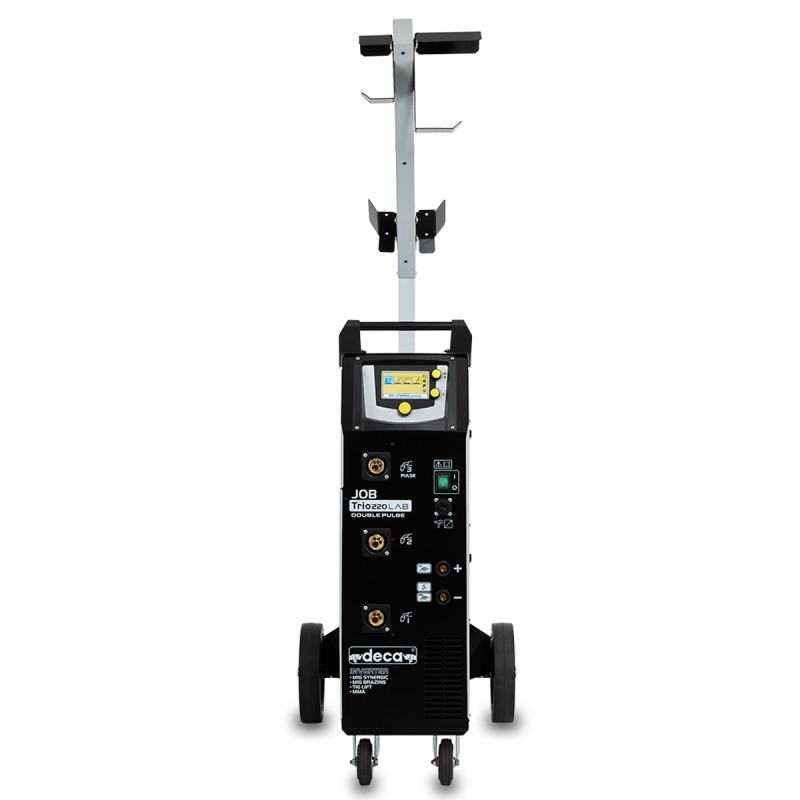

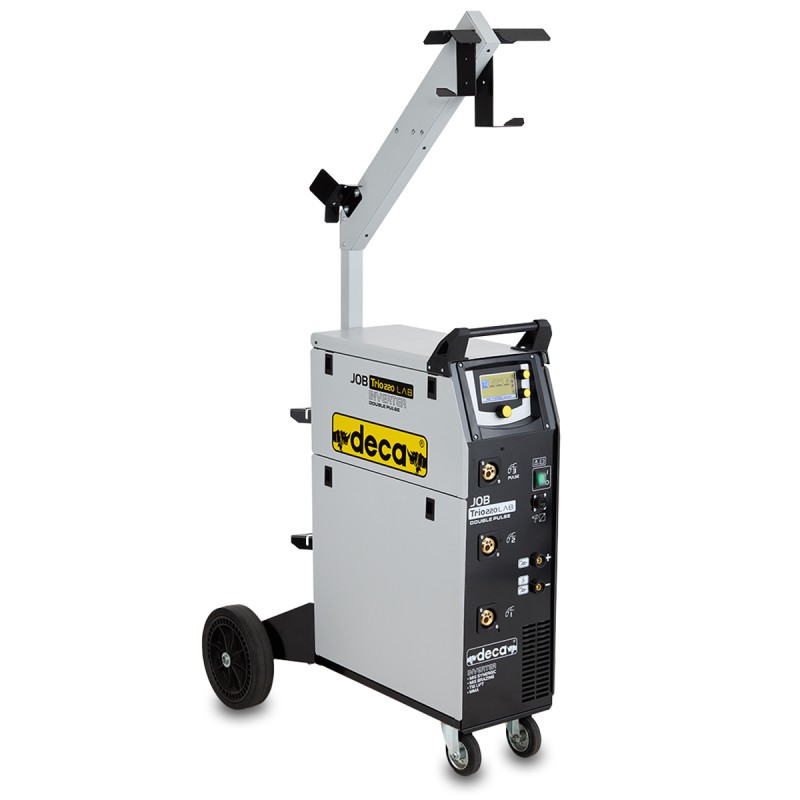

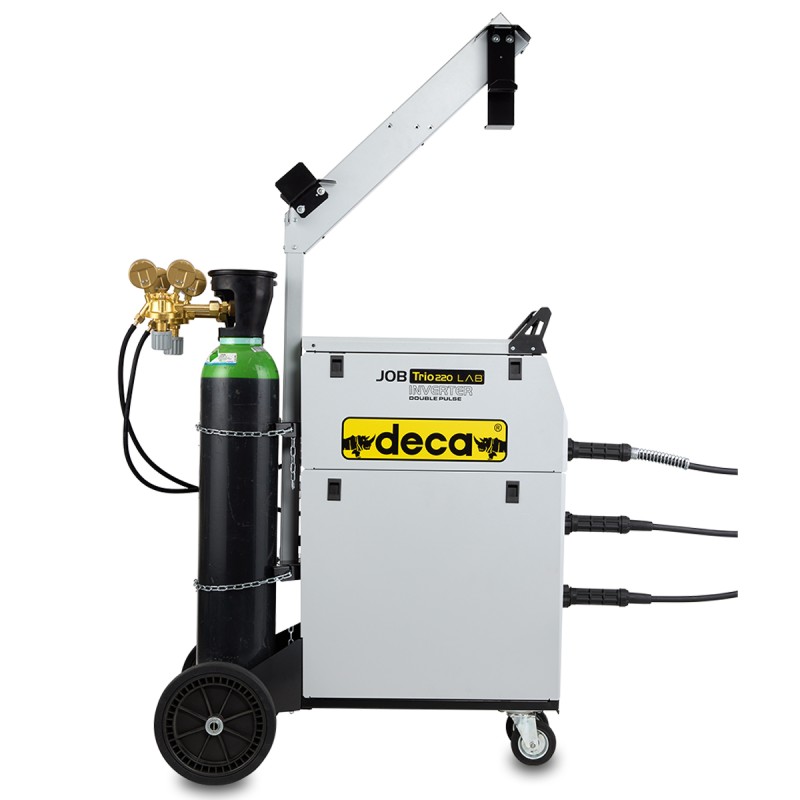

MIG / MAG INVERACT JOB TRIO 220 LAB 230V / F1 with ACC.

Name: MIG / MAG INVERACT JOB TRIO 220 LAB 230V / F1 with ACC.
Brand: DECA
SKU: 383250600

Referencia 383250600 Category MIG-MAG INVERTER Brand DECA

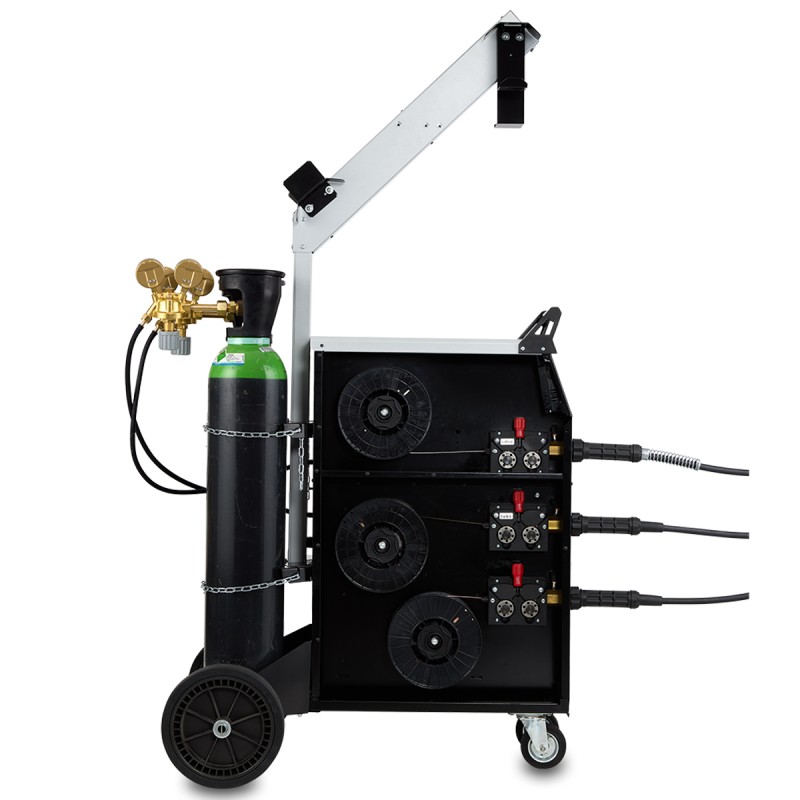

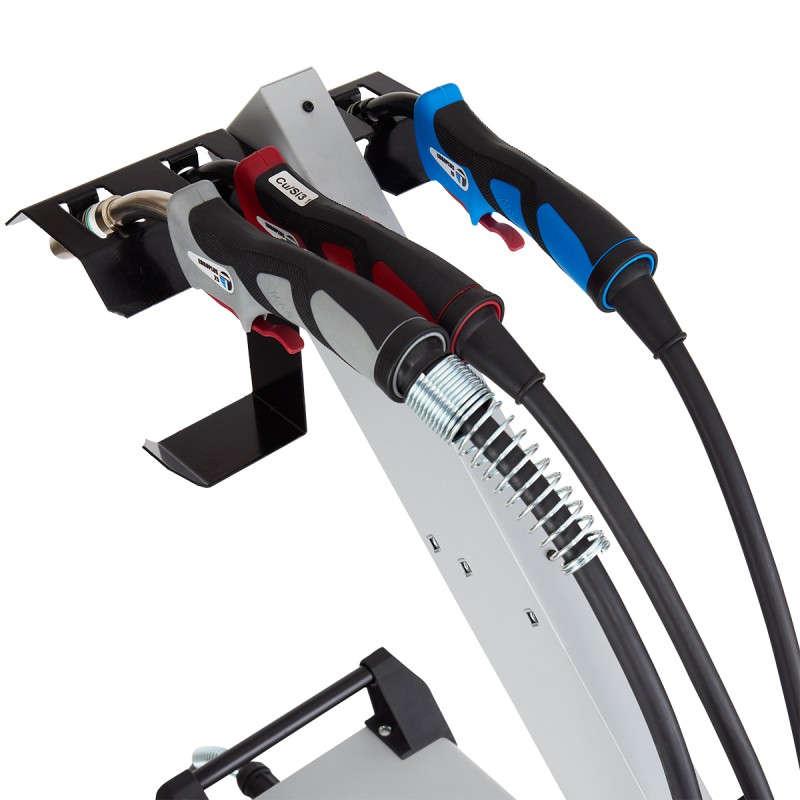

Job Trio 220 Lab is equipped with 3 welding torches simultaneously Steel, aluminum or strong welding (CUSI3 / EQU8).

Simply press the button on one of the torches to recover the program Welding set.

Job Trio 220 Lab supplies 220 amps in continuous current (CC). Tension Feeding is single-phase 230 volt.

Job Trio 220 Lab offers 3 welding processes always by hand: Mig / Mag, MMA and TIG LIFT.

383250600.pdf

Mi Descargar ficha técnica del producto 383250600

* Impuestos y transportes excluidos

Feed	230v / f1
Power consumed: 60% / max.	3.3 / 6.3 kW
Fuse	25 AMP.
Compatible generator	9 kW / kva.
Welding regulation	10 - 220 MIG-TIG / 10-160 MMA AMP.
EN60974-1 Service (40oC)	MIG-TIG 220A-20% / MMA 140A-30% MIG-TIG 140A-60% / MMA 130A-60% AMP.
Vacuum tension	85 Volt.
Diameter thread steel	0.6 - 0.8 - 1.0 mm.
Diameter thread stainless steel.	0.8 - 1.0 mm.
Diameter thread aluminum	0.8 - 1.0 - 1.2 mm.
Coil thread	200 - 300 x 3 mm.
Usable electrodes	MMA 1,6-4,0 / TIG 1.0-3.2 Ø mm.
Cinch connector	25 mm.
Euro torch	If x 3
Net / crude weight	50/59 kg.
Dimension	860 x 560 x 1000 mm.
Dimensions packaging	795 x 300 x 830 mm.
