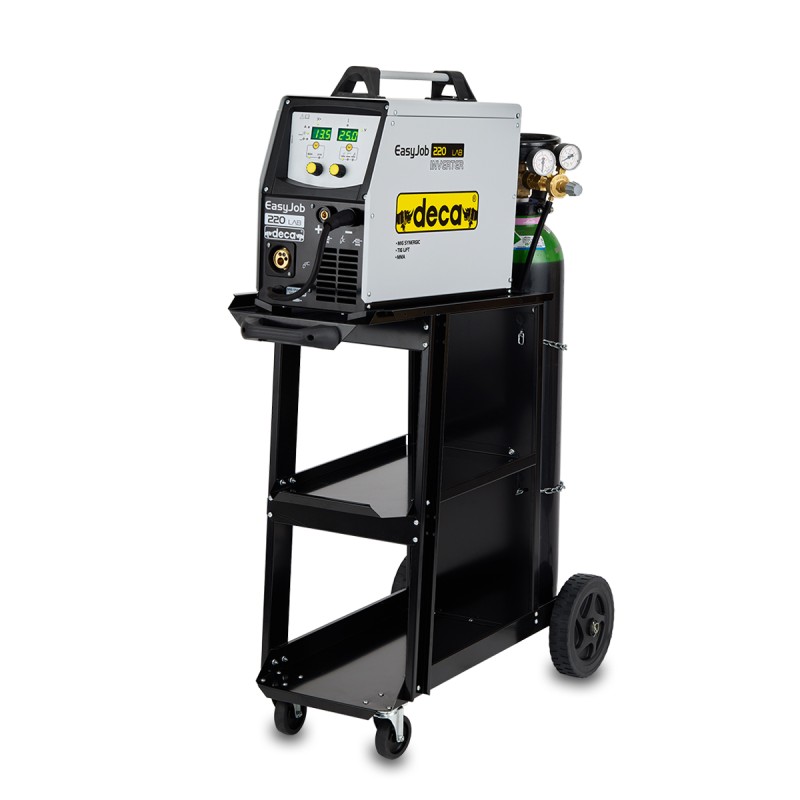

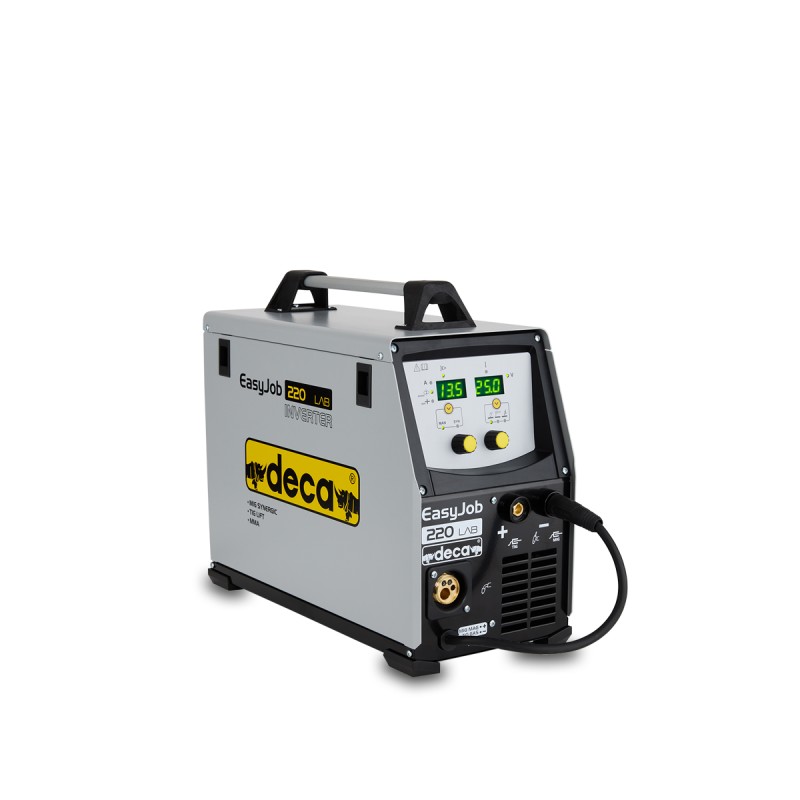

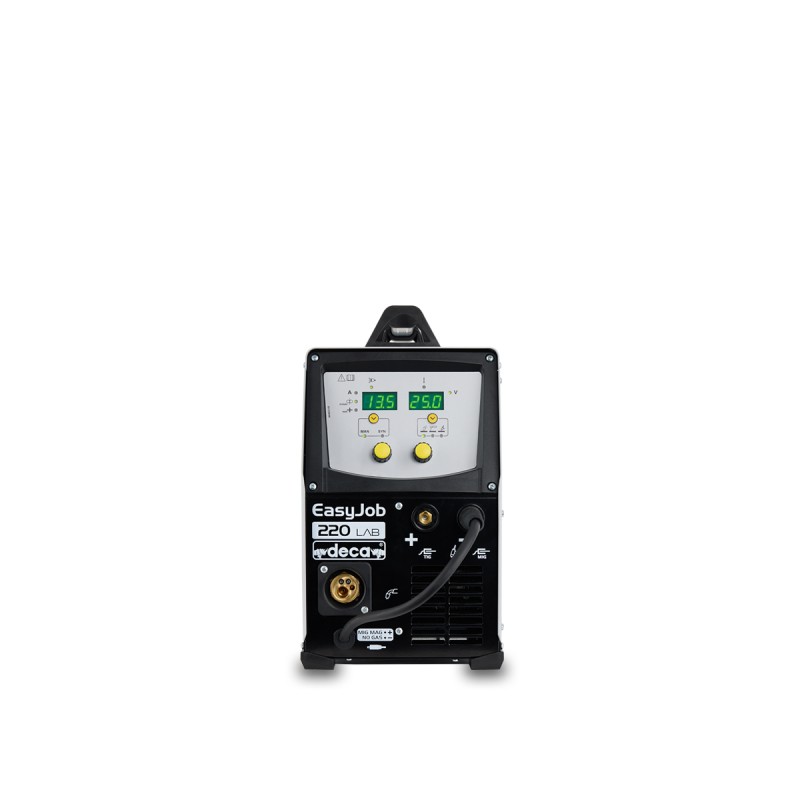

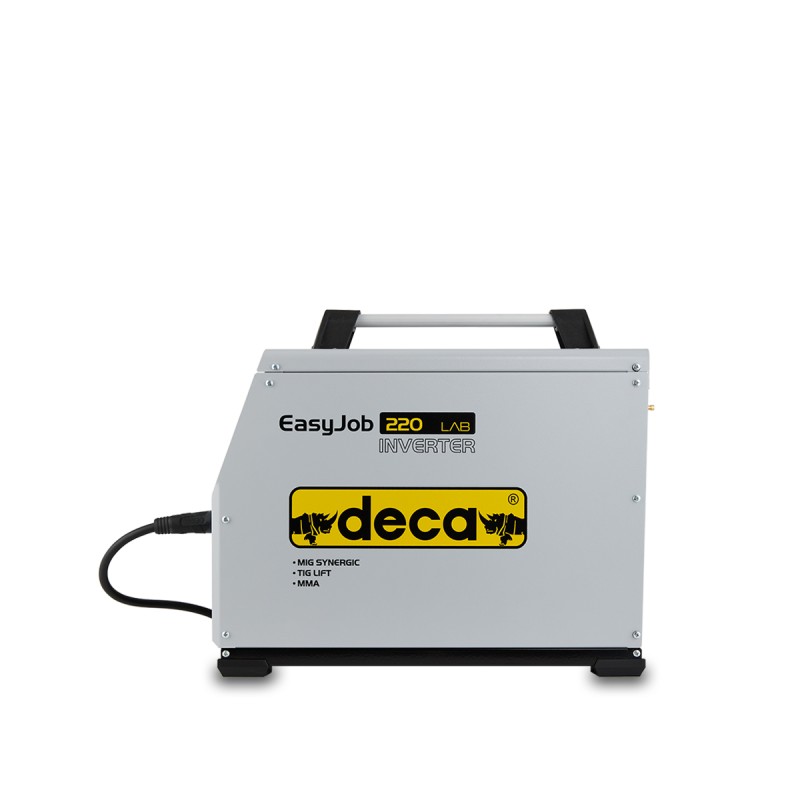

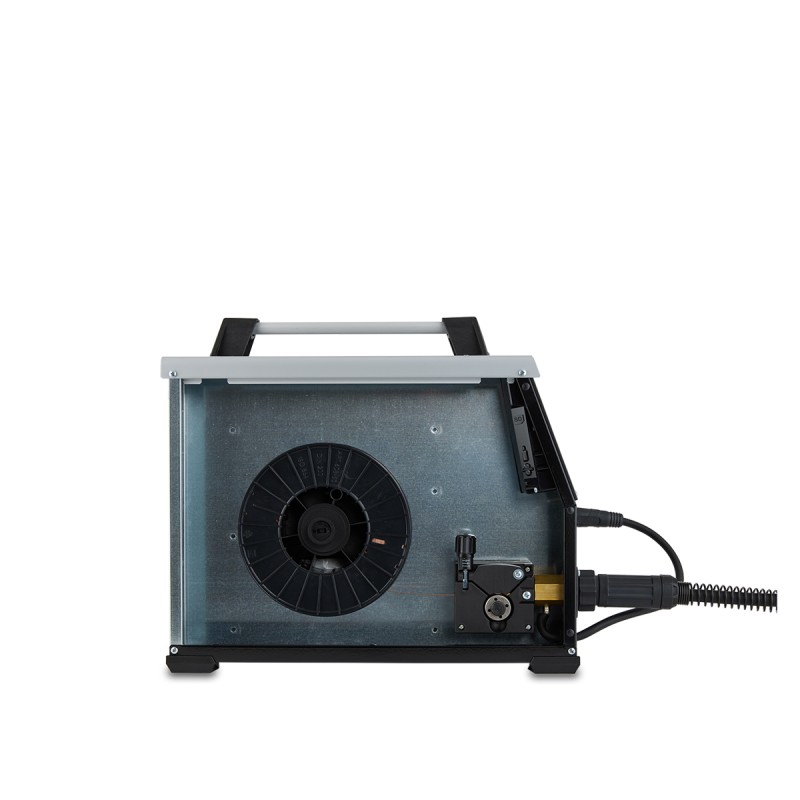

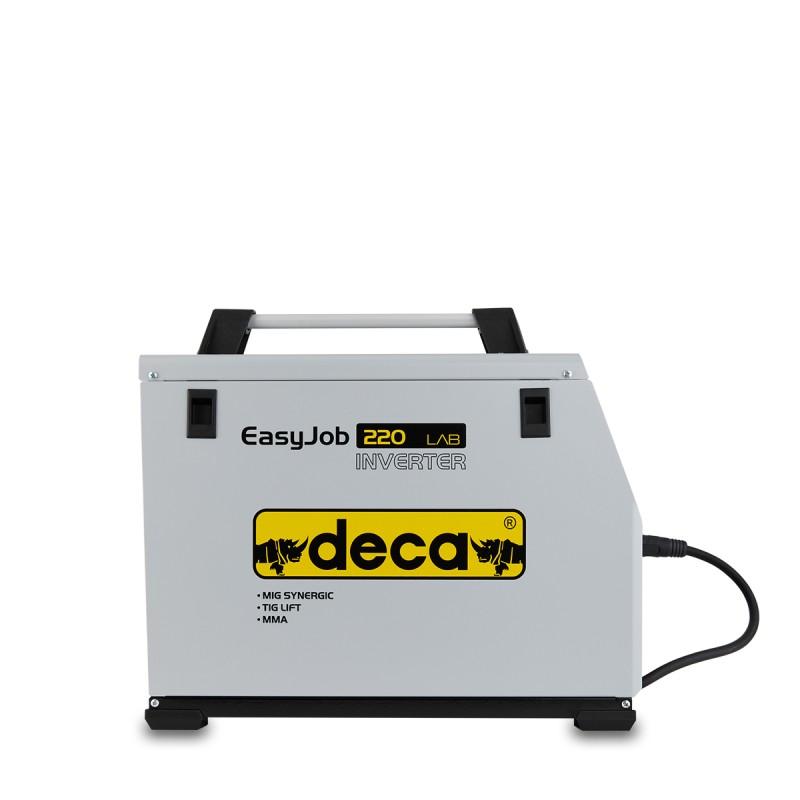

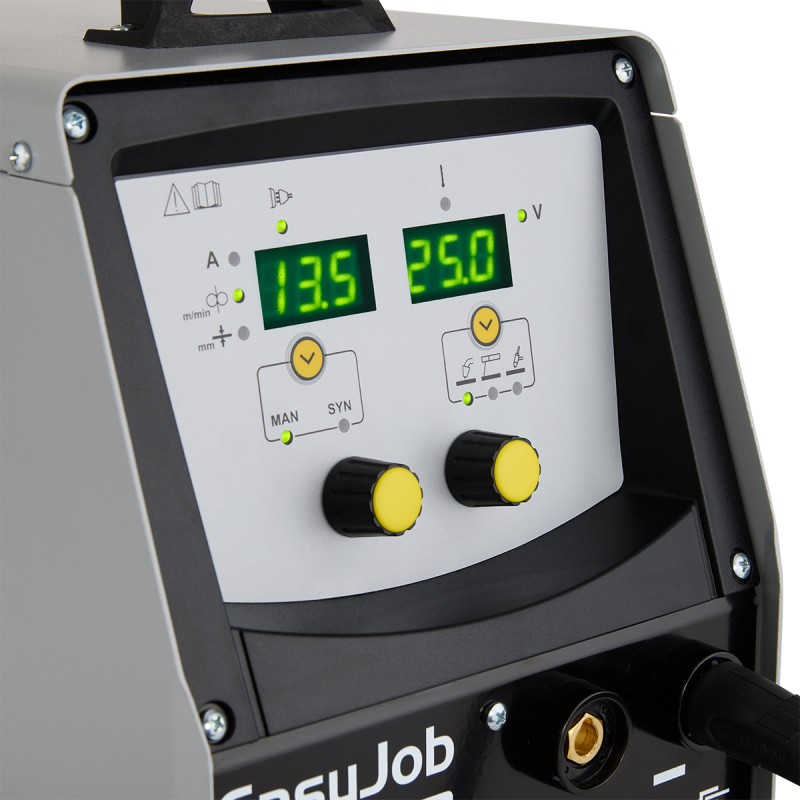

MIG / MAG INVERTER EASY JOB 220 LAB 230V / F1 with ACC.
DESCRIPTION
EasyJob 220 Lab is the perfect synergistic multiprocess multiprocess solder for any
Garage and well-equipped workshop.
Is the ideal welder for professional craftsman who needs different processes of Welding for small repairs outdoors and interiors.
EasyJob 220 Lab supplies 200 amps in continuous current (CC).
The supply voltage is single-phase 230 volts.
Low energy consumption It allows its use even with reduced or connected power-up power
(See Technical Data Table).DESCARGAR FICHA TÉCNICA
383246000.pdf
Mi Descargar ficha técnica del producto 383246000
* Taxes and transport excluded
| Alimentación | 230V/F1 |
|---|---|
| Power consumed: 60% / max. | 2.8 / 4.5 kW |
| Fusible | 16 Amp. |
| Generador compatible | 7 kW / kVA. |
| Regulación de soldar | 10 - 200 MIG-TIG / 10-160 MMA AMP. |
| Servicio EN60974-1 (40ºC) | MIG-TIG 180A-25% / MMA 150A-25% MIG-TIG 100A-60% / MMA 100A-60% AMP. |
| Tensión en vacío | 86 Volt. |
| Diámetro hilo acero | 0.6 - 0.8 - 1.0 mm. |
| Diameter thread stainless steel. | 0.8 - 1.0 mm. |
| Diameter thread aluminum | 0.8 - 1.0 - 1.2 mm. |
| Diameter tubular thread | 0.8 - 0.9 - 1.2 mm. |
| Ø Bobina hilo | 100 - 200 mm. |
| Electrodos utilizables | MMA 1,6-4.0 / TIG 1.0-4.0 Ø mm. |
| Connector Dinse | 25 mm. |
| Antorcha EURO | SI |
| Peso Neto/Bruto | 11/14.8 kg. |
| Dimensión aparato | 500 x 228 x 415 mm. |
| Dimensiones embalaje | 580 x 270 x 420 mm. |
