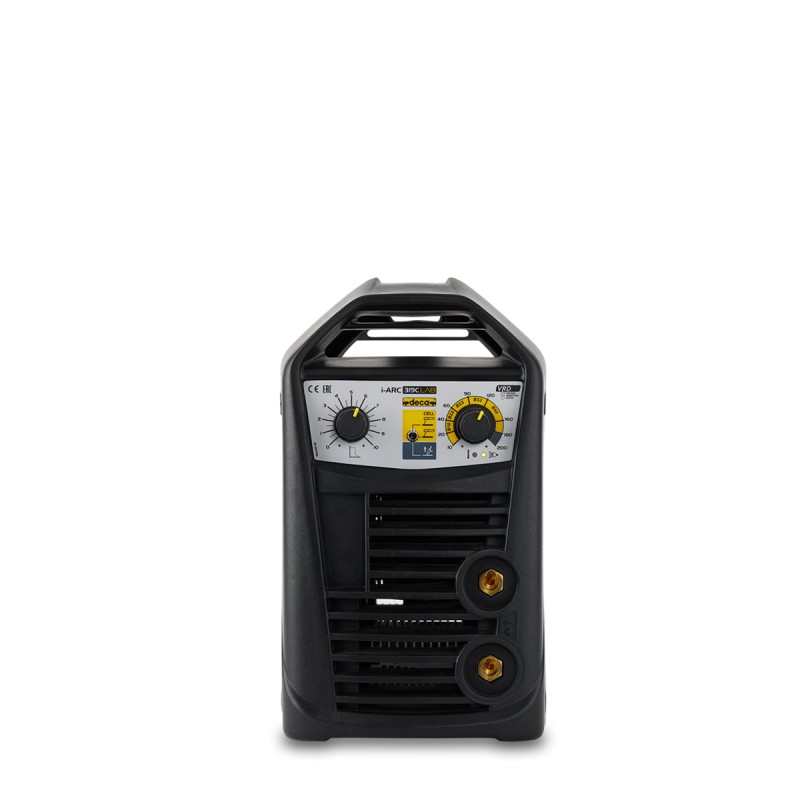

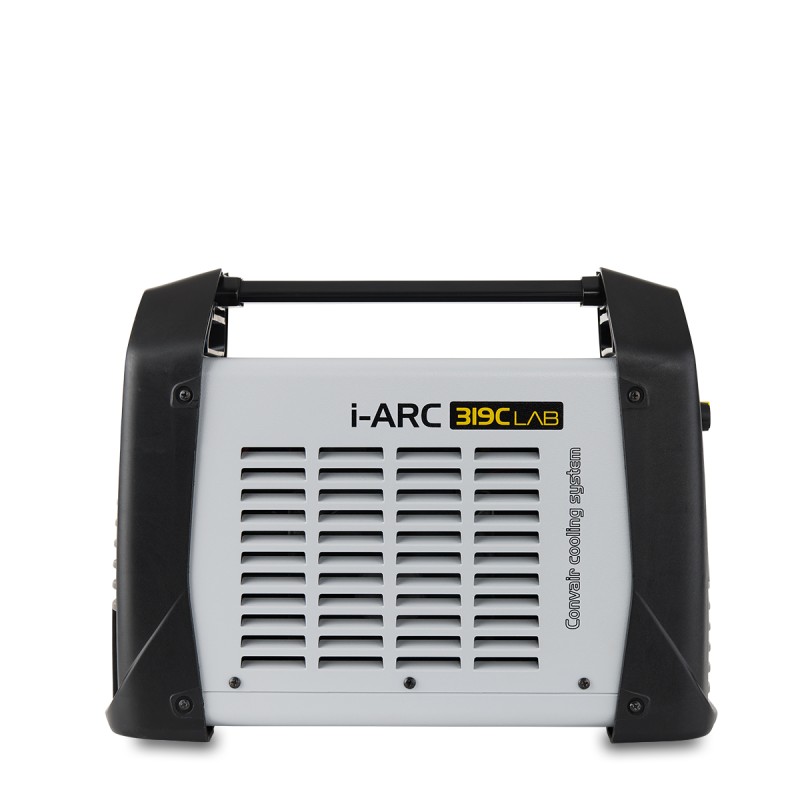

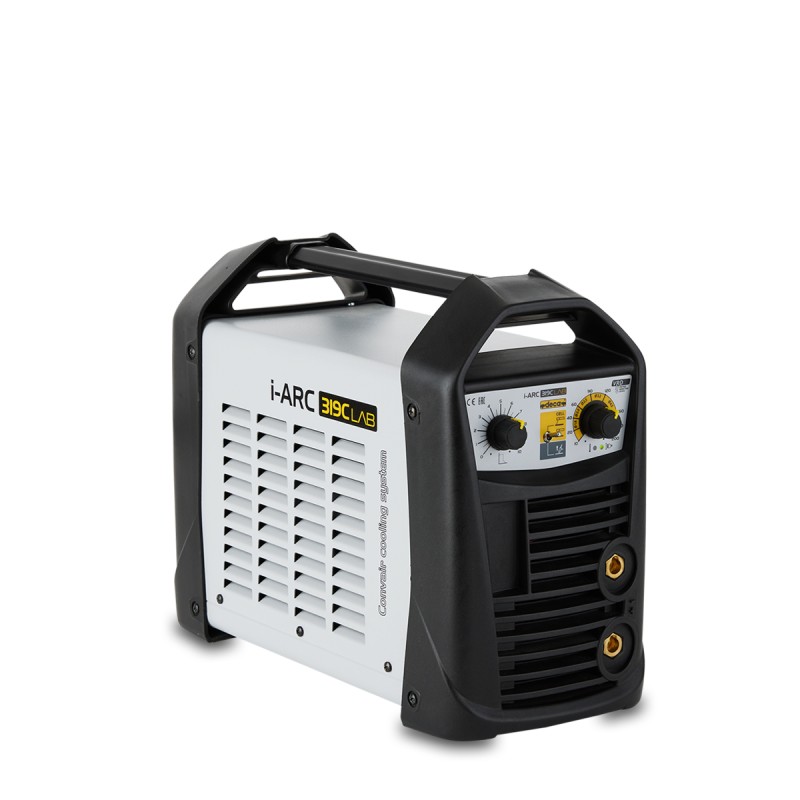

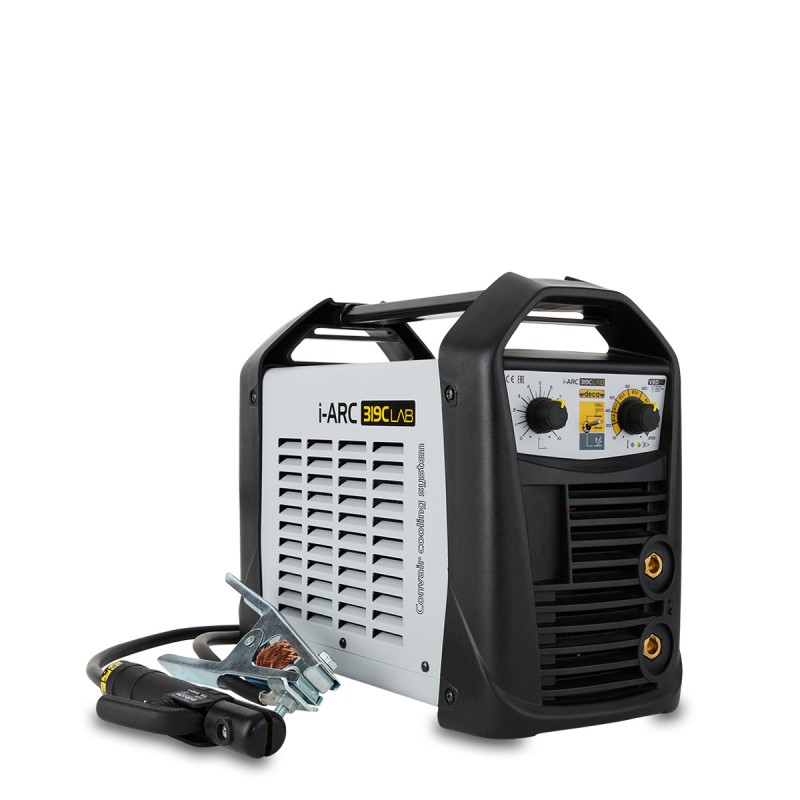

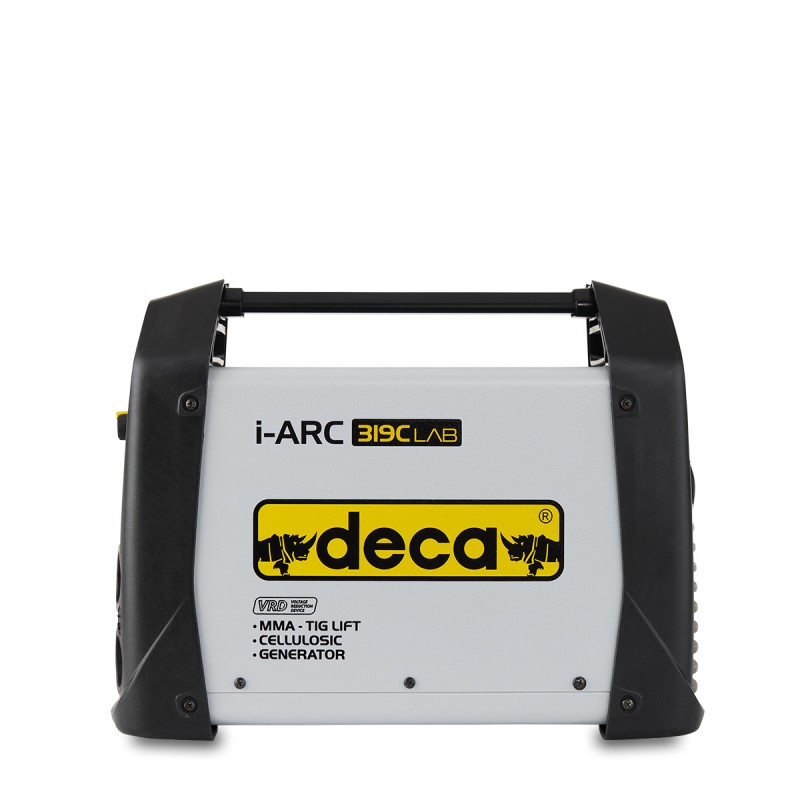

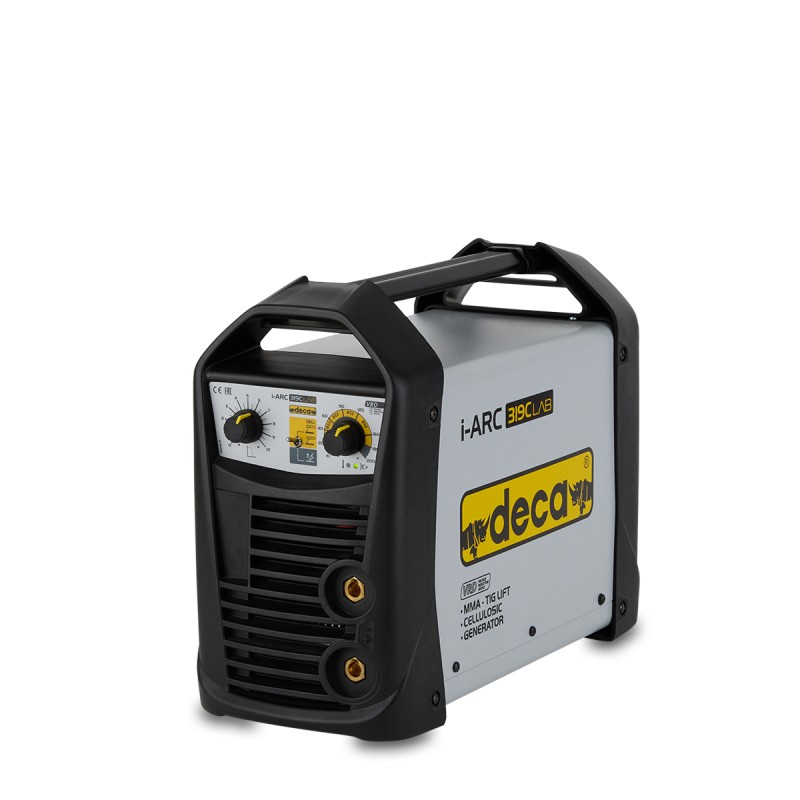

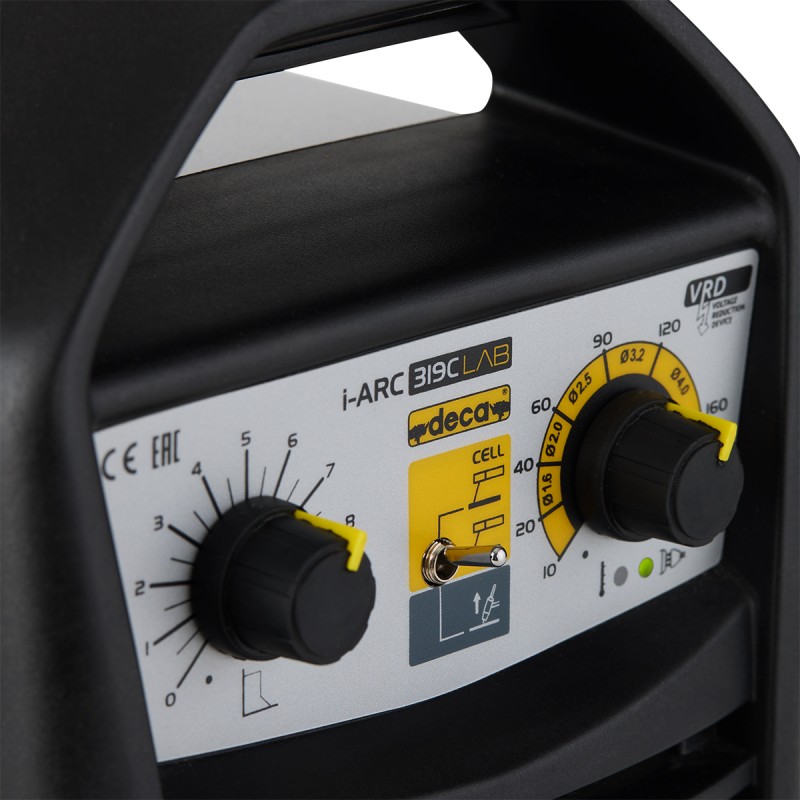

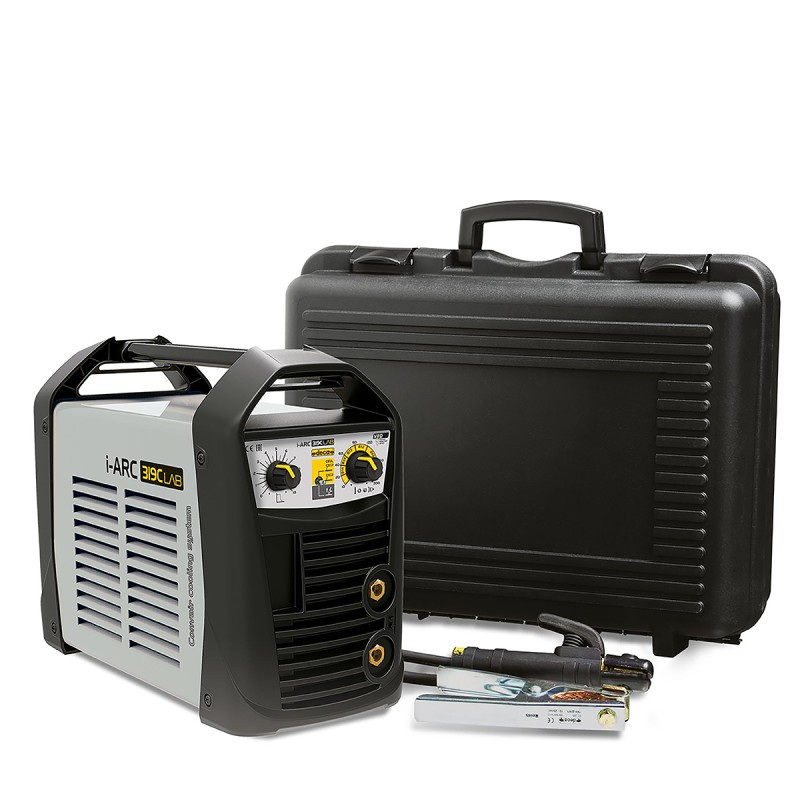

Inverter MMA I-ARC 319C Lab 230V / F1 with Acc.And suitcase
DESCRIPTION
MMA single-phase electrode inverter solder and TIG LIFT ideal for cellulose electrodes.
I-ARC 319C Lab is suitable for both workshop and outdoor use: it is the machine
Ideal for maintenance. It is also ideal for welding with electrodes coated with
Pipe cellulose in all positions and with low runs. It offers excellent
Shooting properties and a stable arc.DESCARGAR FICHA TÉCNICA
381286280.pdf
Mi Descargar ficha técnica del producto 381286280
* Taxes and transport excluded
| Alimentación | 230V/F1 |
|---|---|
| Power consumed: 60% / max. | 3.3 / 5.6 kW |
| Fusible | 20 AMP. |
| Generador compatible | 7 kW / kVA. |
| Regulación de soldar | MMA 10 - 180 / TIG 10 - 200 AMP. |
| 20th Service | 180A - 67% |
| Servicio EN60974-1 (40ºC) | MMA 180A - 20% / TIG 200A - 20% AMP. |
| Tensión en vacío | 105 Volt. |
| Electrodos utilizables | MMA 1,6-4 / TIG 1-4 Ø mm. |
| Connector Dinse | 25 mm. |
| Peso Neto/Bruto | 5.6 / 9.65 kg. |
| Dimensión aparato | 365 x 160 x 273 mm. |
| Dimensiones embalaje | 490 x 200 x 390 mm. |
