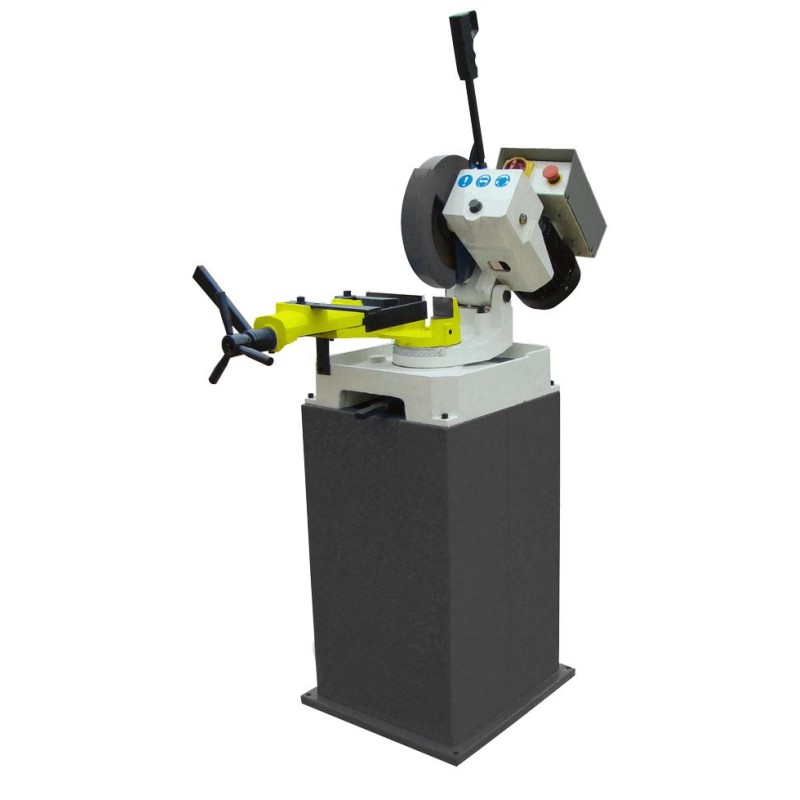

HSS BF-250-M2 * 230V / F1 + Pedestal 1V.
DESCRIPTION
Manual jaw Swivel head + 45º. Refrigerant pump. Low voltage switch. Disk protector, according to standards. Emergency switch Machines manufactured according to EC standards. Pedestal and Disc Included Series
DESCARGAR FICHA TÉCNICA
421325100.pdf
Mi Descargar ficha técnica del producto 421325100
* Taxes and transport excluded
| Alimentación | 230V/F1 |
|---|---|
| Potencia | 1.1 - 1.5 Kw-Hp |
| Velocidad1 | 42 r.p.m. |
| Cutting capacity 90° (redondo,rectangular, squared) | 60 / 75x45 / - mm. |
| Cutting capacity 45o (round, rectangular, squared) | 55 / 55x45 / - mm. |
| Vice opening | 100 mm. |
| Disc diameter | 250x2x32 mm. |
| Peso Neto/Bruto | 143/171 kg. |
| Dimensiones | 860x580x770 / 780x470x330 mm. |
