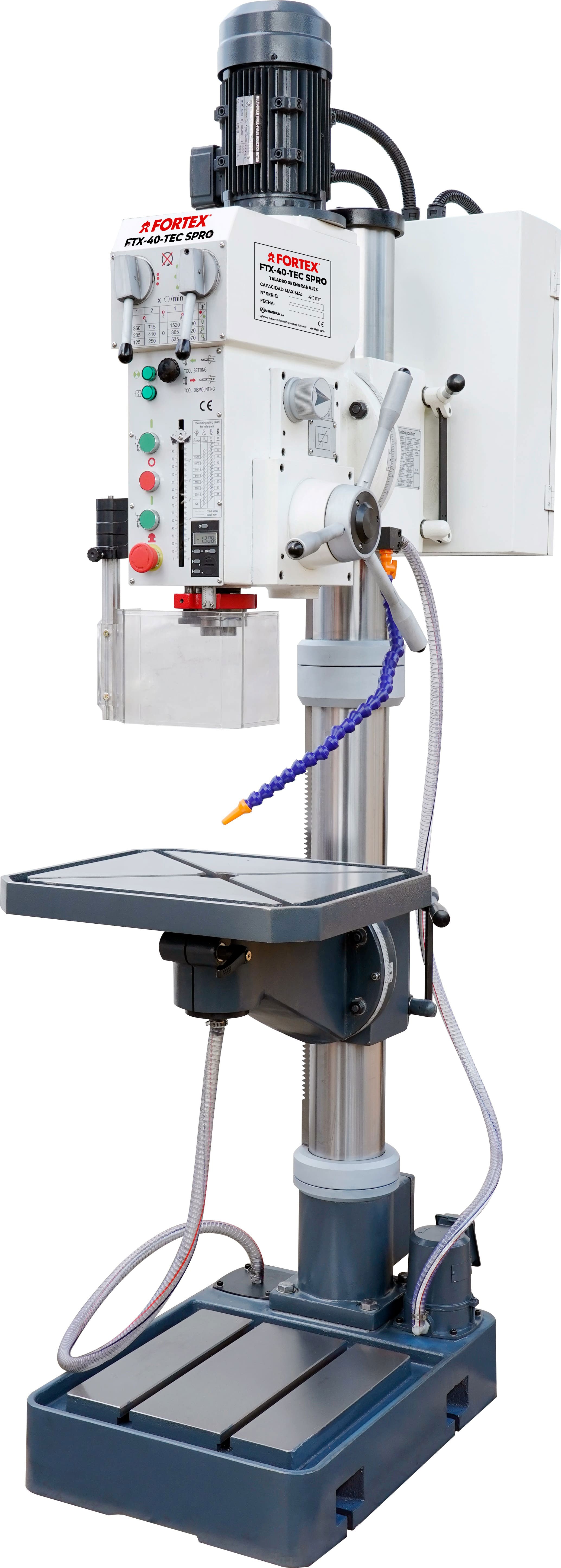

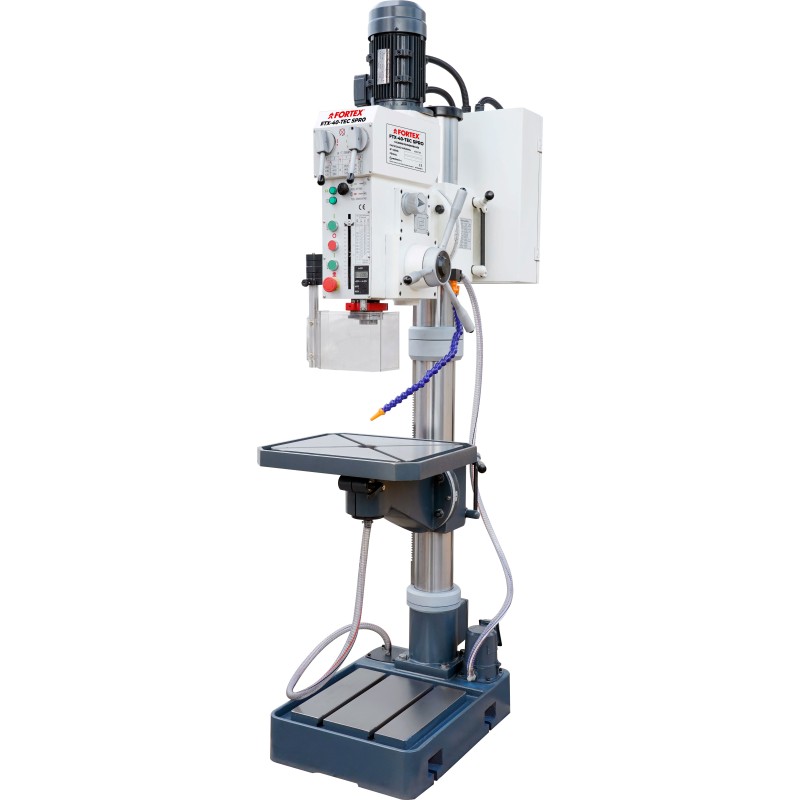

FTX-40-TEC SPRO * 400V/F3
DESCRIPTION
High precision milling drill equipped with silent gearbox and automatic spindle advance. It incorporates thread function, tiltable table ±45o and speed change via levers. It has turn inverter, electromagnetic clutch and cooling system. Manufactured in accordance with CE standards to ensure optimal safety and performance.
DESCARGAR FICHA TÉCNICA
441537000.pdf
Mi Descargar ficha técnica del producto 441537000
* Taxes and transport excluded
| Voltage | 400V/F3 |
|---|---|
| Power | 0.85/1.5 - 1.1/2 Kw-Hp |
| Transmission | Engranajes |
| Spindle speeds | 18 |
| Speed | 50 - 1450 m.p.m. |
| Drill bit max capacity | 40 mm. |
| Tapping capacity | M24 |
| Chuck-to-column distance | 350 mm. |
| Morse taper | MT4 |
| Max. travel spindle | 180 mm. |
| T Slot | 2X18, 2X18 mm. |
| Spindle-to-base distance | 1210 mm. |
| Spindle-to-table distance | 770 mm. |
| Max. travel of work table | 560 mm. |
| Diameter of column | 160 mm. |
| Base size | 730X500 mm. |
| Working table dimensions | 560X560 mm. |
| Table tilt | 45o |
| Spindle feed | 0.10/0.20 mm./r |
| Equipo refrigeración | YES |
| Total height | - mm. |
| Weight net-gross | 465 / 550 Kg. |
| Dimensions | 2290X630X1090 mm. |
