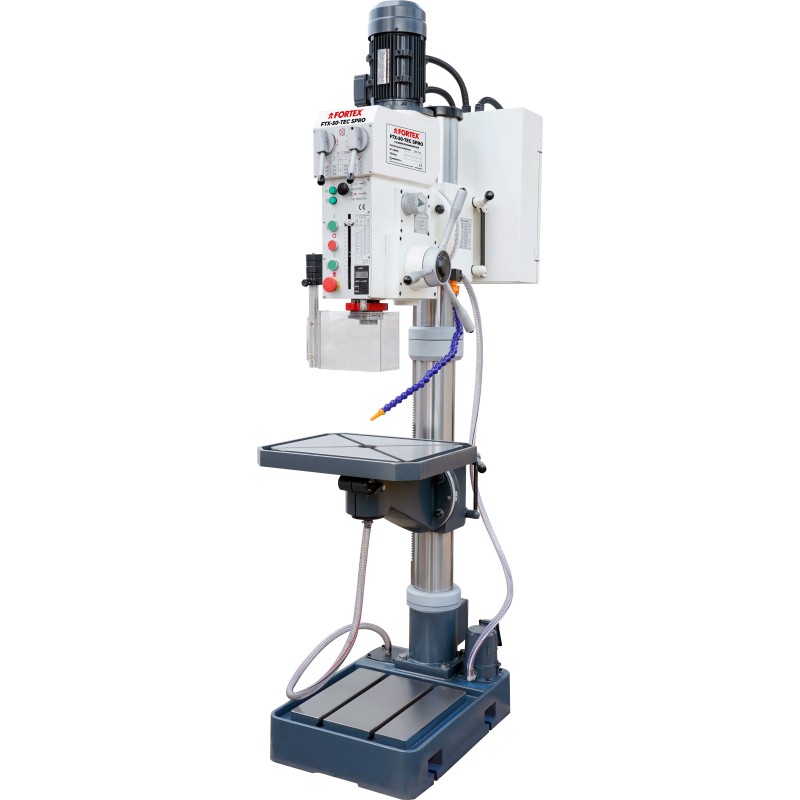

FTX-50-TEC SPRO * 400V/F3
DESCRIPTION
High precision milling drill equipped with silent gearbox and automatic spindle advance. It incorporates thread function, tiltable table ±45o and speed change via levers. It has turn inverter, electromagnetic clutch and cooling system. Manufactured in accordance with CE standards to ensure optimal safety and performance.
DESCARGAR FICHA TÉCNICA
441513000.pdf
Mi Descargar ficha técnica del producto 441513000
* Taxes and transport excluded
| Voltage | 400V/F3 |
|---|---|
| Power | 3 - 4 Kw-Hp |
| Transmission | Engranajes |
| Spindle speeds | 12 |
| Speed | 52 - 1400 m.p.m. |
| Drill bit max capacity | 50 mm. |
| Tapping capacity | M30 |
| Chuck-to-column distance | 450 mm. |
| Morse taper | MT4 |
| Max. travel spindle | 240 mm. |
| T Slot | 2X14, 2X18 mm. |
| Spindle-to-base distance | 1180 mm. |
| Spindle-to-table distance | 600 mm. |
| Max. travel of work table | 600 (450-AUTO) mm. |
| Diameter of column | 180 mm. |
| Base size | 800X525 mm. |
| Working table dimensions | 580X460 mm. |
| Table tilt | 45o |
| Spindle feed | 0.1 / 0.2 / 0.3 / 0.4 mm./r |
| Equipo refrigeración | YES |
| Total height | - mm. |
| Weight net-gross | 630 / 690 Kg. |
| Dimensions | 1120x680x2180 mm. |
