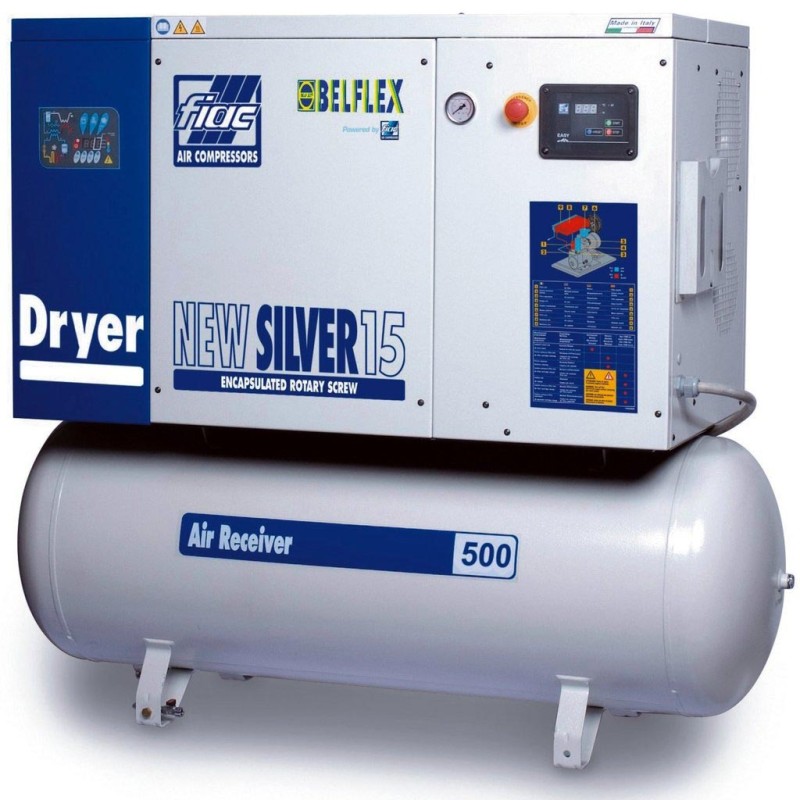

Comp.TORTO NEW SILVER D15HP + C500 + SEC * 400V / F3
DESCRIPTION
Soundproof compressors of low revolutions screw. Electrical box with IP54 protection and Class F insulation. Models with air drying unit, thanks to its digital electronic panel, it controls the exact spray point (3ºC) and the timing of the discharge of condensation. Star timed start / triangle except models with 5.5hp motor.
DESCARGAR FICHA TÉCNICA
410000244.pdf
Mi Descargar ficha técnica del producto 410000244
* Taxes and transport excluded
| Alimentación | 400V/F3 |
|---|---|
| Tank capacity | 500 LTS. |
| Potencia | 11 - 15 kW-HP |
| Air flow | 8 bar - 1,560 / 10 bar - 1.430 / 13 bar - 1.210 lt / min. |
| R.P.M | - Nº / min. |
| Cylinders | - No |
| Nº stages | - No |
| Max. pressure Bar. | 1 - 3 bar. |
| Noise level | 65 dB. |
| Peso Neto/Bruto | 350 / 400 Kg. |
| Dimensiones | 1880x630x1610 mm. |
