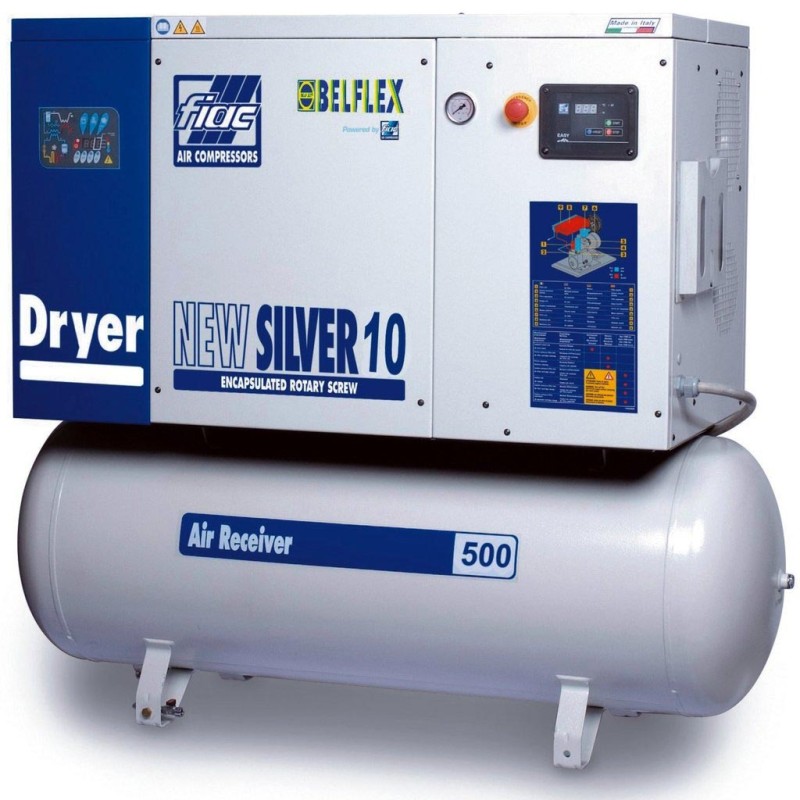

Comp.TORTO NEW SILVER D10HP + C500 + SEC * 400V / F3
DESCRIPTION
Soundproof compressors of low revolutions screw. Electrical box with IP54 protection and Class F insulation. Models with air drying unit, thanks to its digital electronic panel, it controls the exact spray point (3ºC) and the timing of the discharge of condensation. Star timed start / triangle except models with 5.5hp motor.
DESCARGAR FICHA TÉCNICA
410000243.pdf
Mi Descargar ficha técnica del producto 410000243
* Taxes and transport excluded
| Alimentación | 400V/F3 |
|---|---|
| Tank capacity | 500 LTS. |
| Potencia | 7.5 - 10 Kw-Hp |
| Air flow | 8 bar - 950/10 bar - 860/13 bar - 690 lt / min. |
| R.P.M | - Nº / min. |
| Cylinders | - No |
| Nº stages | - No |
| Max. pressure Bar. | 1 - 3 bar. |
| Noise level | 67 dB. |
| Peso Neto/Bruto | 1300/1650 kg. |
| Dimensiones | 1880x540x1610 mm. |
