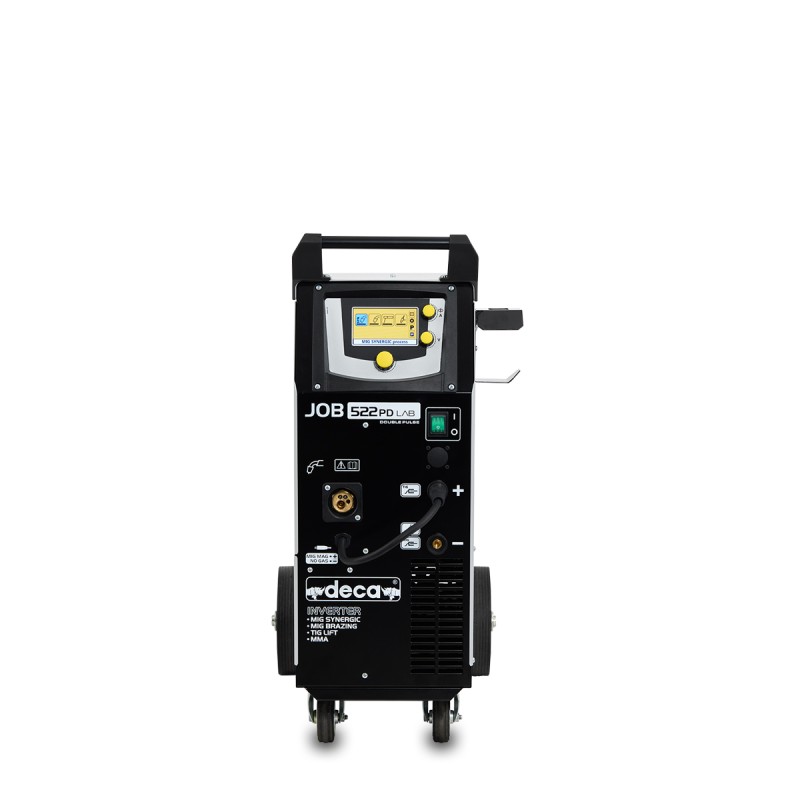

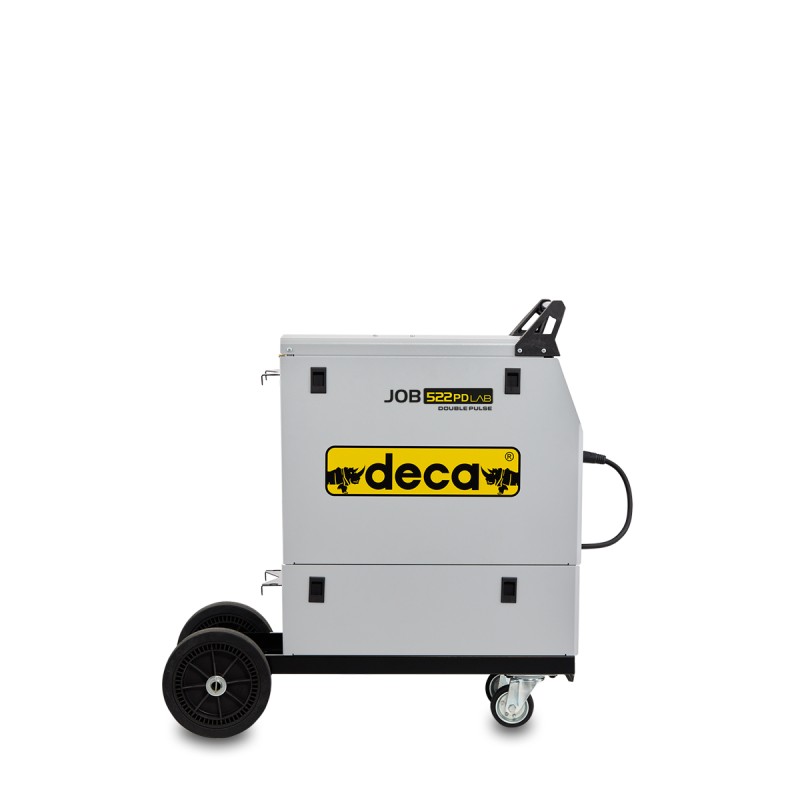

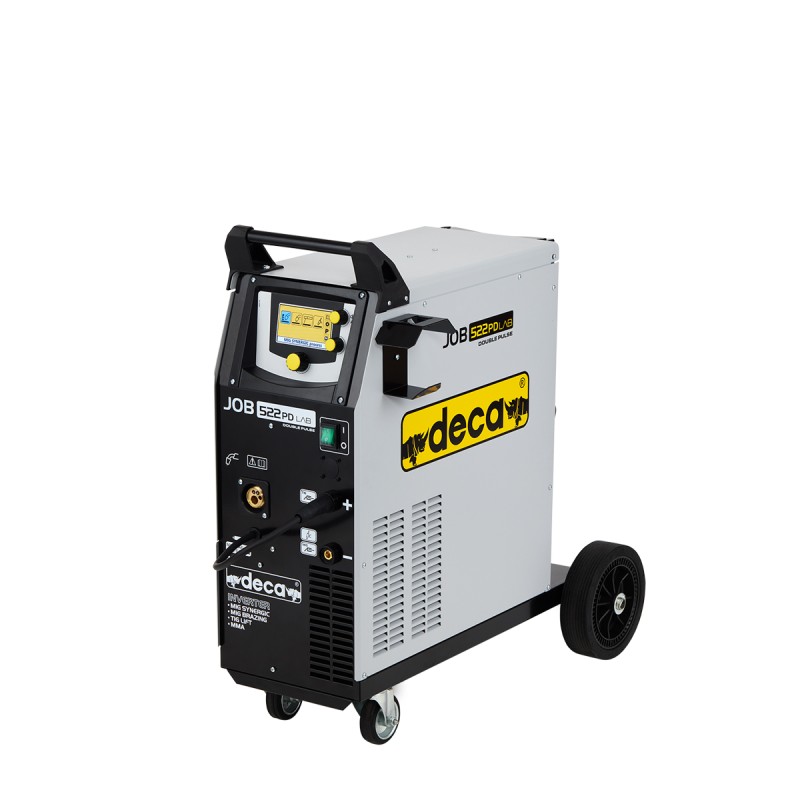

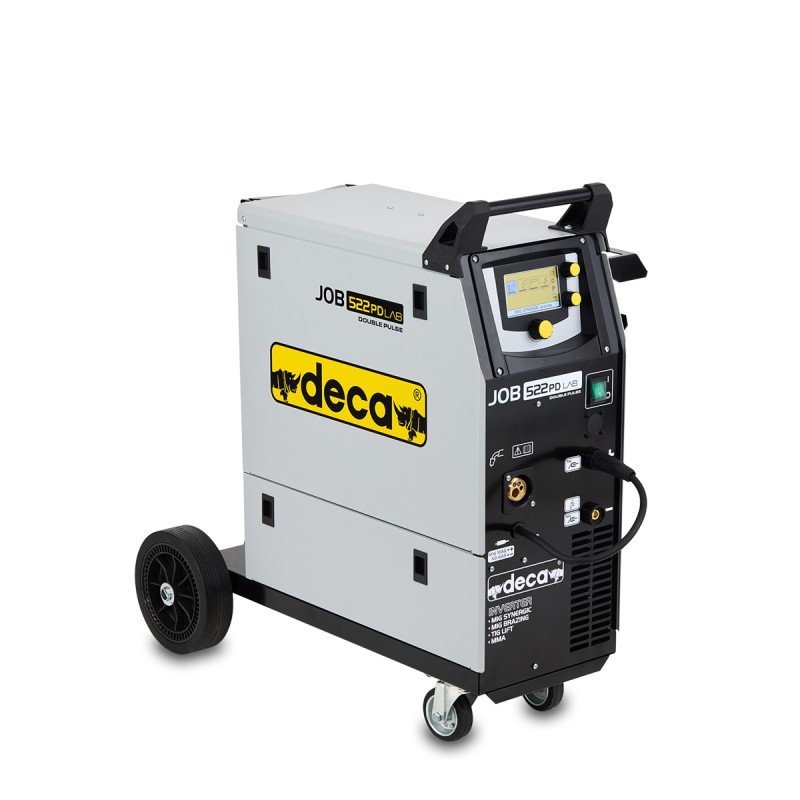

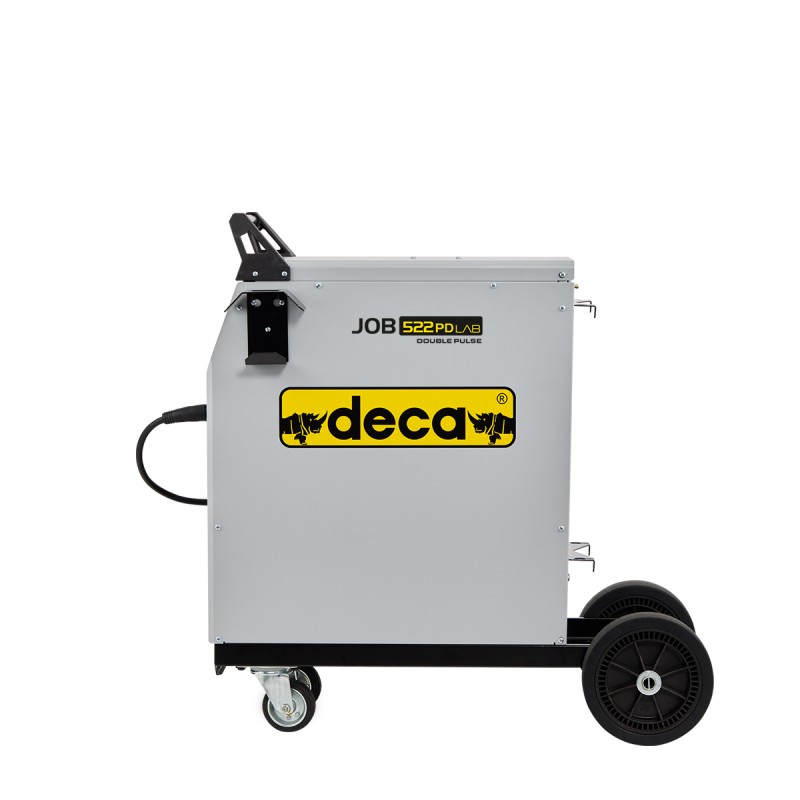

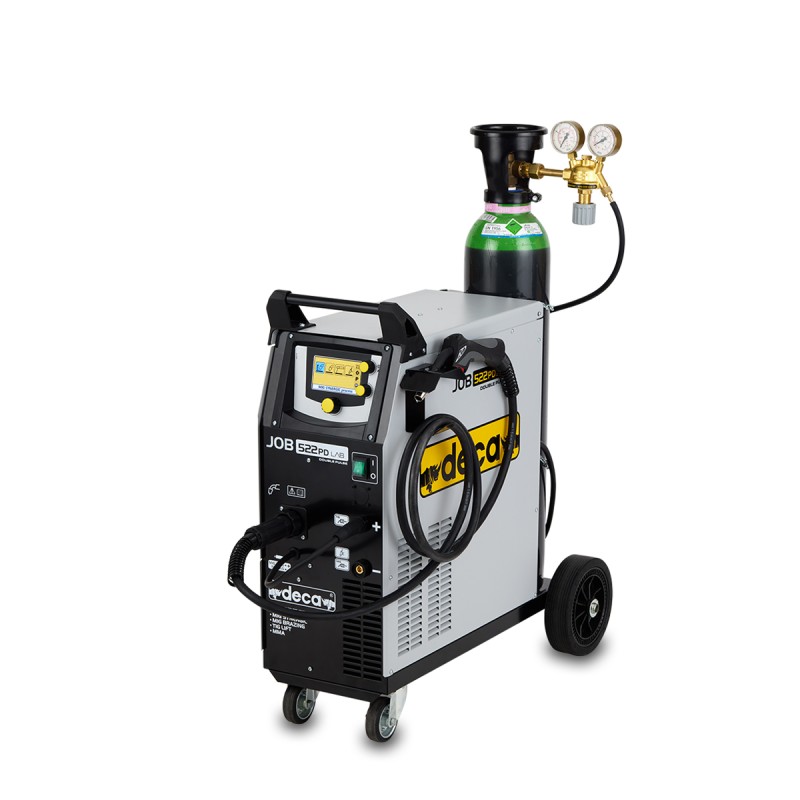

MIG / MAG INVERTER JOB 522 PD Lab 230V / F1 with ACC.
DESCRIPTION
Job 522 PD Lab is the ideal welding machine for the craftsman and professional that
You need different welding processes in a single system: MIG / MAG, FLUX, MMA and Tig Lift. Job 522 PD Lab supplies 220 AMPERIOS of DC25 (CC).

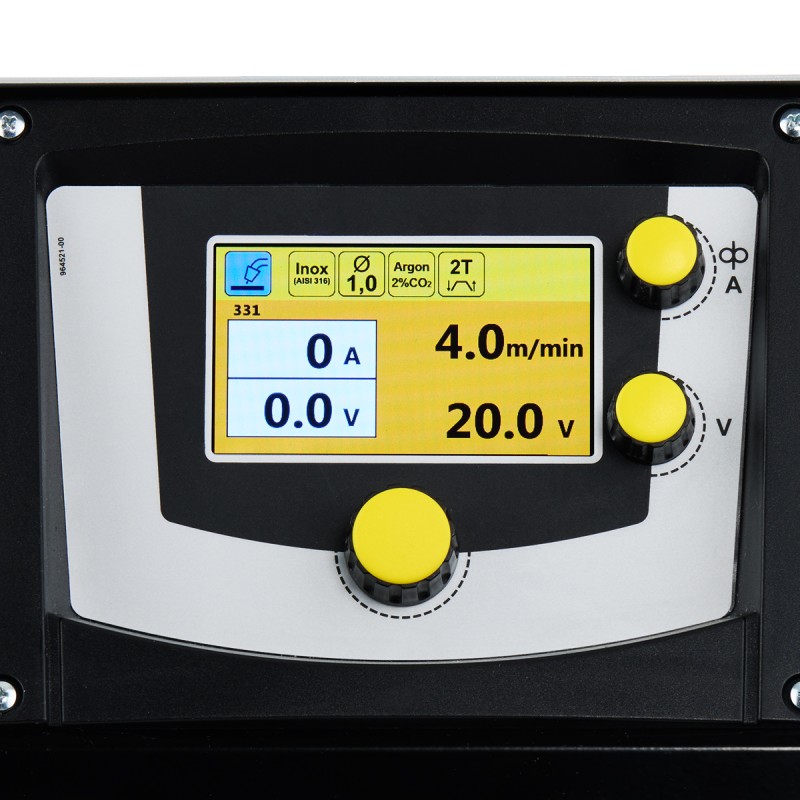

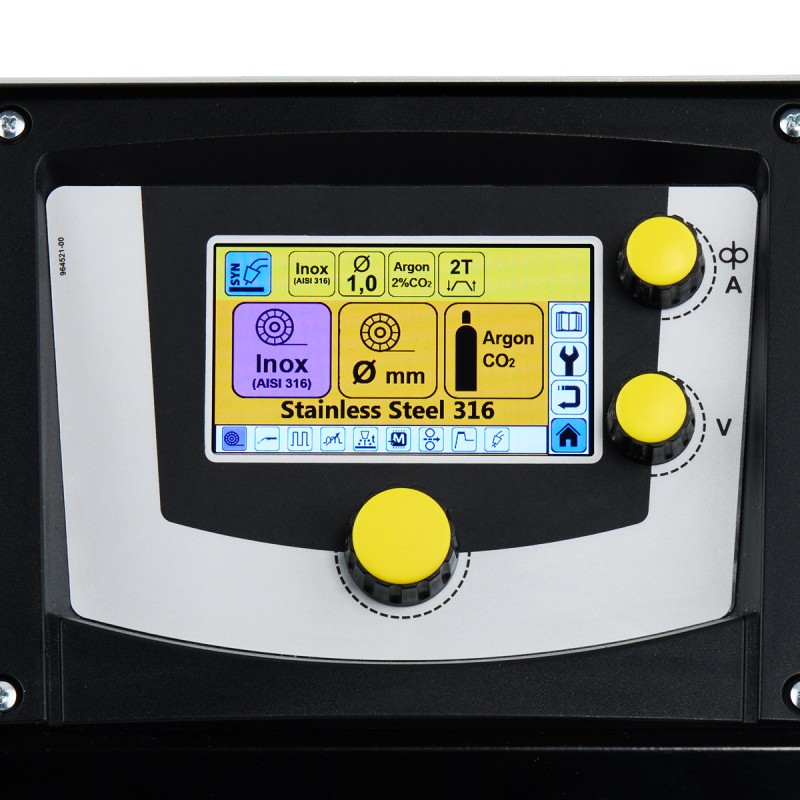

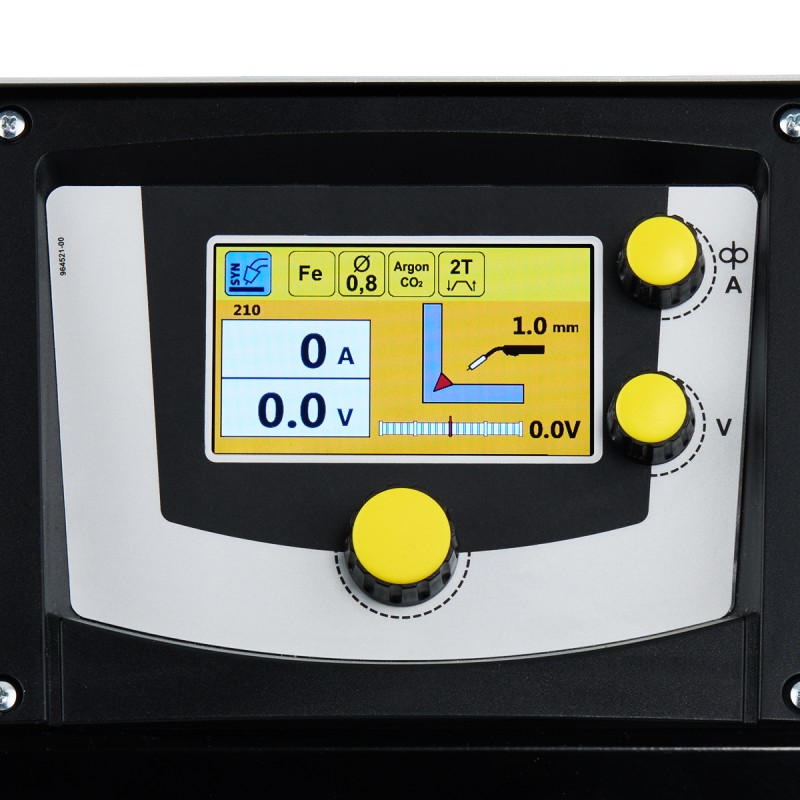

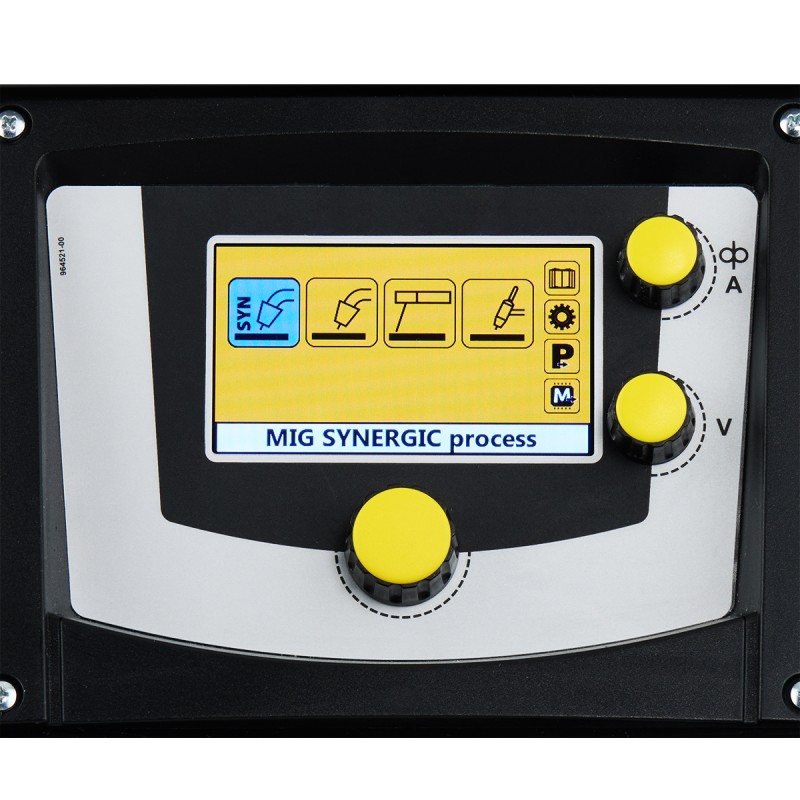

The supply voltage is single-phase 230 volts. MIG / MAG pressed and double-pressed for steel welding, stainless steel, Aluminum and for use of strong welding wires. The synergistic control
It is extremely effective. All the main welding parameters are Connected and act in combination. The change of polarity allows to use a Animated cable without gas.
DESCARGAR FICHA TÉCNICA
383250500.pdf
Mi Descargar ficha técnica del producto 383250500
* Taxes and transport excluded
| Alimentación | 230V/F1 |
|---|---|
| Power consumed: 60% / max. | 3.3 / 6.3 kW |
| Fusible | 25 AMP. |
| Generador compatible | 9 kW / kva. |
| Regulación de soldar | 10 - 220 MIG-TIG / 10-160 MMA AMP. |
| Servicio EN60974-1 (40ºC) | MIG-TIG 220A-20% / MMA 160A-30% MIG-TIG 140A-60% / MMA 130A-60% AMP. |
| Tensión en vacío | 88 Volt. |
| Diámetro hilo acero | 0.6 - 0.8 - 1.0 mm. |
| Diameter thread stainless steel. | 0.8 - 1.0 mm. |
| Diameter thread aluminum | 0.8 - 1.0 - 1.2 mm. |
| Diameter tubular thread | 0.8 - 0.9 - 1.2 mm. |

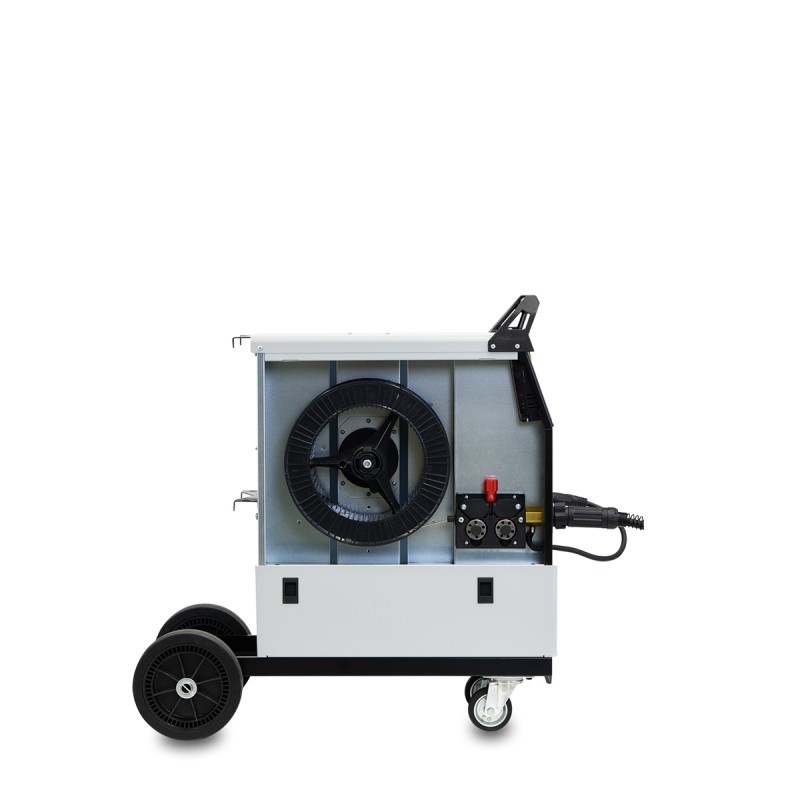

| Ø Bobina hilo | 200 - 300 mm. |
| Electrodos utilizables | MMA 1,6-4.0 / TIG 1.0-4.0 Ø mm. |
| Connector Dinse | 25 mm. |
| Antorcha EURO | SI |
| Peso Neto/Bruto | 30/36 kg. |
| Dimensión aparato | 777 x 407 x 792 mm. |
| Dimensiones embalaje | 800 x 300 x 650 mm. |
