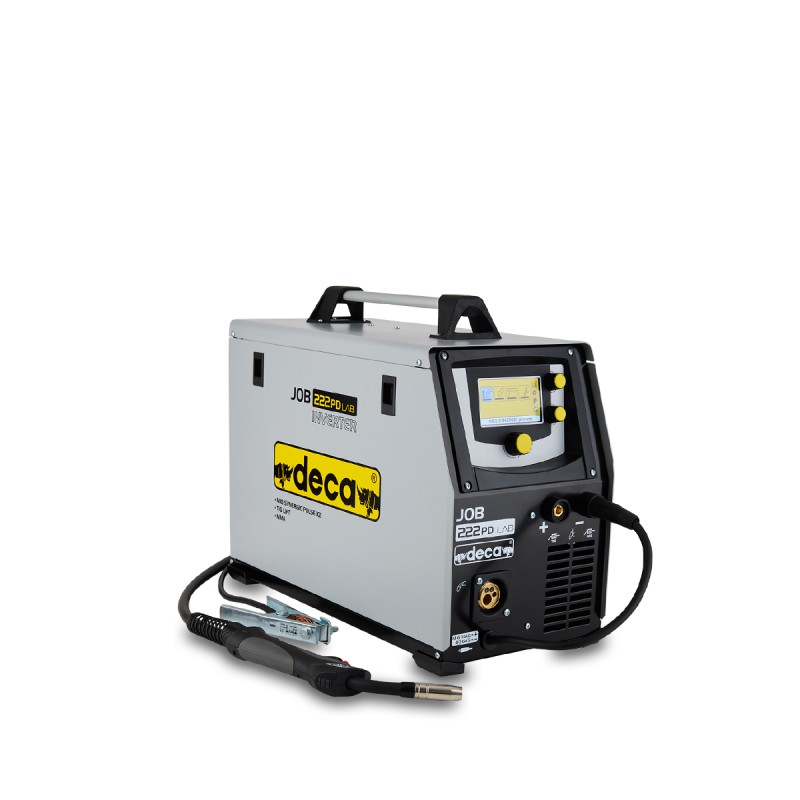

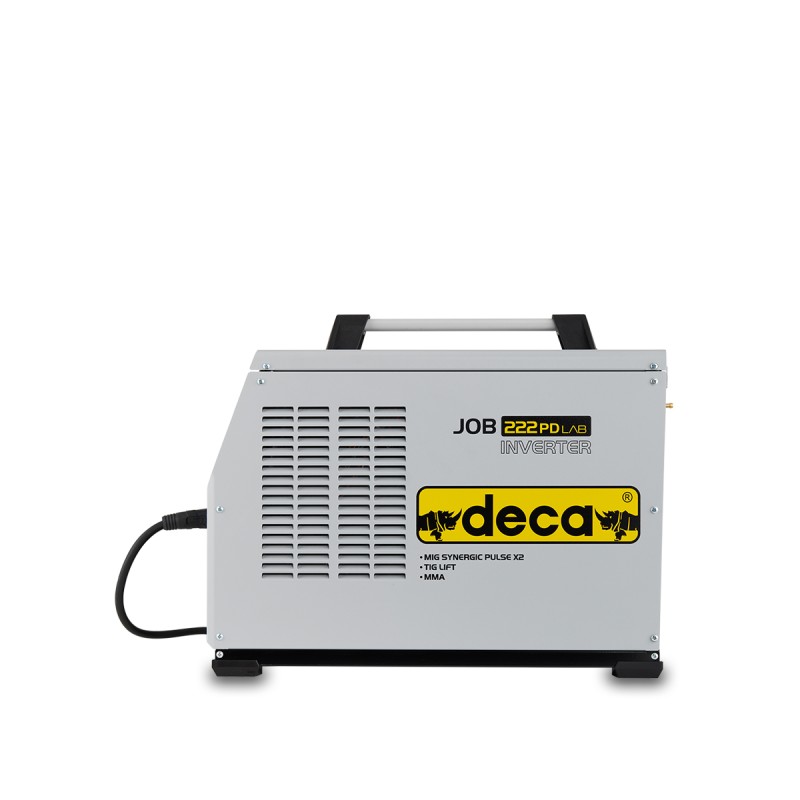

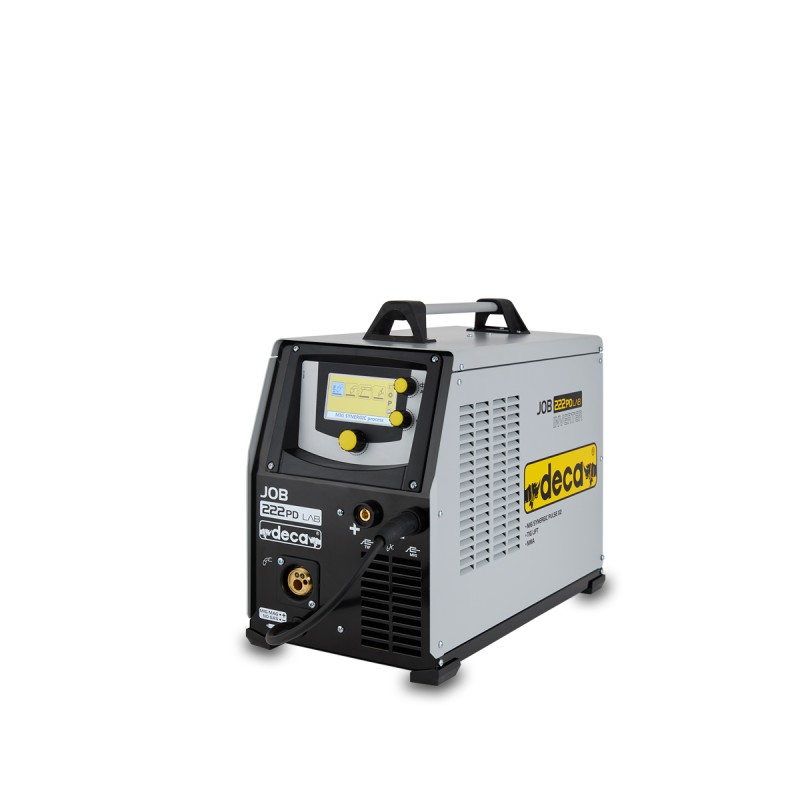

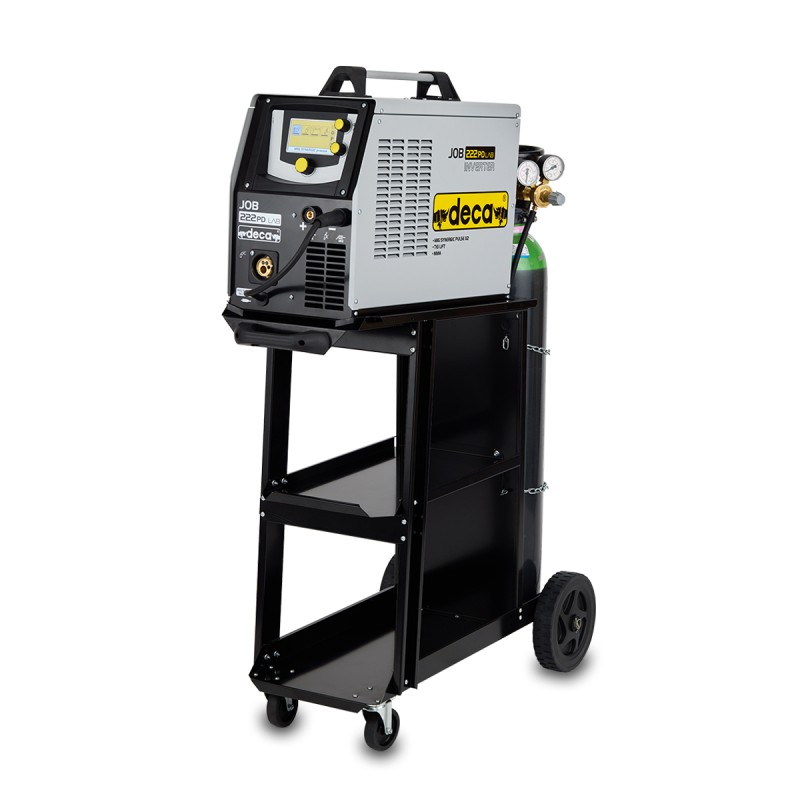

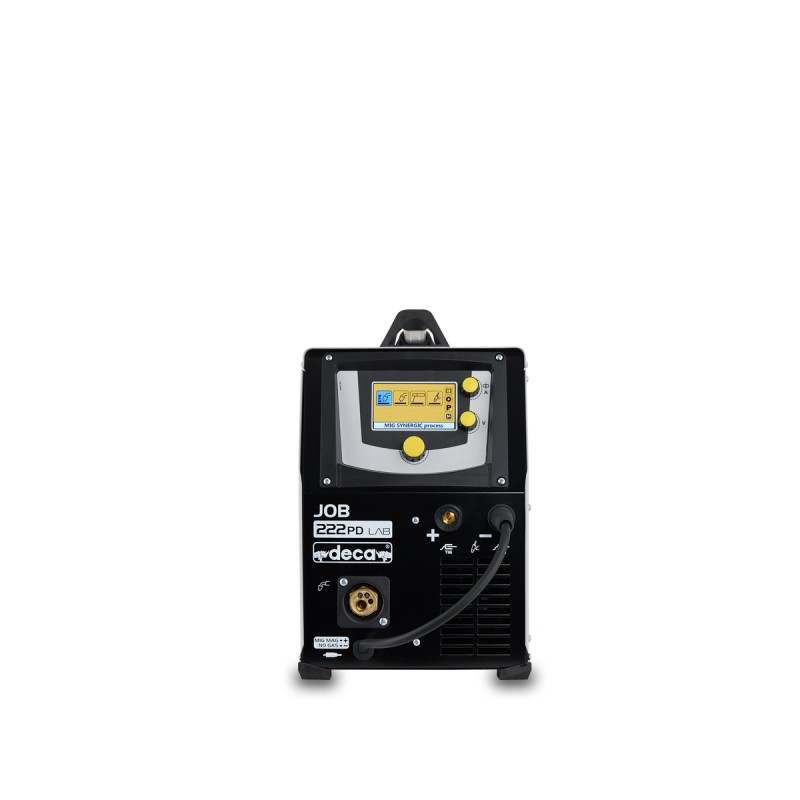

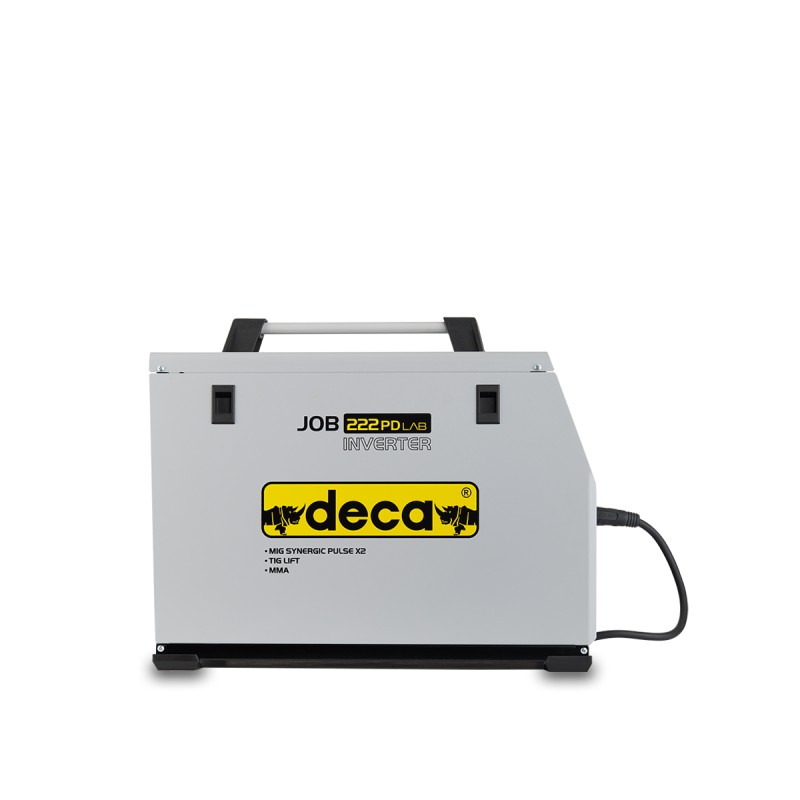

MIG / MAG Inverter JOB 222 PD Lab 230v / F1 with ACC.
DESCRIPTION
Job 222 PD Lab is the ideal welding machine for the craftsman and professional that
You need different welding processes in a single system: MIG / MAG, FLUX, MMA And Tig Lift. JOB 222 PD LAB supplies 220 AMPERIOS of DC25 (CC). The Feed voltage is single-phase 230 volts. Can be connected to an engine
Generator (see Technical Data Table).

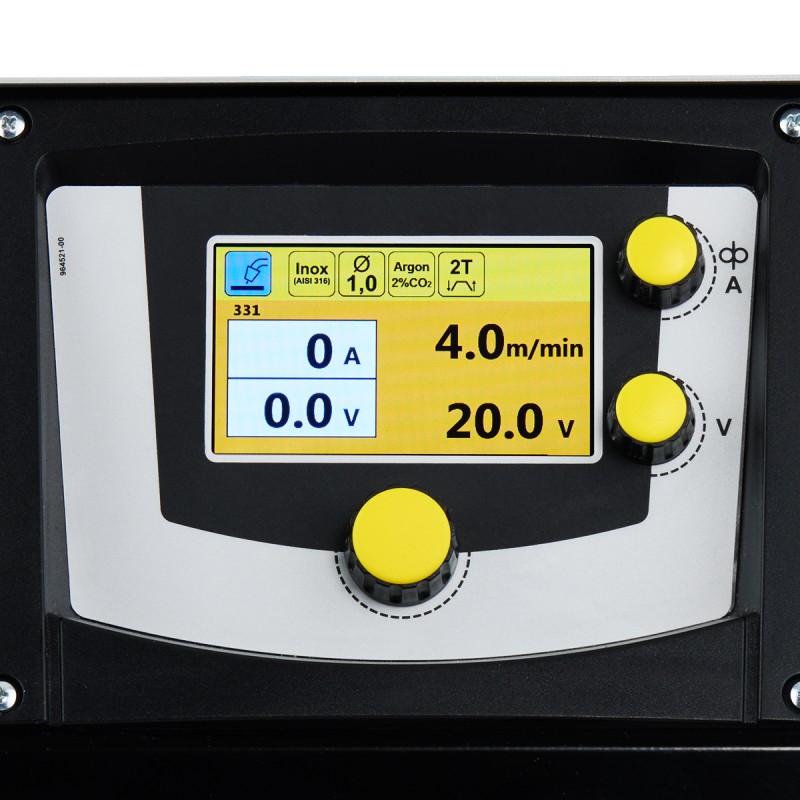

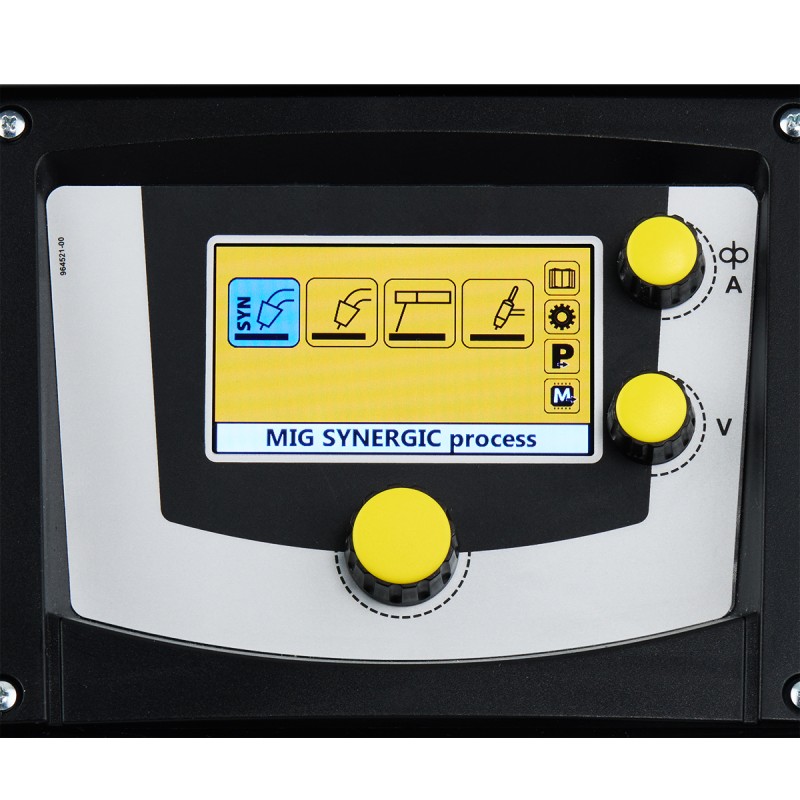

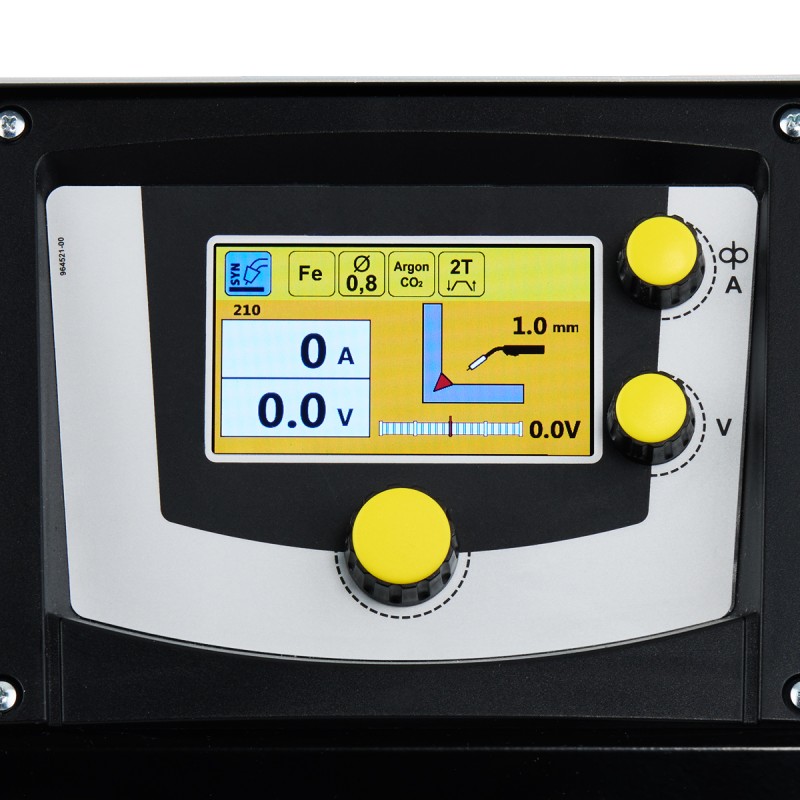

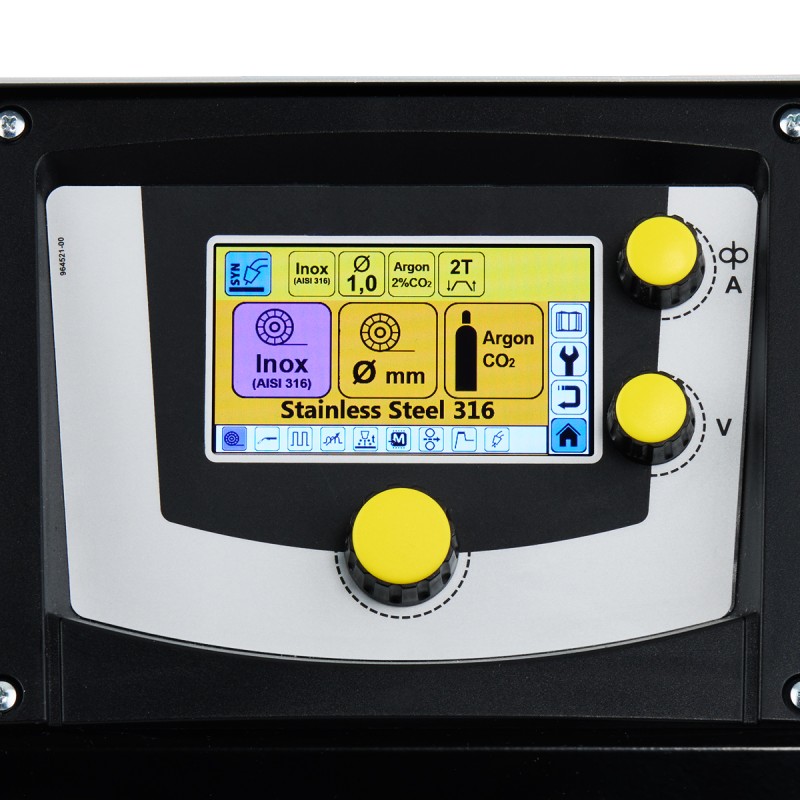

MIG / MAG pressed and double-pressed for steel welding, stainless steel, Aluminum and for use of strong welding wires. The synergistic control It is extremely effective.
DESCARGAR FICHA TÉCNICA
383250200.pdf
Mi Descargar ficha técnica del producto 383250200
* Taxes and transport excluded
| Alimentación | 230V/F1 |
|---|---|
| Power consumed: 60% / max. | 3.3 / 6.3 kW |
| Fusible | 25 AMP. |
| Generador compatible | 9 kW / kva. |
| Regulación de soldar | 10 - 220 MIG-TIG / 10-160 MMA AMP. |
| Servicio EN60974-1 (40ºC) | MIG-TIG 220A-20% / MMA 160A-30% MIG-TIG 140A-60% / MMA 130A-60% AMP. |
| Tensión en vacío | 88 Volt. |
| Diámetro hilo acero | 0.6 - 0.8 - 1.0 mm. |
| Diameter thread stainless steel. | 0.8 - 1.0 mm. |
| Diameter thread aluminum | 0.8 - 1.0 - 1.2 mm. |
| Diameter tubular thread | 0.8 - 0.9 - 1.2 mm. |
| Ø Bobina hilo | 200 - 300 mm. |
| Electrodos utilizables | MMA 1,6-4.0 / TIG 1.0-4.0 Ø mm. |
| Connector Dinse | 25 mm. |
| Antorcha EURO | SI |
| Peso Neto/Bruto | 14.6 / 19.4 kg. |
| Dimensión aparato | 556 x 268 x 438 mm. |
| Dimensiones embalaje | 605 x 325 x 495 mm. |
