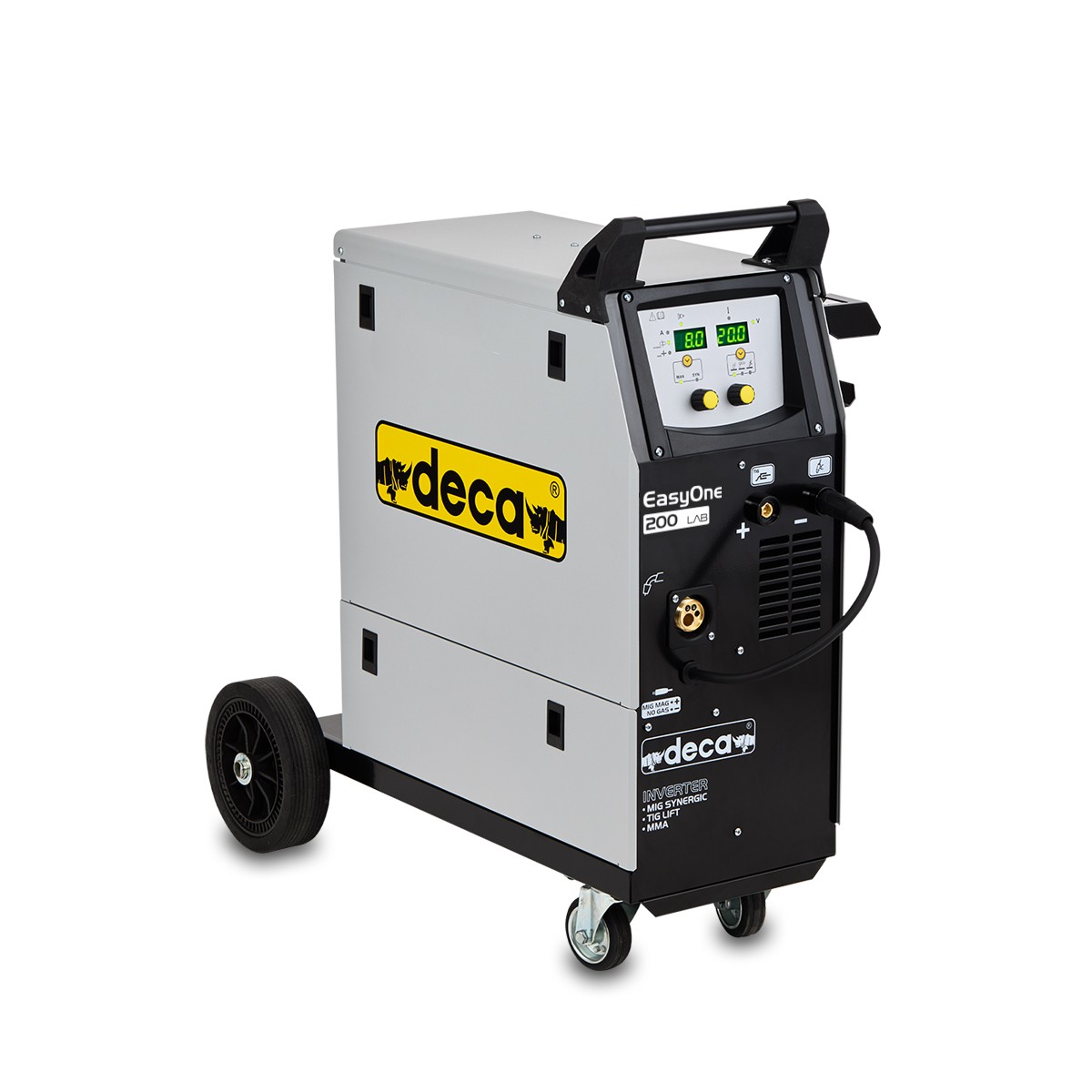

MIG / MAG INVERTER EASY ONE 200 LAB 230V / F1 with ACC.
DESCRIPTION
Easy One 200 Lab is the perfect synergic multiprocess inverter solder for any
Garage and well-equipped workshop.
Easy One 200 Lab supplies 200 AMPERIOS in DC Continue (CC). The tension of Voltage is single-phase 230 volt.
Easy One 200 Lab offers 4 welding processes always by hand: Mig / Mag, Flux, MMA And Tig Lift. In MIG / MAG and FLUX modes, Easy One 200 Lab is perfect for steel welding, Stainless steel, aluminum and to use strong weld wires.
DESCARGAR FICHA TÉCNICA
383247500.pdf
Mi Descargar ficha técnica del producto 383247500
* Taxes and transport excluded
| Alimentación | 230V/F1 |
|---|---|
| Power consumed: 60% / max. | 2.8 / 4.5 kW |
| Fusible | 16 Amp. |
| Generador compatible | 7 kW / kVA. |
| Regulación de soldar | 10 - 200 MIG-TIG / 10-160 MMA AMP. |
| Servicio EN60974-1 (40ºC) | MIG-TIG 180A-25% / MMA 150A-25% MIG-TIG 100A-60% / MMA 100A-60% AMP. |
| Tensión en vacío | 86 Volt. |
| Diámetro hilo acero | 0.6 - 0.8 - 0.9 - 1.0 mm. |
| Diameter thread stainless steel. | 0.8 - 1.0 mm. |
| Diameter thread aluminum | 0.8 - 1.0 - 1.2 mm. |
| Diameter tubular thread | 0.8 - 0.9 - 1.0 - 1.2 mm. |
| Ø Bobina hilo | 200 - 300 mm. |
| Electrodos utilizables | MMA 1,6-4,0 / TIG 1.0-3.2 Ø mm. |
| Connector Dinse | 25 mm. |
| Antorcha EURO | SI |
| Peso Neto/Bruto | 30/33.5 kg. |
| Dimensión aparato | 777 x 407 x 792 mm. |
| Dimensiones embalaje | 800 x 300 x 650 mm. |
