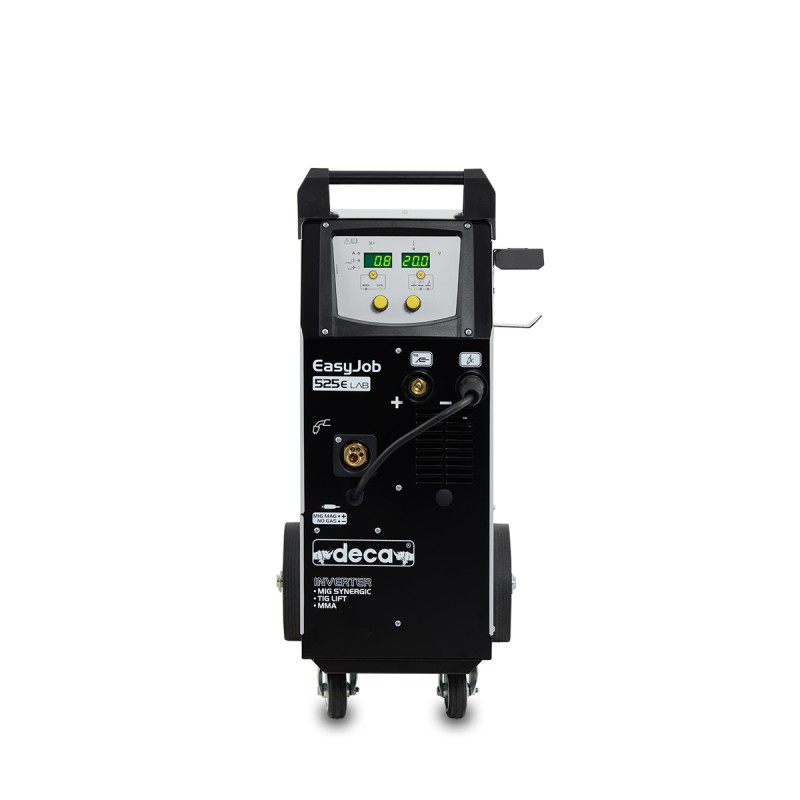

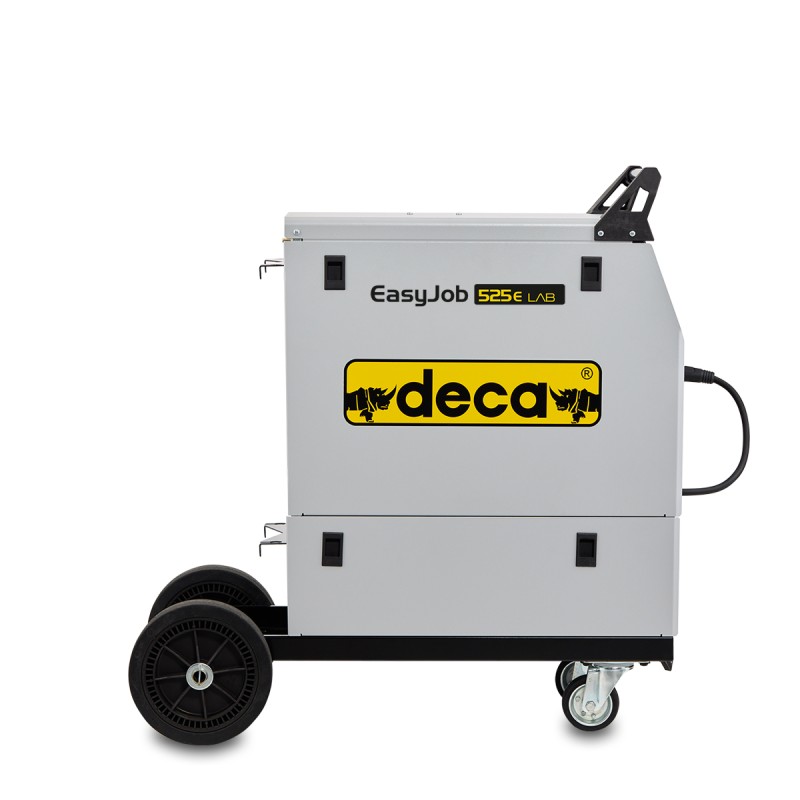

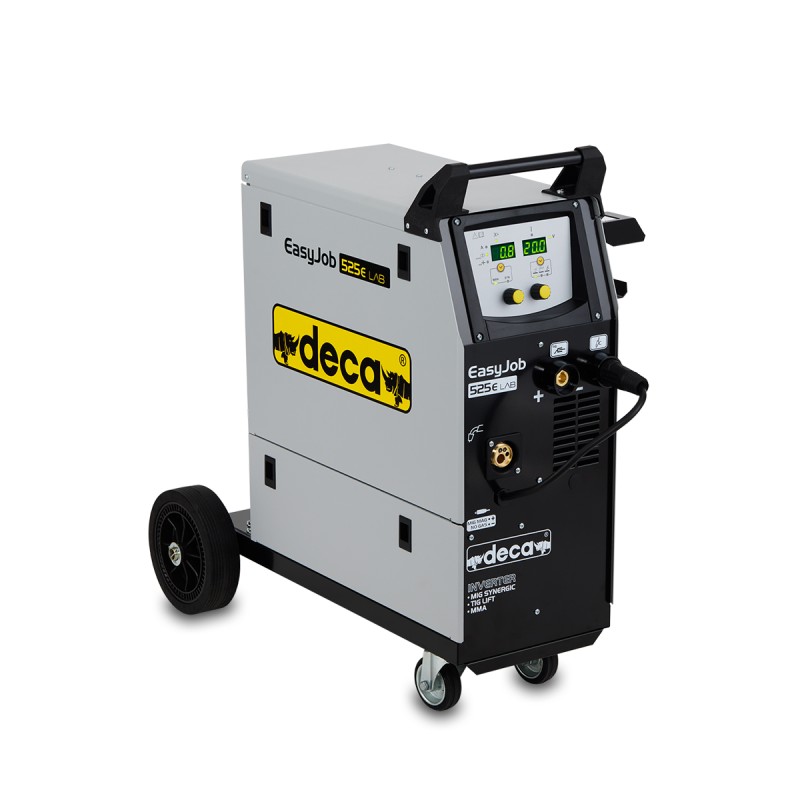

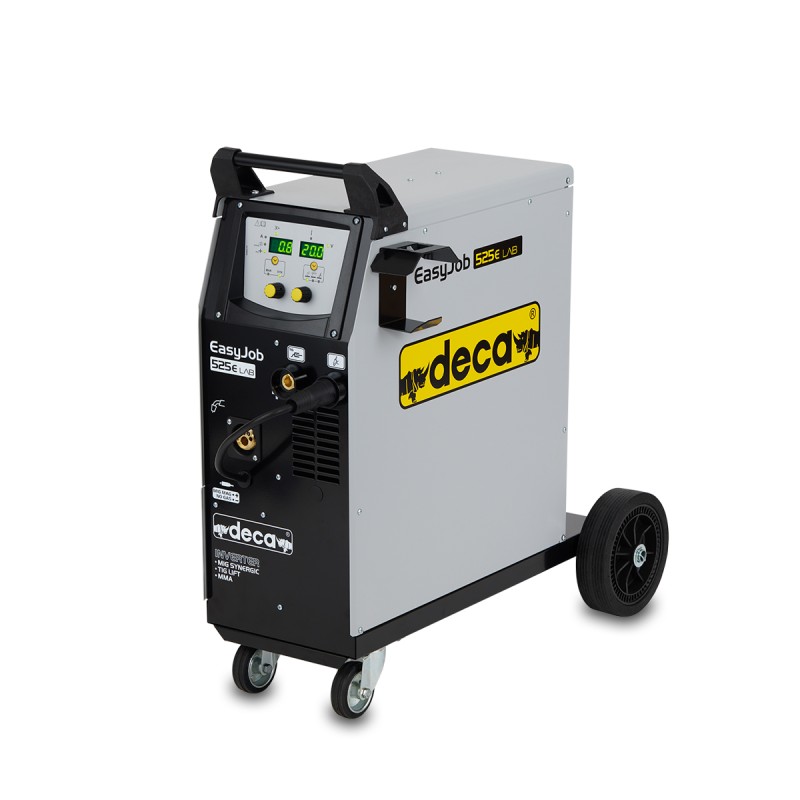

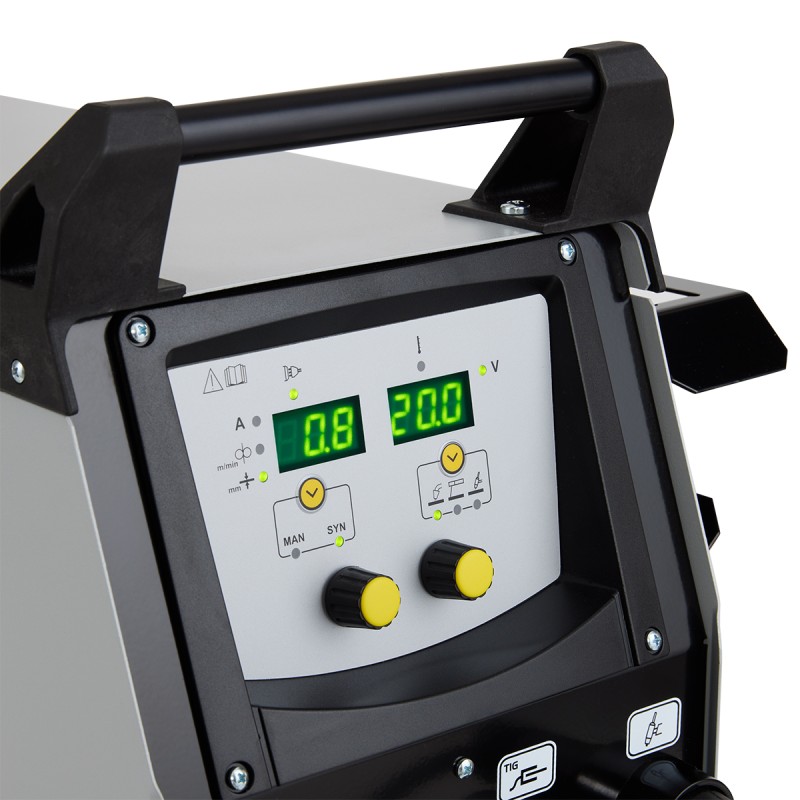

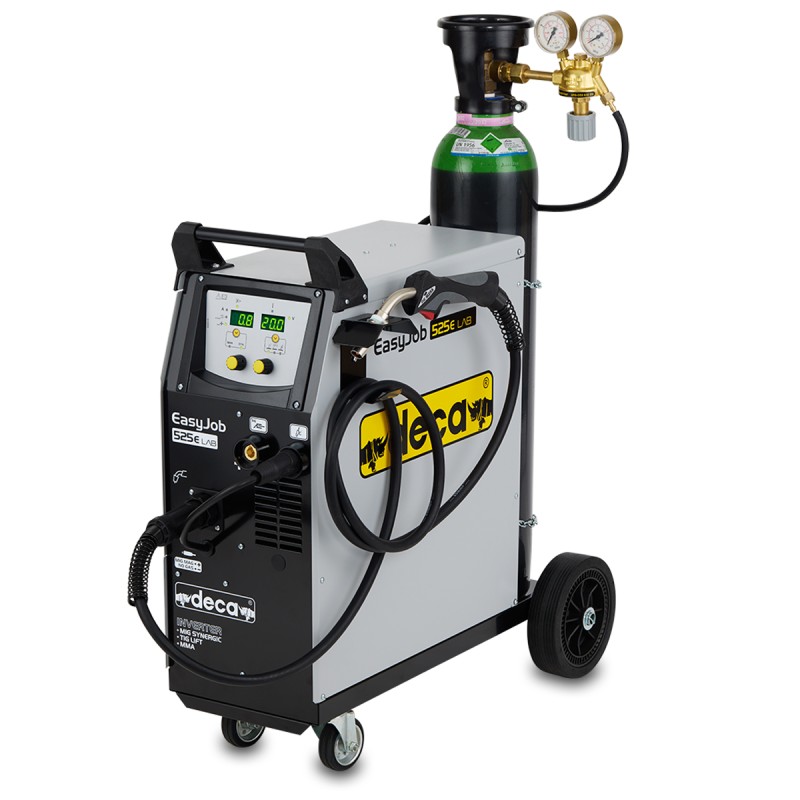

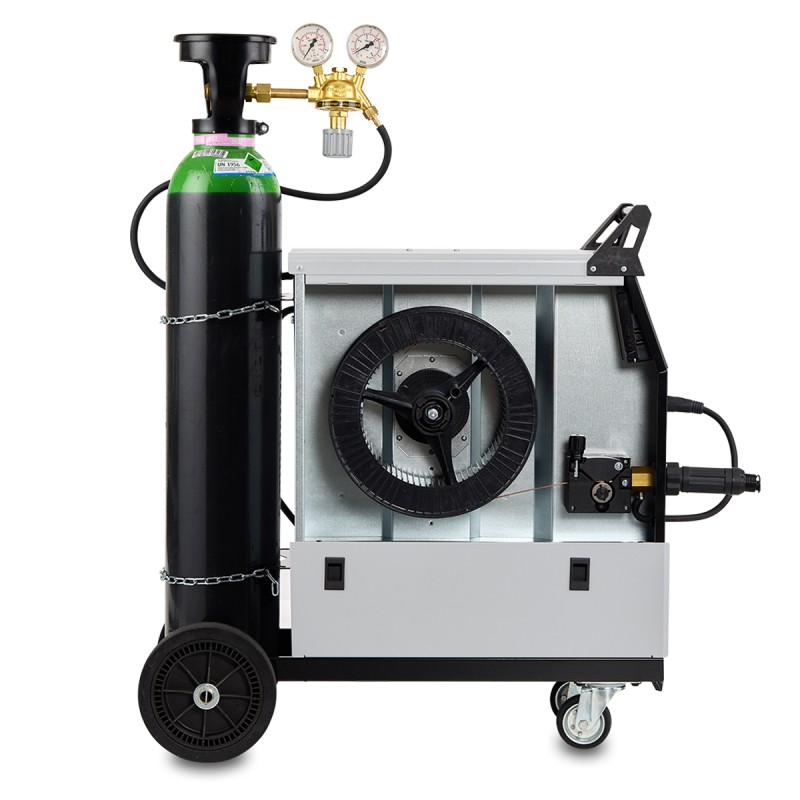

MIG / MAG INVERTER EASY JOB 525E LAB 230V / F1 with ACC.
DESCRIPTION
EasyJob 525E LAB is the perfect synergic multiprocess multiprocess solder for any
Garage and well-equipped workshop.
EasyJob 525E Lab supplies 250 A in continuous current (CC). The supply voltage It is single-phase 230 volts. It offers 4 welding processes always by hand:
MIG / MAG, FLUX, MMA and TIG LIFT. In MiR / MAG and Flux modes, easyJob 525E Lab is Perfect for welding steel, stainless steel, aluminum and to use wires Strong welding
DESCARGAR FICHA TÉCNICA
383247100.pdf
Mi Descargar ficha técnica del producto 383247100
* Taxes and transport excluded
| Alimentación | 230V/F1 |
|---|---|
| Power consumed: 60% / max. | 3.3 / 6.3 kW |
| Fusible | 25 AMP. |
| Generador compatible | 9 kW / kva. |
| Regulación de soldar | 10 - 250 MIG-TIG / 10-200 MMA AMP. |
| Servicio EN60974-1 (40ºC) | MIG-TIG 220A-20% / MMA 180A-25% MIG-TIG 120A-60% / MMA 120A-60% AMP. |
| Tensión en vacío | 96 Volt. |
| Diámetro hilo acero | 0.6 - 0.8 - 0.9 - 1.0 - 1.2 mm. |
| Diameter thread stainless steel. | 0.8 - 1.0 mm. |
| Diameter thread aluminum | 0.8 - 1.0 - 1.2 mm. |
| Diameter tubular thread | 0.8 - 0.9 - 1.0 - 1.2 mm. |
| Ø Bobina hilo | 200 - 300 mm. |
| Electrodos utilizables | MMA 1,6-4.0 / TIG 1.0-4.0 Ø mm. |
| Connector Dinse | 50 mm. |
| Antorcha EURO | SI |
| Peso Neto/Bruto | 30/35 kg. |
| Dimensión aparato | 777 x 407 x 792 mm. |
| Dimensiones embalaje | 800 x 300 x 650 mm. |
