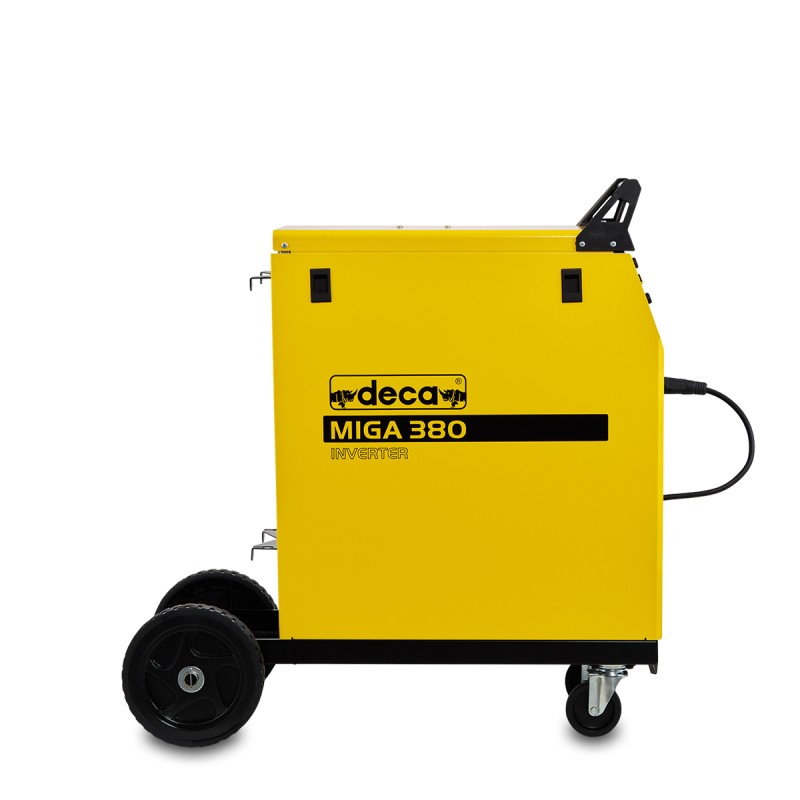

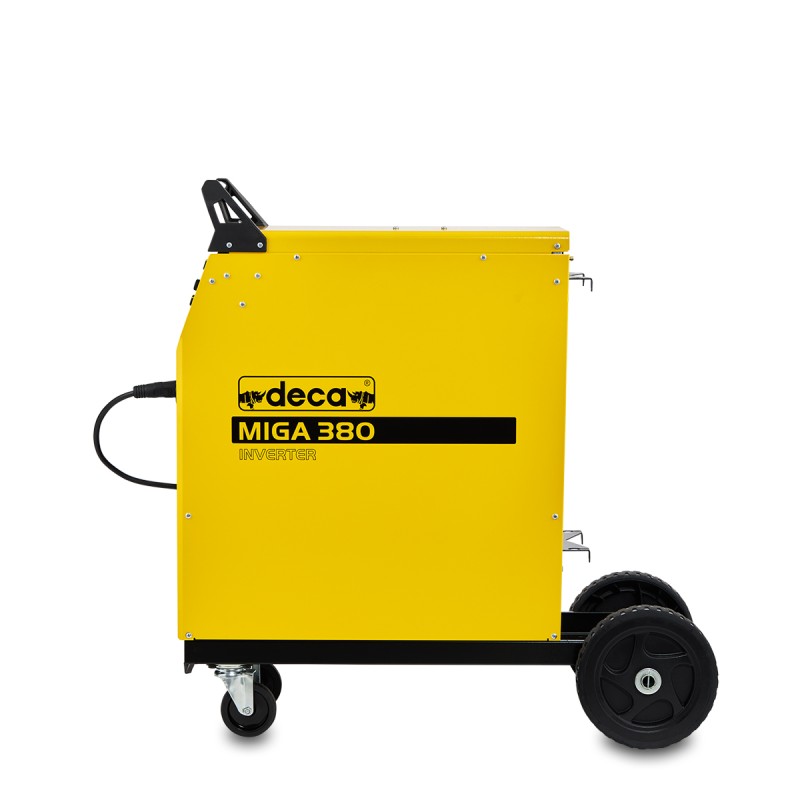

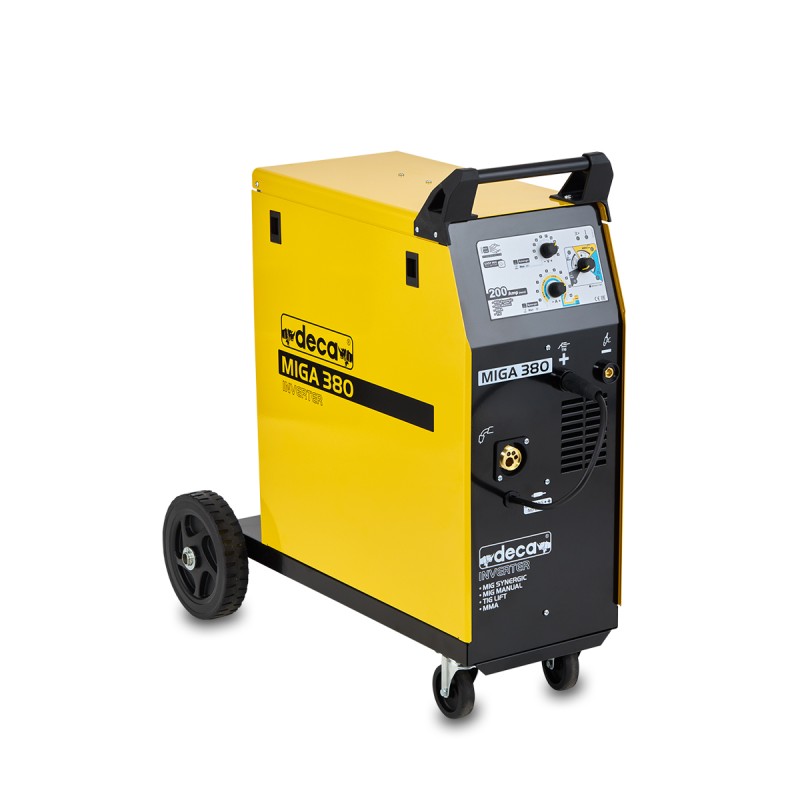

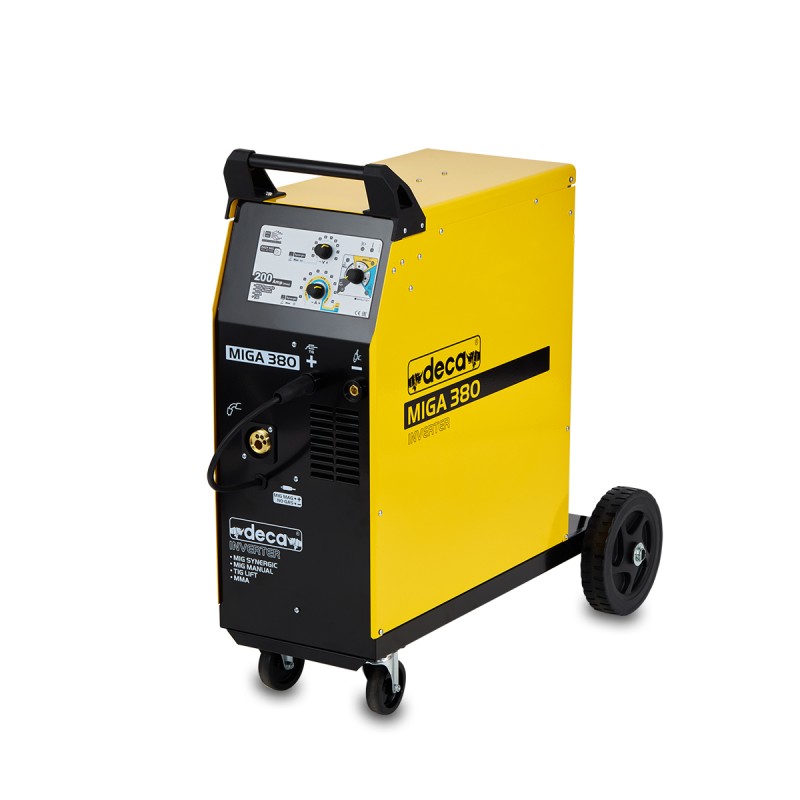

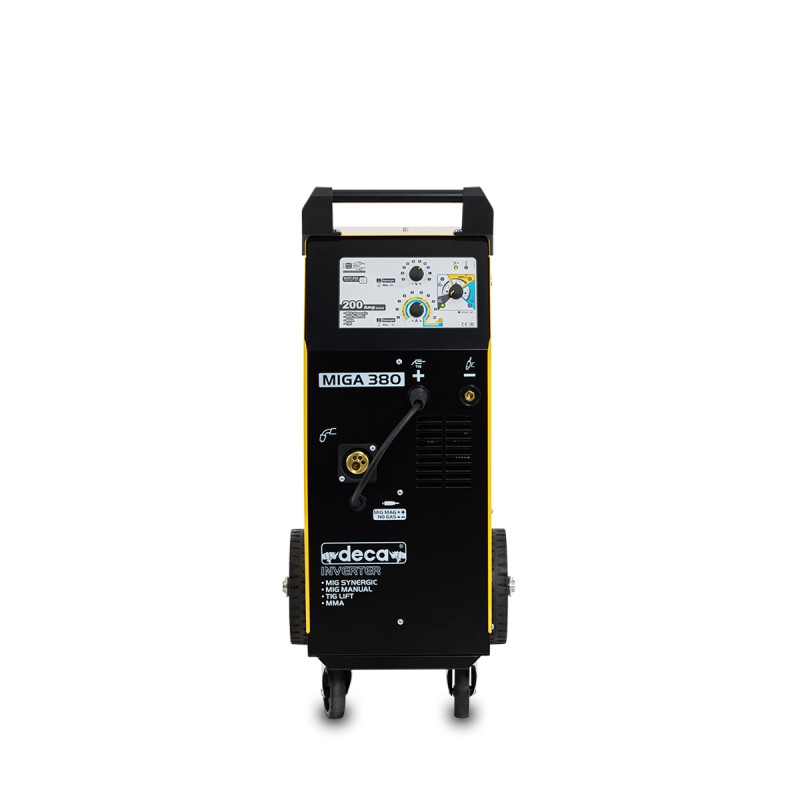

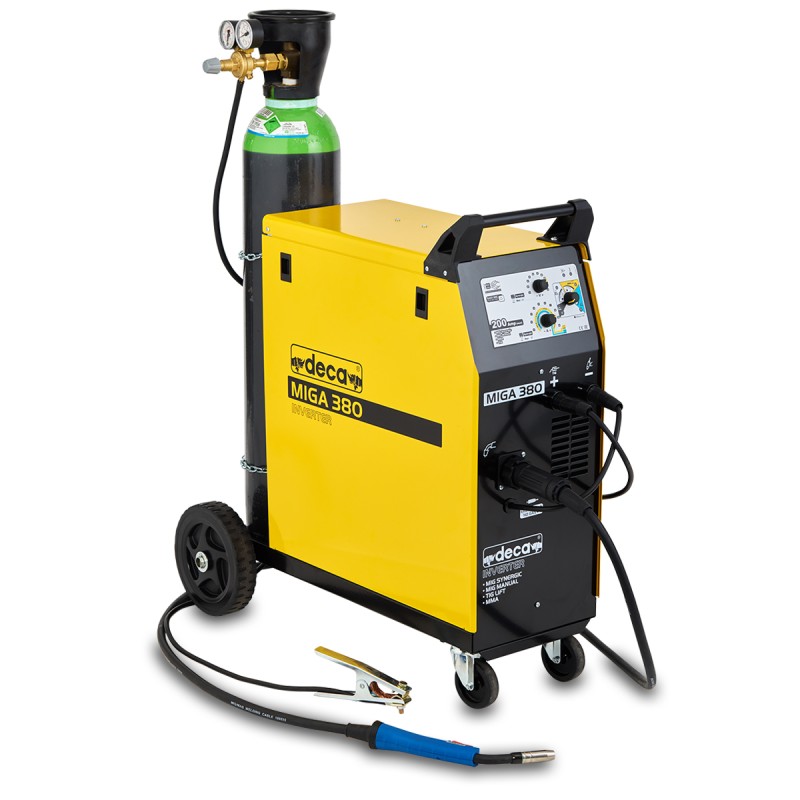

MIG / MAG INVERTER MIGA 380 230V / F1 with ACC.
DESCRIPTION
MIGA 380 supplies 200 AMPERIOS from DC Continue (CC). The supply voltage is single-phase 230 volts. Has low energy consumption and It can be used with low installed power (3 kW) or connected to a generator (see Technical Data Table).

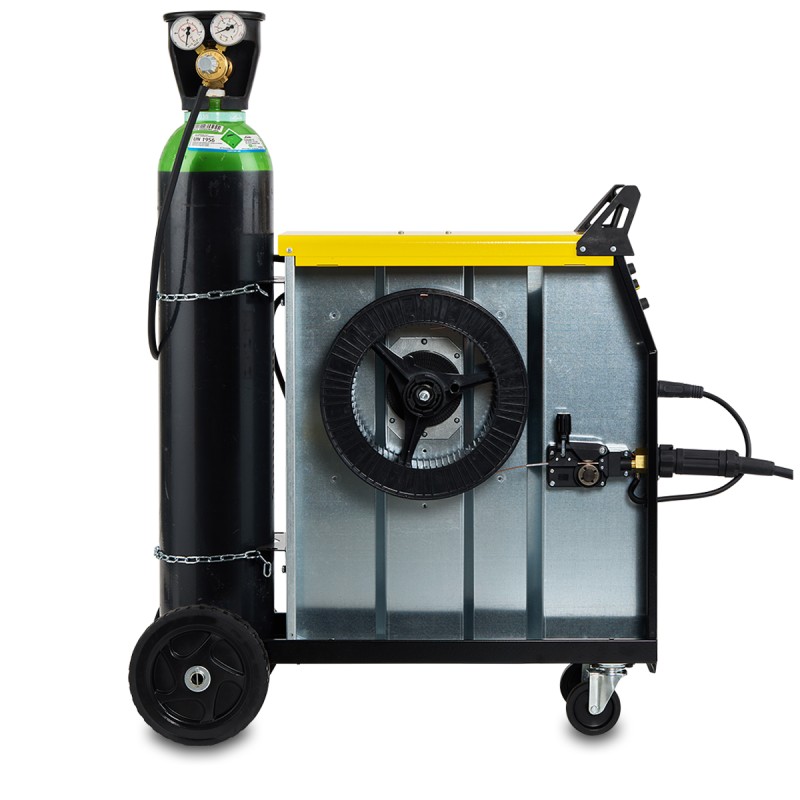

Supports wire coils with a diameter of 300/200 mm. The synergistic or manual MIG process allows us to weld many metals as steel, Stainless steel, Aluminum and perform strong welding with copper-silicon wires or copper-aluminum.
DESCARGAR FICHA TÉCNICA
383242800.pdf
Mi Descargar ficha técnica del producto 383242800
* Taxes and transport excluded
| Alimentación | 230V/F1 |
|---|---|
| Power consumed: 60% / max. | 2.8 / 4.5 kW |
| Fusible | 16 Amp. |
| Generador compatible | 7 kW / kVA. |
| Regulación de soldar | 10 - 200 MIG-TIG / 10-160 MMA AMP. |
| Servicio EN60974-1 (40ºC) | MIG-TIG 180A-25% / MMA 150A-25% MIG-TIG 100A-60% / MMA 100A-60% AMP. |
| Tensión en vacío | 86 Volt. |
| Diámetro hilo acero | 0.6 - 0.8 - 0.9 - 1.0 mm. |
| Diameter thread stainless steel. | 0.8 - 1.0 mm. |
| Diameter thread aluminum | 0.8 - 1.0 - 1.2 mm. |
| Diameter tubular thread | 0.8 - 0.9 - 1.0 - 1.2 mm. |
| Ø Bobina hilo | 200 - 300 mm. |
| Electrodos utilizables | MMA 1,6-4.0 / TIG 1.0-4.0 Ø mm. |
| Connector Dinse | 25 mm. |
| Antorcha EURO | SI |
| Peso Neto/Bruto | 25.5 / 30 kg. |
| Dimensión aparato | 777 x 407 x 792 mm. |
| Dimensiones embalaje | 800 x 300 x 650 mm. |
