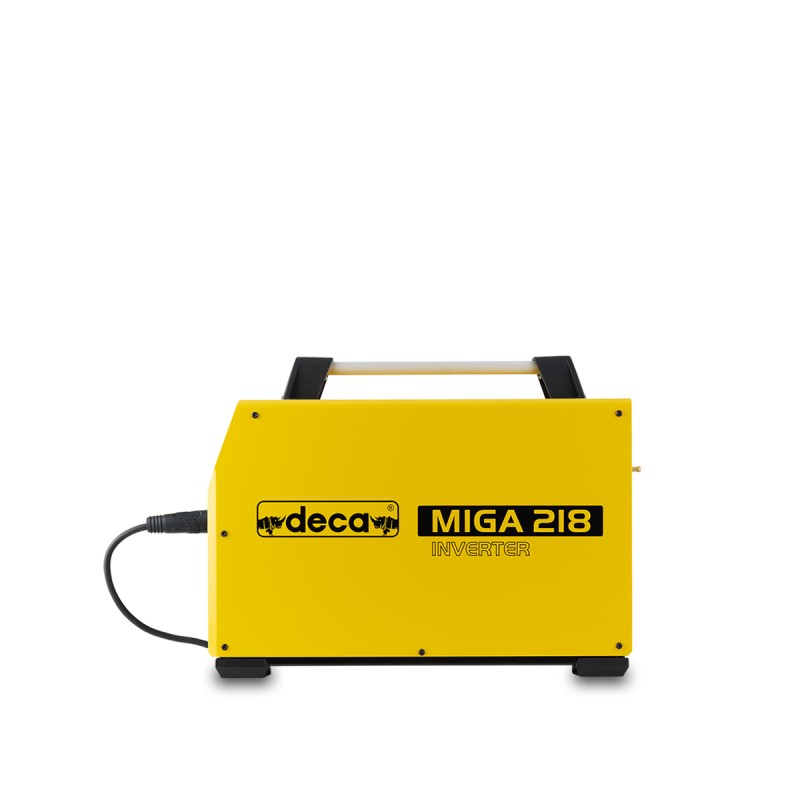

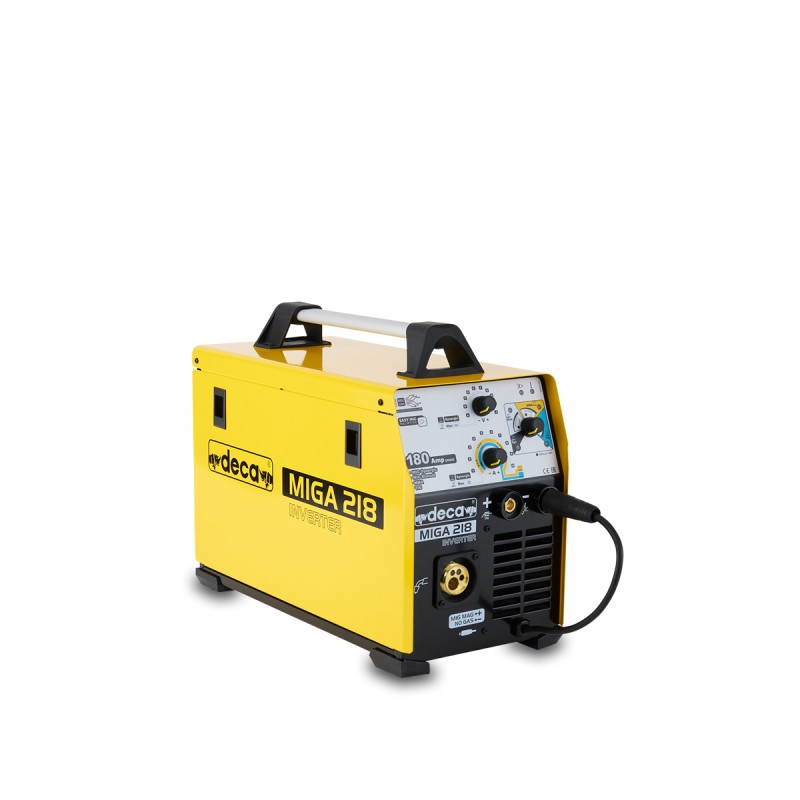

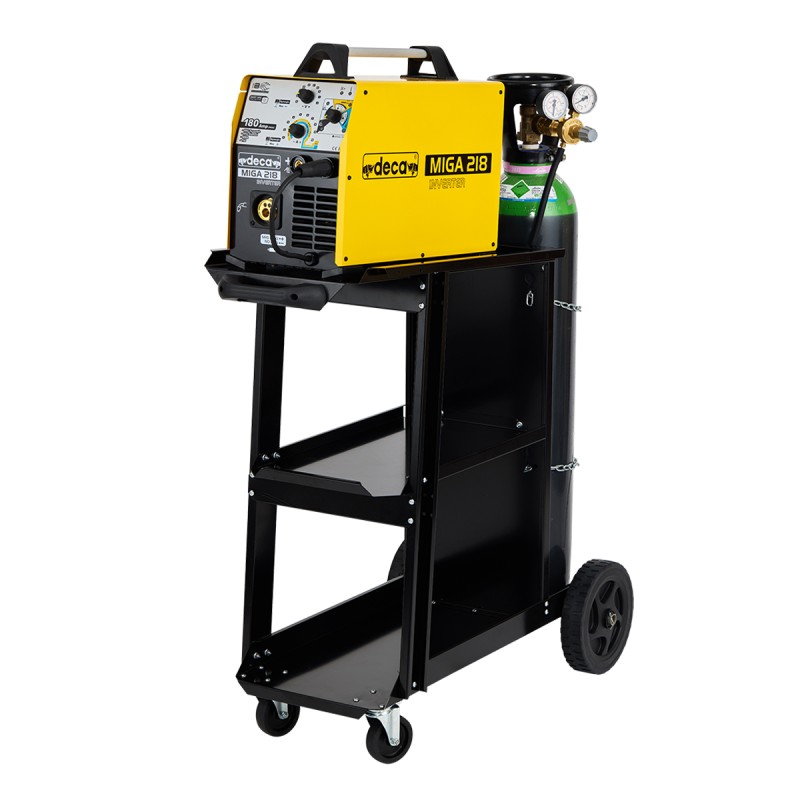

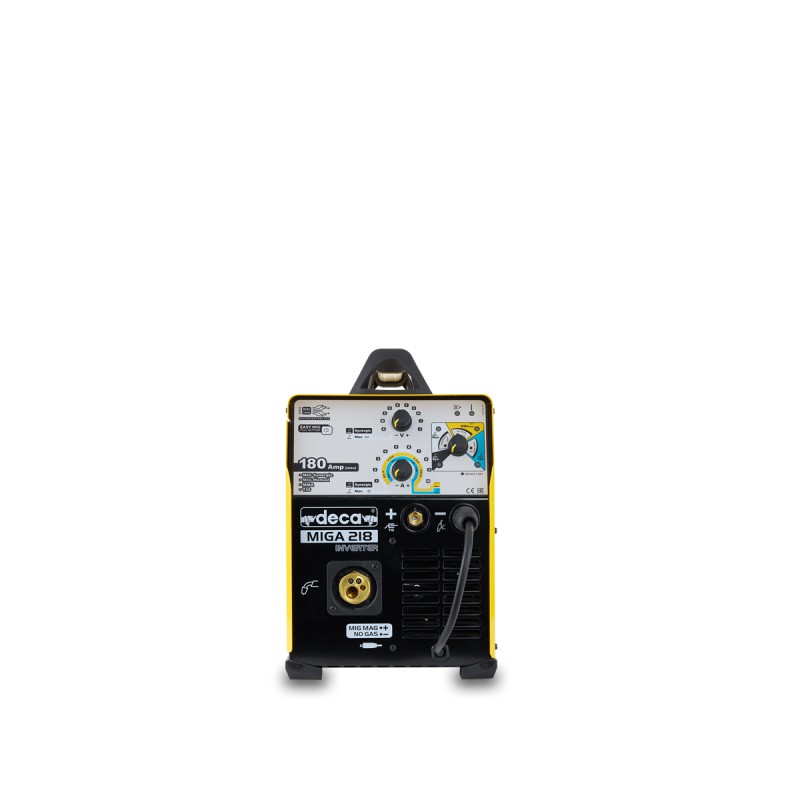

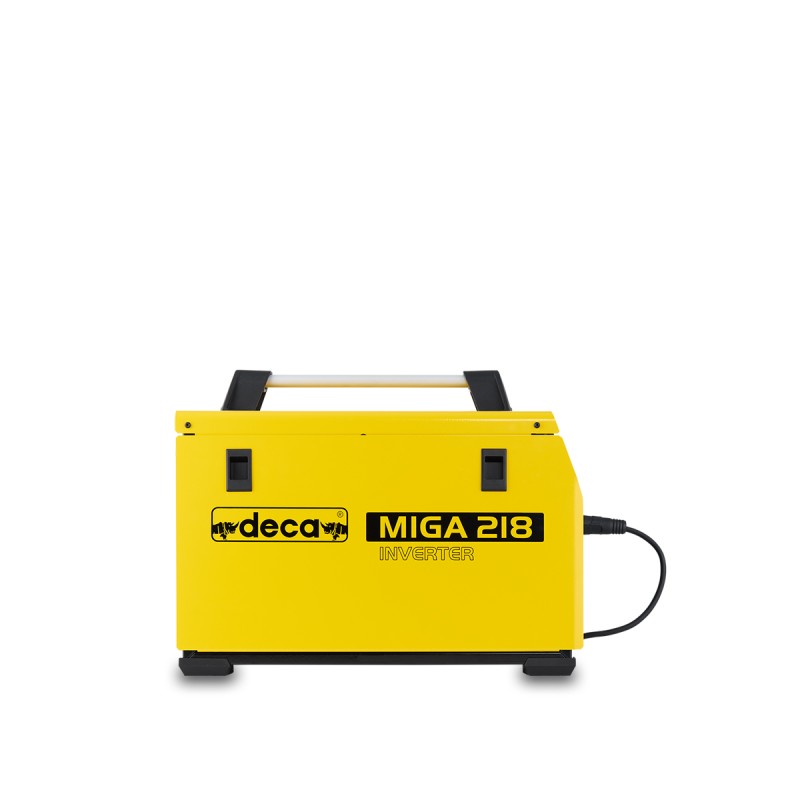

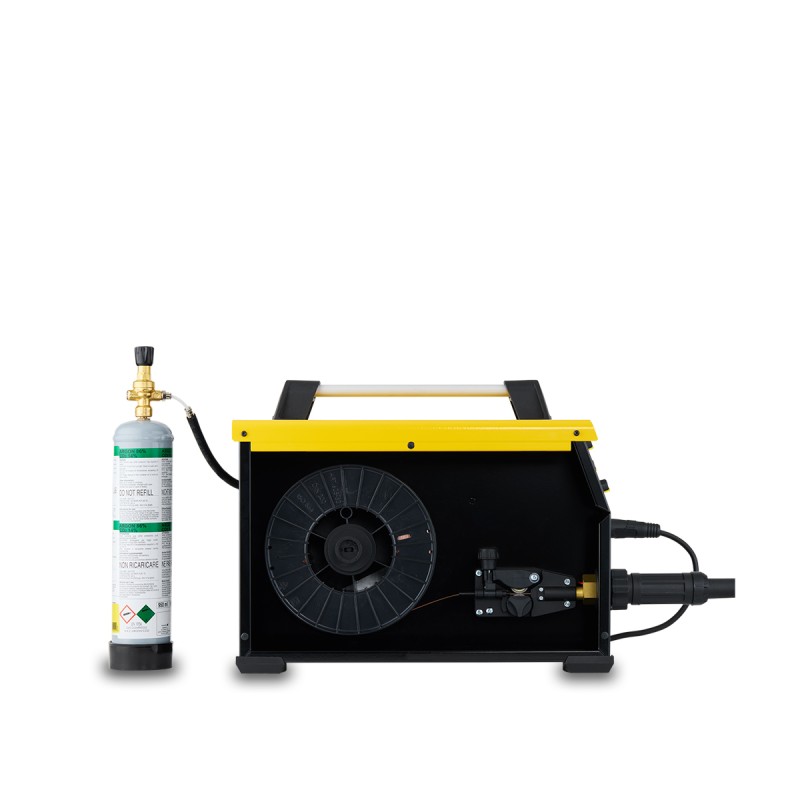

MIG / MAG INVERTER MIGA 218 230V / F1 with ACC.
DESCRIPTION
MIGA models are solders Inverter Mig / MAG and without gas, MMA and TIG easily
portable. With 4 welding processes always by hand, the MIGA series is Designed for repair work and small constructions.

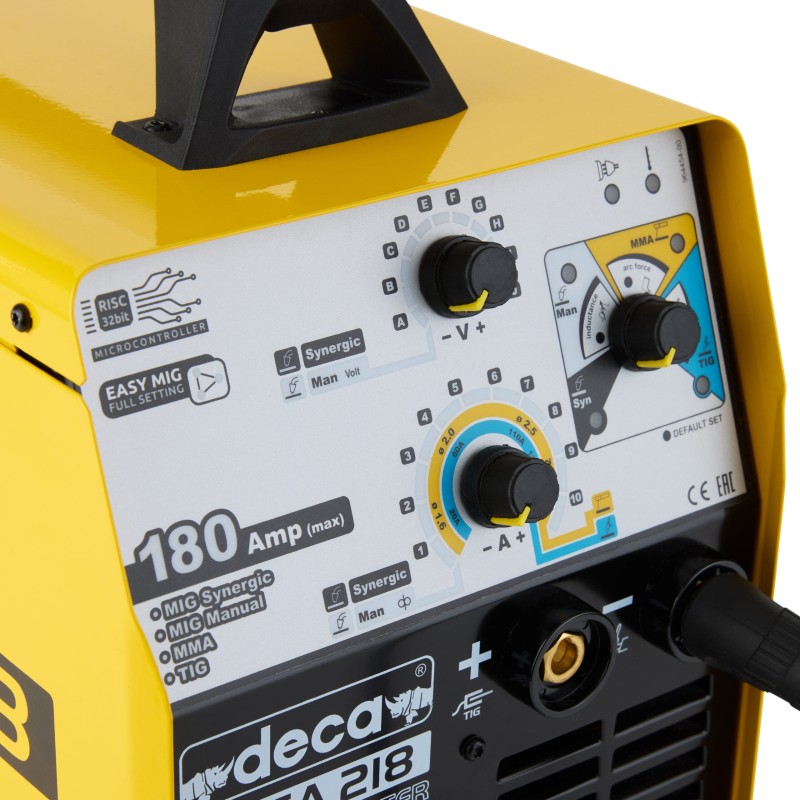

The exclusive Easy Mig Full Setting interface allows you to weld in Synergic / MIG MIG Manual / without gas / MMA / TIG LIFT.
DESCARGAR FICHA TÉCNICA
383241900.pdf
Mi Descargar ficha técnica del producto 383241900
* Taxes and transport excluded
| Alimentación | 230V/F1 |
|---|---|
| Power consumed: 60% / max. | 2.2 / 3.5 kW |
| Fusible | 16 Amp. |
| Generador compatible | 5 kW / kva. |
| Regulación de soldar | 10 - 180 MIG-TIG / 10-150 MMA AMP. |
| Servicio EN60974-1 (40ºC) | MIG-TIG 140A-25% / MMA 120A-25% MIG-TIG 90A-60% / MMA 85A-60% AMP. |
| Tensión en vacío | 86 Volt. |
| Diámetro hilo acero | 0.6 - 0.8 - 0.9 mm. |
| Diameter thread stainless steel. | 0.8 mm. |
| Diameter thread aluminum | 0.8 - 1.0 mm. |
| Diameter tubular thread | 0.8 - 0.9 - 1.0 - 1.2 mm. |
| Ø Bobina hilo | 100 - 200 mm. |
| Electrodos utilizables | MMA 1,6-3,2 / tig 1-4.0 Ø mm. |
| Connector Dinse | 25 mm. |
| Antorcha EURO | SI |
| Peso Neto/Bruto | 9.5 / 13 kg. |
| Dimensión aparato | 452 x 220 x 345 mm. |
| Dimensiones embalaje | 525 x 275 x 410 mm. |
