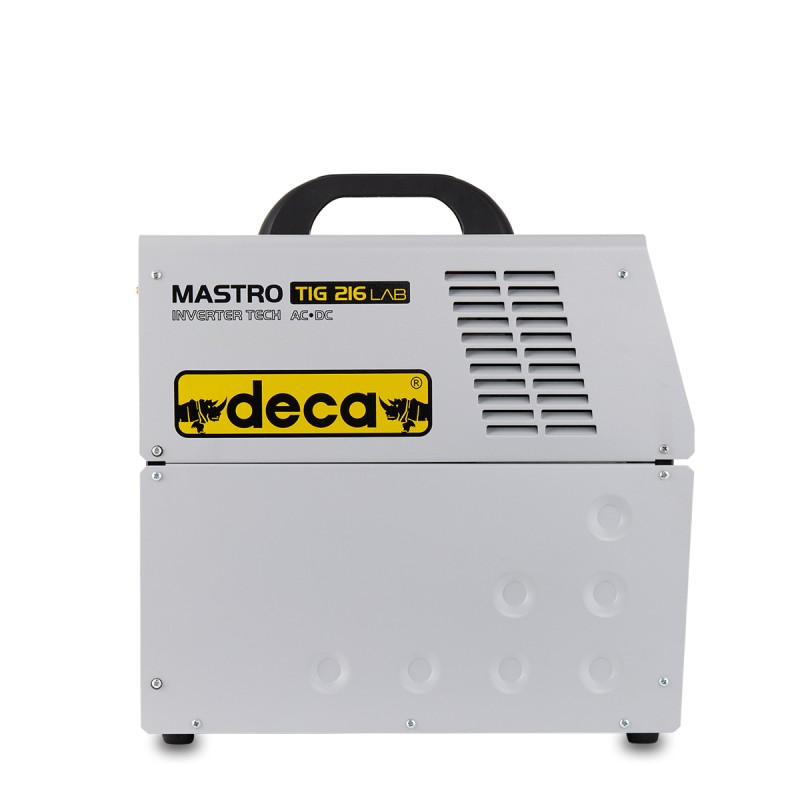

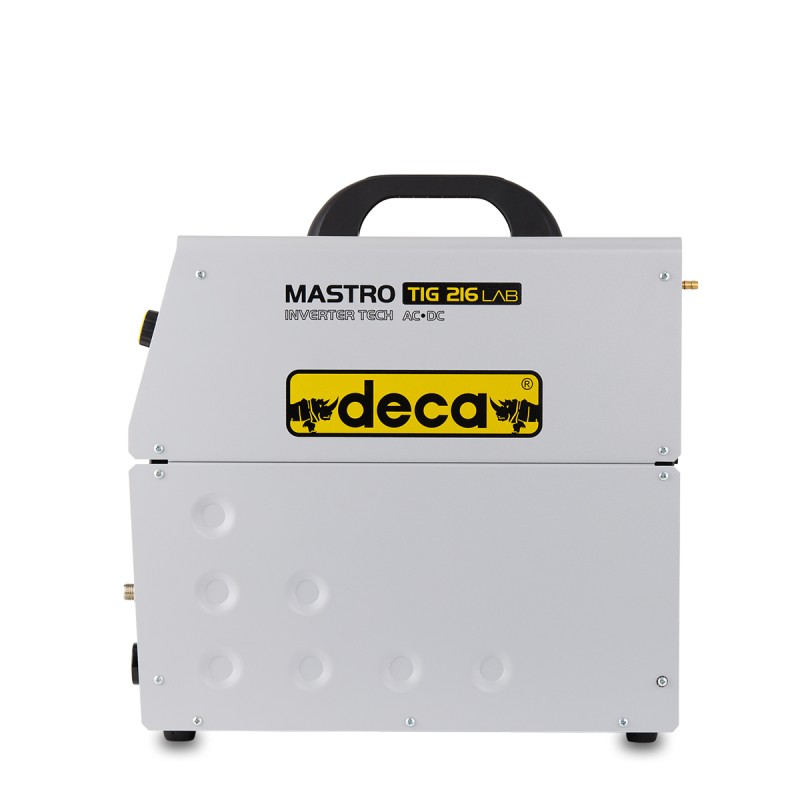

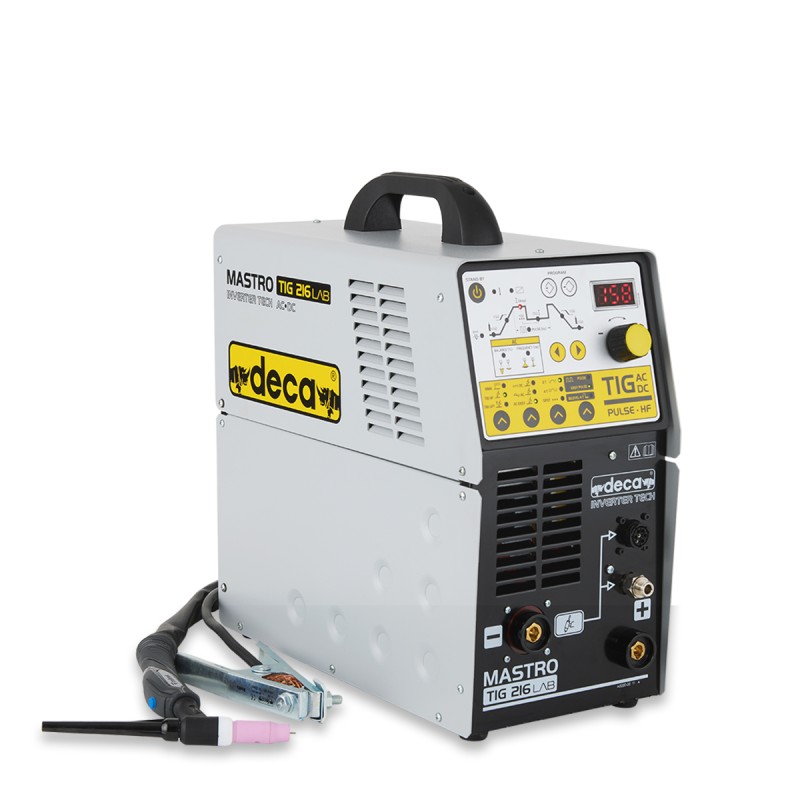

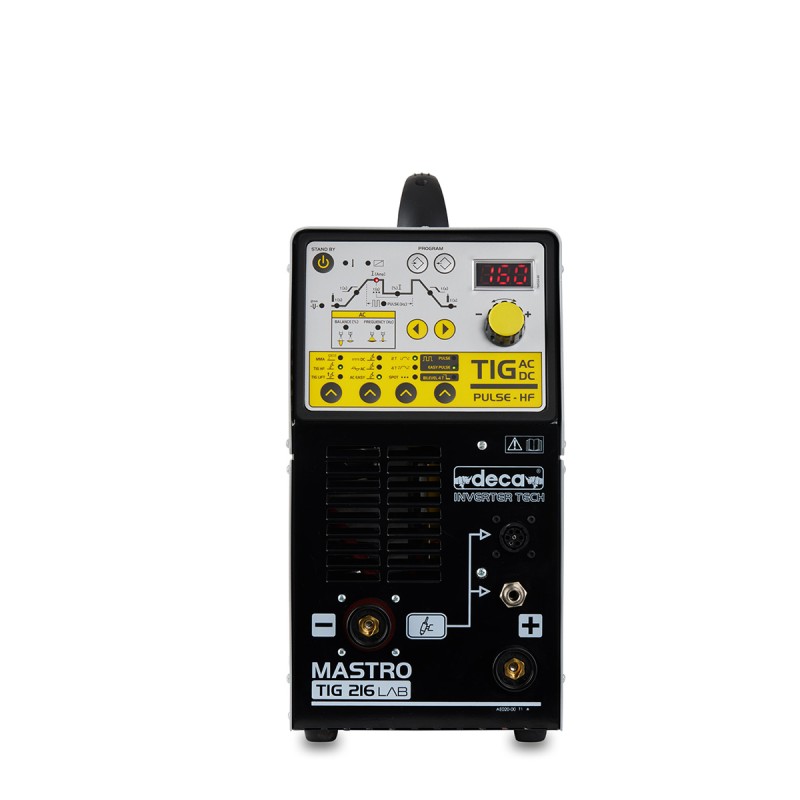

TIG Inverter Mastrotig 216 AC / DC Lab 230V / F1 with ACC.
DESCRIPTION
TIG AC / DC Welding Machine Press and MMA Mastrotig 216 AC / DC Lab.
Mastrotig 216 AC / DC Lab is a reliable welding machine designed for
More complex welding operations.
Delivery 160 AMPERS of DCTO. The supply voltage is single-phase
230 volts. In TIG mode pressed it allows better control of the welding bath.
This is especially true for welding in position or on plates
metal. In TIG mode with DC current (DC): it is perfect for steel welding
Sweet, stainless copper, casting and titanium. In TIG mode with alternating current (AC)
Solder aluminum and its alloys (AL, ALSI, ALMG, ALMN).DESCARGAR FICHA TÉCNICA
382284200.pdf
Mi Descargar ficha técnica del producto 382284200
* Taxes and transport excluded
| Alimentación | 230V/F1 |
|---|---|
| Power consumed: 60% / max. | 2/4 kW |
| Fusible | 16 Amp. |
| Generador compatible | 6 kW / kva. |
| Regulación de soldar | 5 - 160 TIG / 20-130 MMA AMP. |
| Servicio EN60974-1 (40ºC) | MMA 130A-25% / TIG 160A-20% MMA 80A-60% / TIG 85A-60% AMP. |
| Tensión en vacío | 105 Volt. |
| Electrodos utilizables | MMA 1,6-3,2 / tig 1-3.2 Ø mm. |
| Connector Dinse | 25 mm. |
| Peso Neto/Bruto | 12/16,35 kg. |
| Dimensión aparato | 418 x 200 x 415 mm. |
| Dimensiones embalaje | 505 x 300 x 465 mm. |
