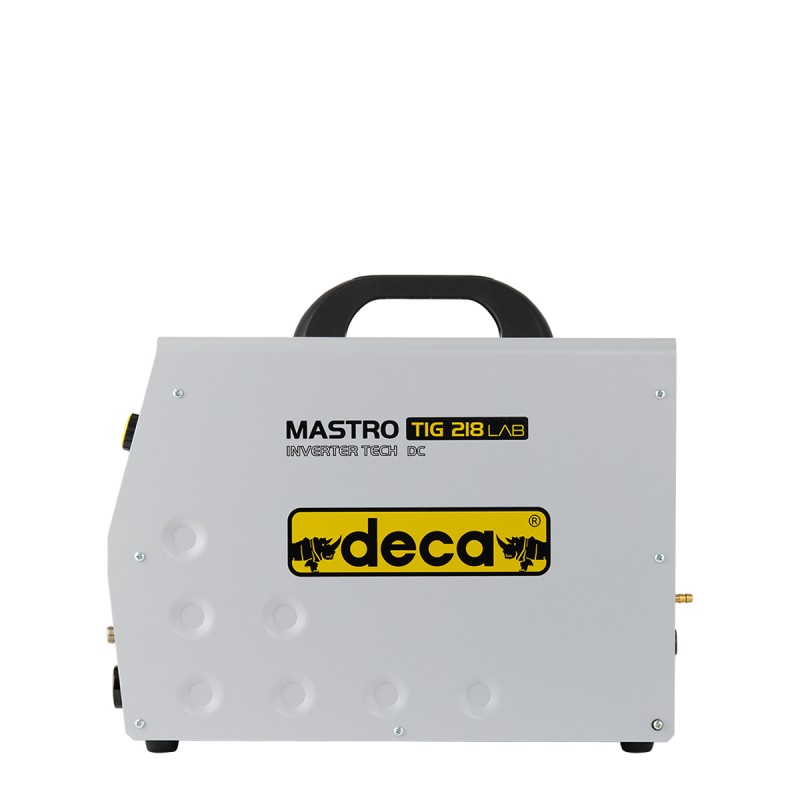

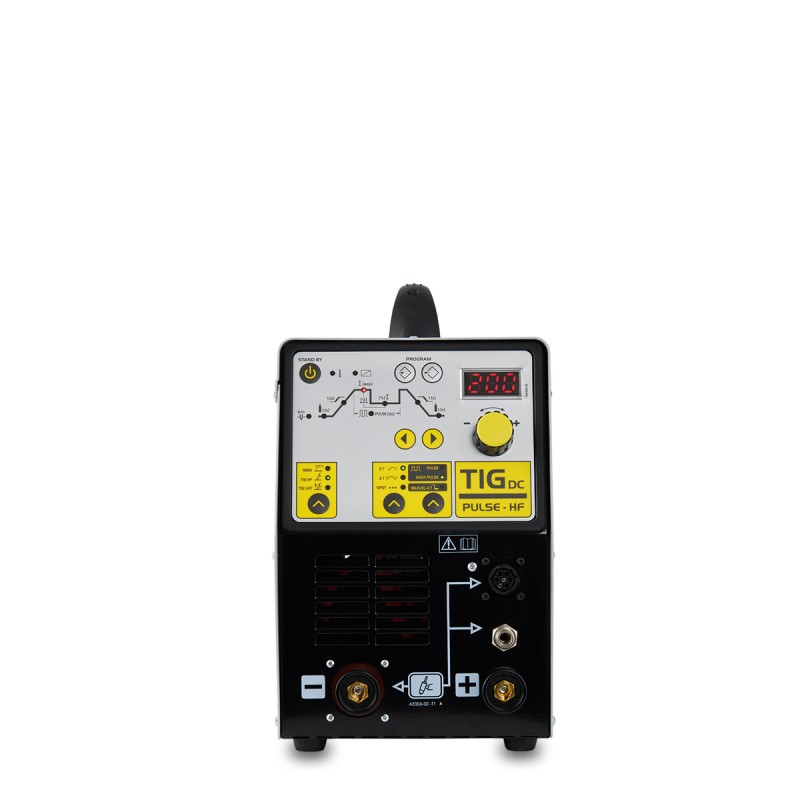

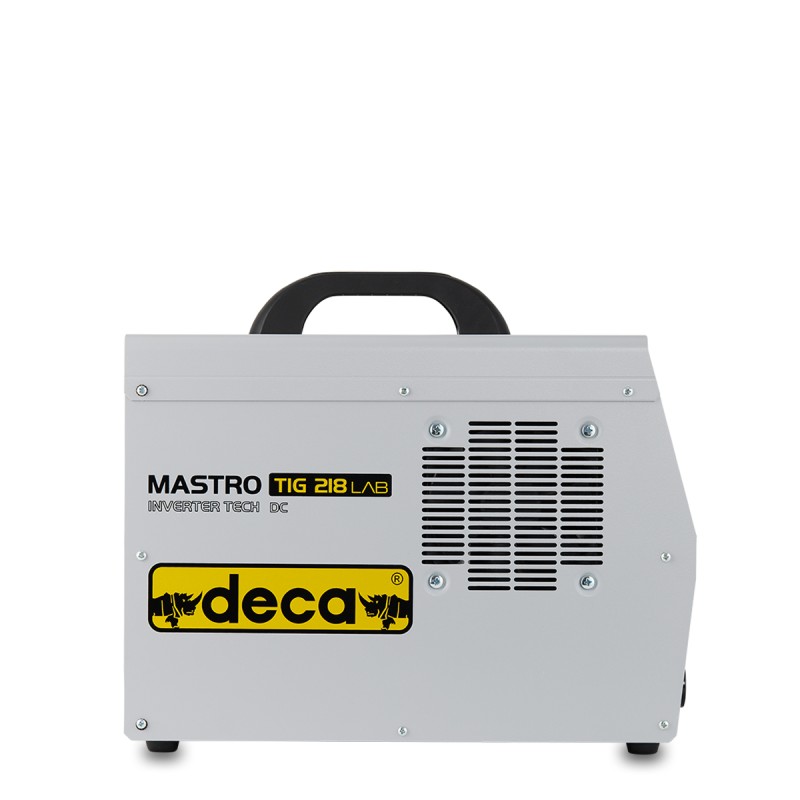

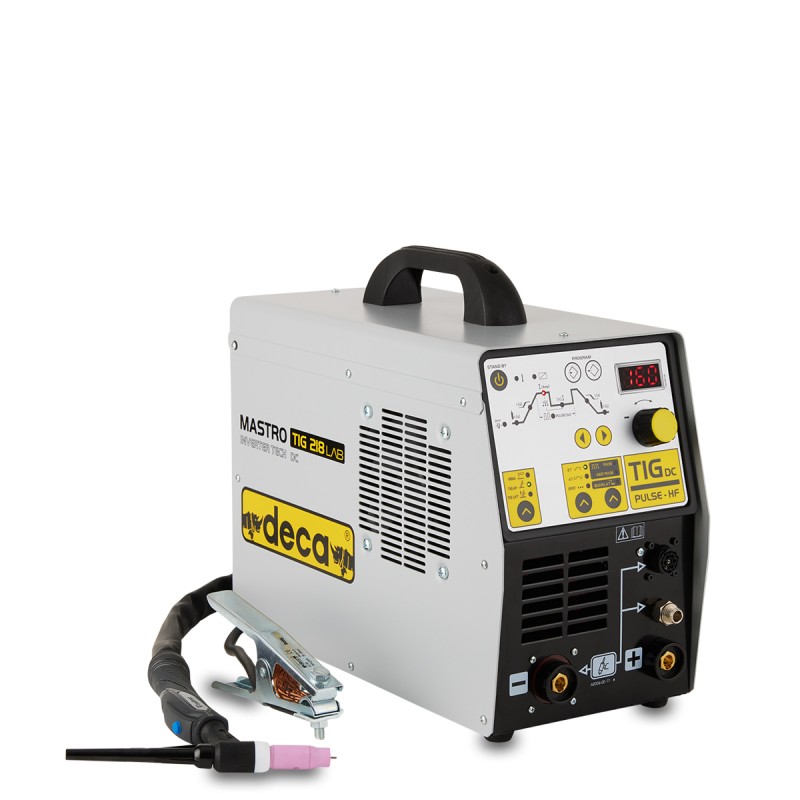

TIG Inverter Mastrotig 218 DC Lab 230V / F1 with ACC.
DESCRIPTION
Mastrotig 218 Lab is a tig DC welder pressed and MMA designed for operations
of welding more complex.
Suitable for welding sweet steel, stainless steel, copper, cast iron and titanium.
Delivery 200 Amps of DC Continuous. The supply voltage is single-phase
230 volts. In TIG mode pressed it allows better control of the welding bath. This
It is especially true for welding in position or on metallic plates. The

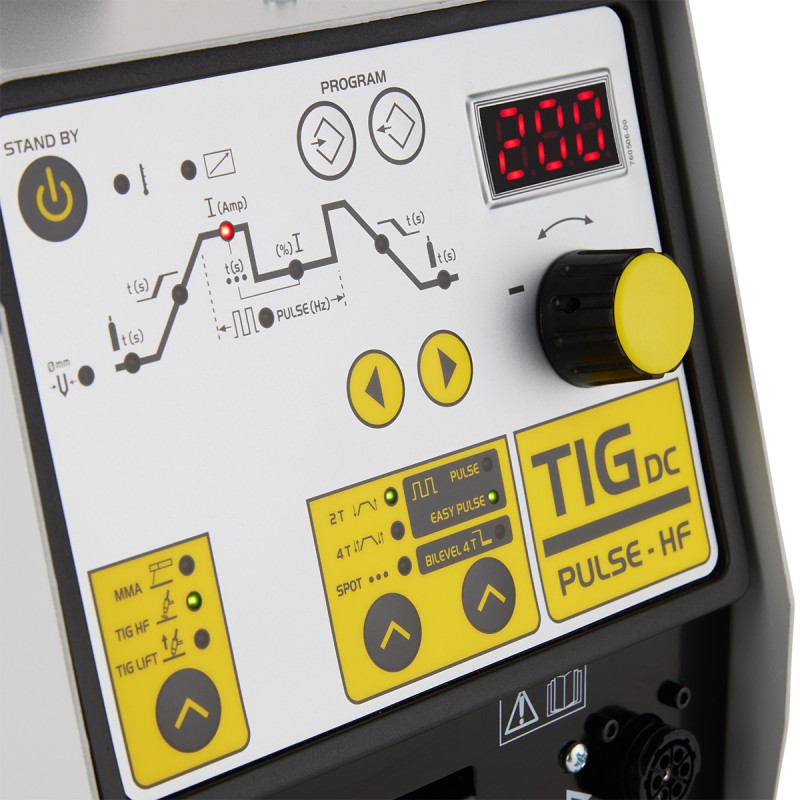

Easy function Press Automatically adjust the base current and pulse frequency
According to the established peak current. Considerably simplifies the process
of welding tig ca.DESCARGAR FICHA TÉCNICA
382284100.pdf
Mi Descargar ficha técnica del producto 382284100
* Taxes and transport excluded
| Alimentación | 230V/F1 |
|---|---|
| Power consumed: 60% / max. | 3.3 / 5.7 kW |
| Fusible | 25 AMP. |
| Generador compatible | 9 kW / kva. |
| Regulación de soldar | 5 - 200 TIG / 20-180 MMA AMP. |
| Servicio EN60974-1 (40ºC) | MMA 180A-30% / TIG 200A-30% MMA 130A-60% / TIG 140A-60% AMP. |
| Tensión en vacío | 90 Volt. |
| Electrodos utilizables | MMA 1,6-5 / TIG 1-4 Ø mm. |
| Connector Dinse | 25 mm. |
| Peso Neto/Bruto | 9/13,5 kg. |
| Dimensión aparato | 430 x 200 x 344 mm. |
| Dimensiones embalaje | 505 x 300 x 465 mm. |
