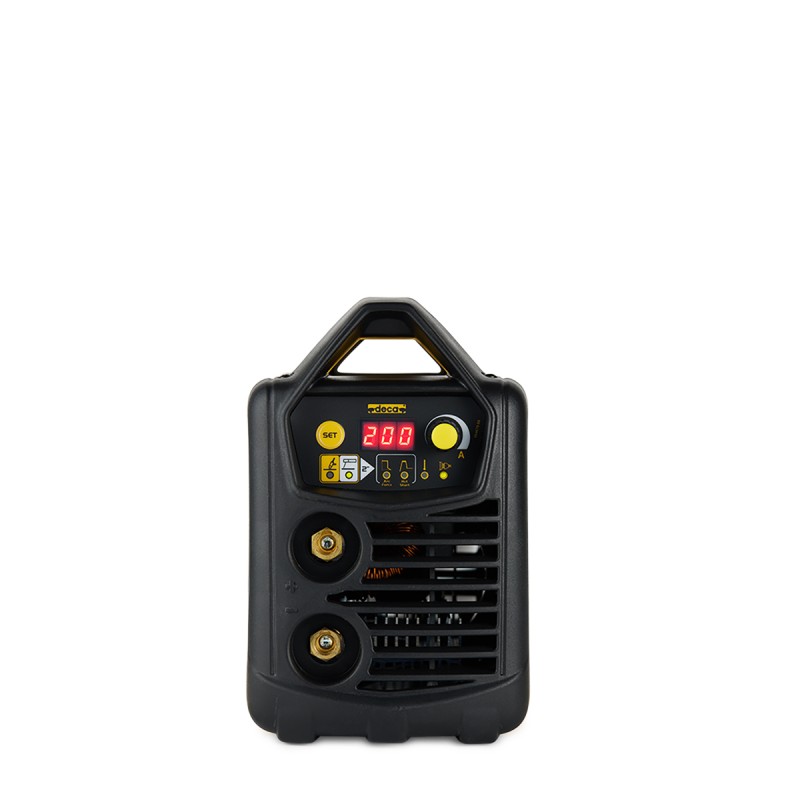

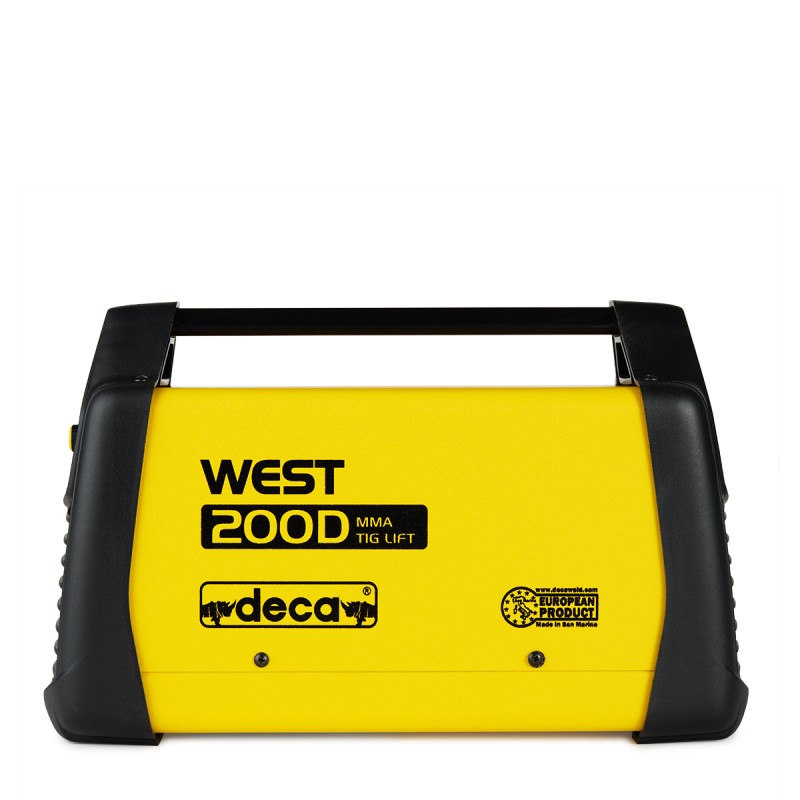

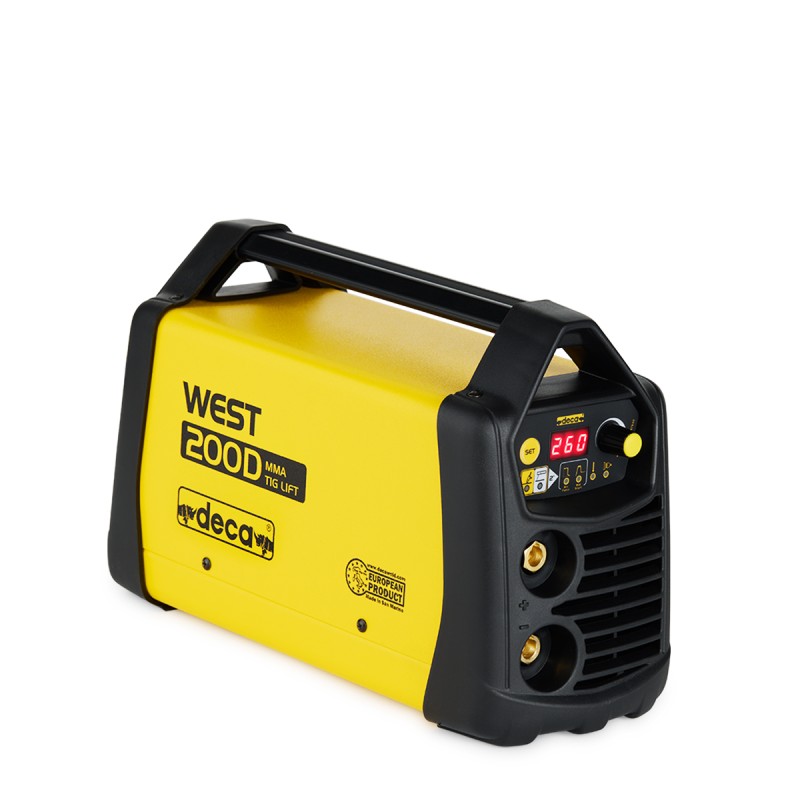

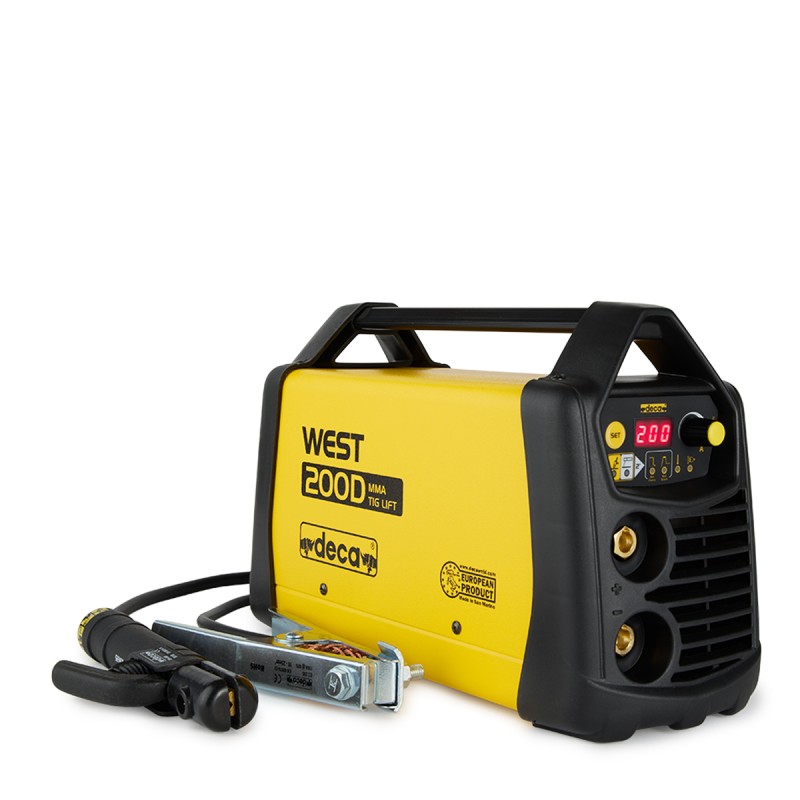

Inverter MMA West 200D 230V / F1 with ACC.
DESCRIPTION
The West range is adequate for both workshop and outdoor use and is ideal
For maintenance work in the civil, agricultural and light carpentry sector.
The West 200D model Delivery 200 to DC for welding electrodes from 1.6 to 5.0 mm
Diameter with a high work cycle for your class.

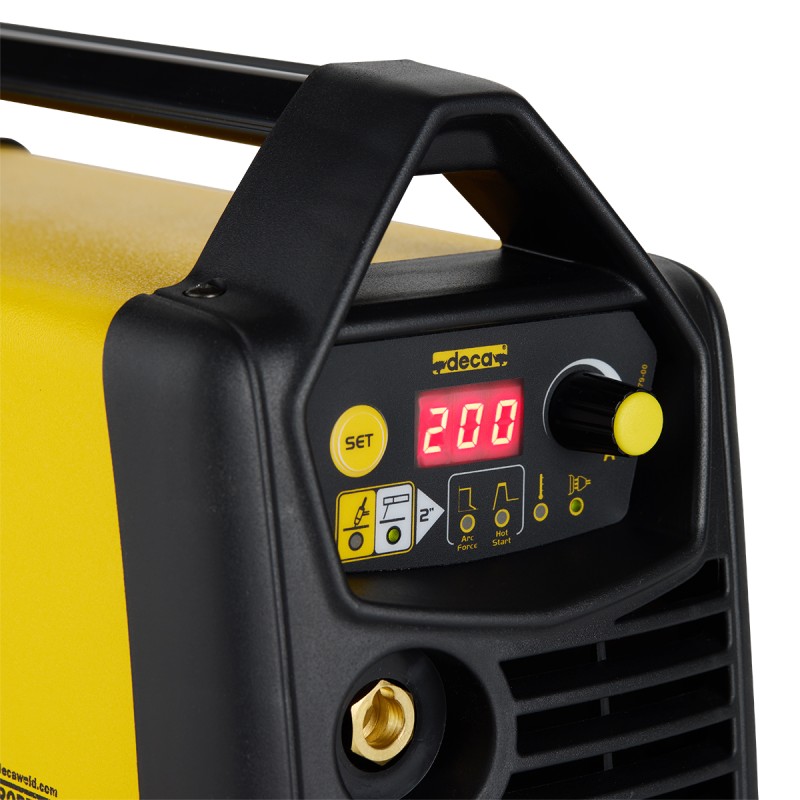

West 200D is equipped with a screen to configure the welding parameters.
Adjustable hot boot causes the light on the arc is extremely
Easy, even with the most difficult electrodes. Adjustable arc strength
helps increase penetration and prevent the electrode from adhering to the piece of
work.DESCARGAR FICHA TÉCNICA
381278480.pdf
Mi Descargar ficha técnica del producto 381278480
* Taxes and transport excluded
| Alimentación | 230V/F1 |
|---|---|
| Power consumed: 60% / max. | 2.8 / 6.5 kW |
| Fusible | 20 AMP. |
| Generador compatible | 8 kW / kva. |
| Regulación de soldar | 10 - 200 Amp. |
| Servicio EN60974-1 (40ºC) | MMA 200A-20% / TIG 200A-25% * MMA 110A-60% / TIG 120A-60% AMP. |
| Tensión en vacío | 100 Volt. |
| Electrodos utilizables | MMA 1,6-4 / tig 1-3.2 Ø mm. |
| Connector Dinse | 25 mm. |
| Peso Neto/Bruto | 3.9 / 5.8 kg. |
| Dimensión aparato | 337 x 134 x 207 mm. |
| Dimensiones embalaje | 345 x 200 x 225 mm. |
