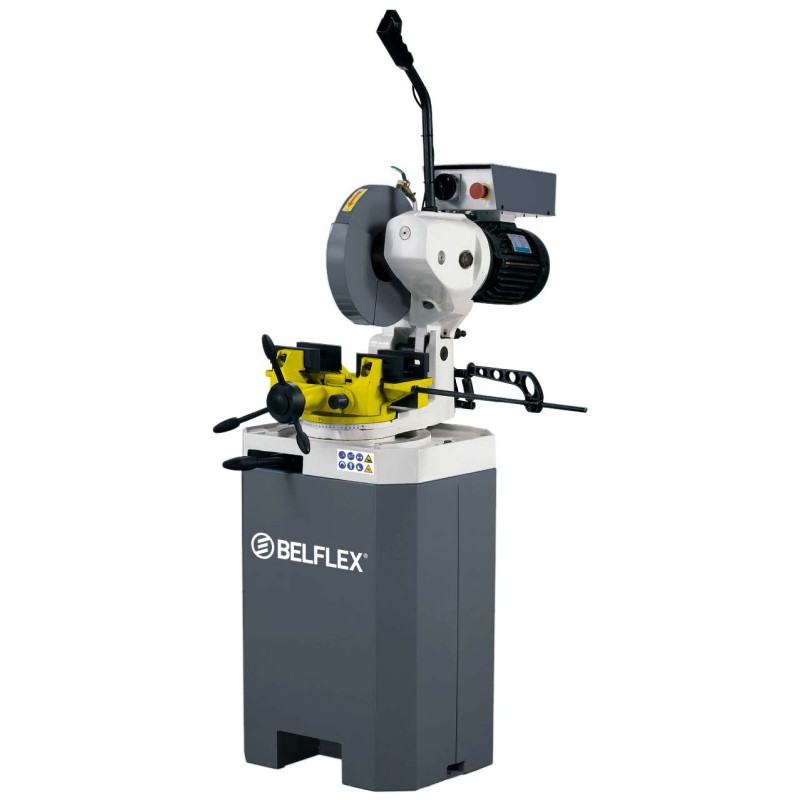

HSS BF-315-TF2 - 380V / F3 + 2V Pedestal
DESCRIPTION
Manual jaw Swivel head + 45º. Refrigerant pump. Low voltage switch. Disk protector, according to standards. Emergency switch Machines manufactured according to EC standards. Pedestal and Disc Included Series
DESCARGAR FICHA TÉCNICA
421295100.pdf
Mi Descargar ficha técnica del producto 421295100
* Taxes and transport excluded
| Alimentación | 400V/F3 |
|---|---|
| Potencia | 0.75 / 1,3 - 1 / 1,7 kW-HP |
| Velocidad1 | 18 - 36 r.p.m. |
| Cutting capacity 90° (redondo,rectangular, squared) | 100 / 140x90 / - mm. |
| Cutting capacity 45o (round, rectangular, squared) | 90 / 100x90 / - mm. |
| Vice opening | 145 mm. |
| Disc diameter | 315x2,5x40 mm. |
| Peso Neto/Bruto | 227/261 kg. |
| Dimensiones | 980x620x930 / 780x600x500 mm. |
