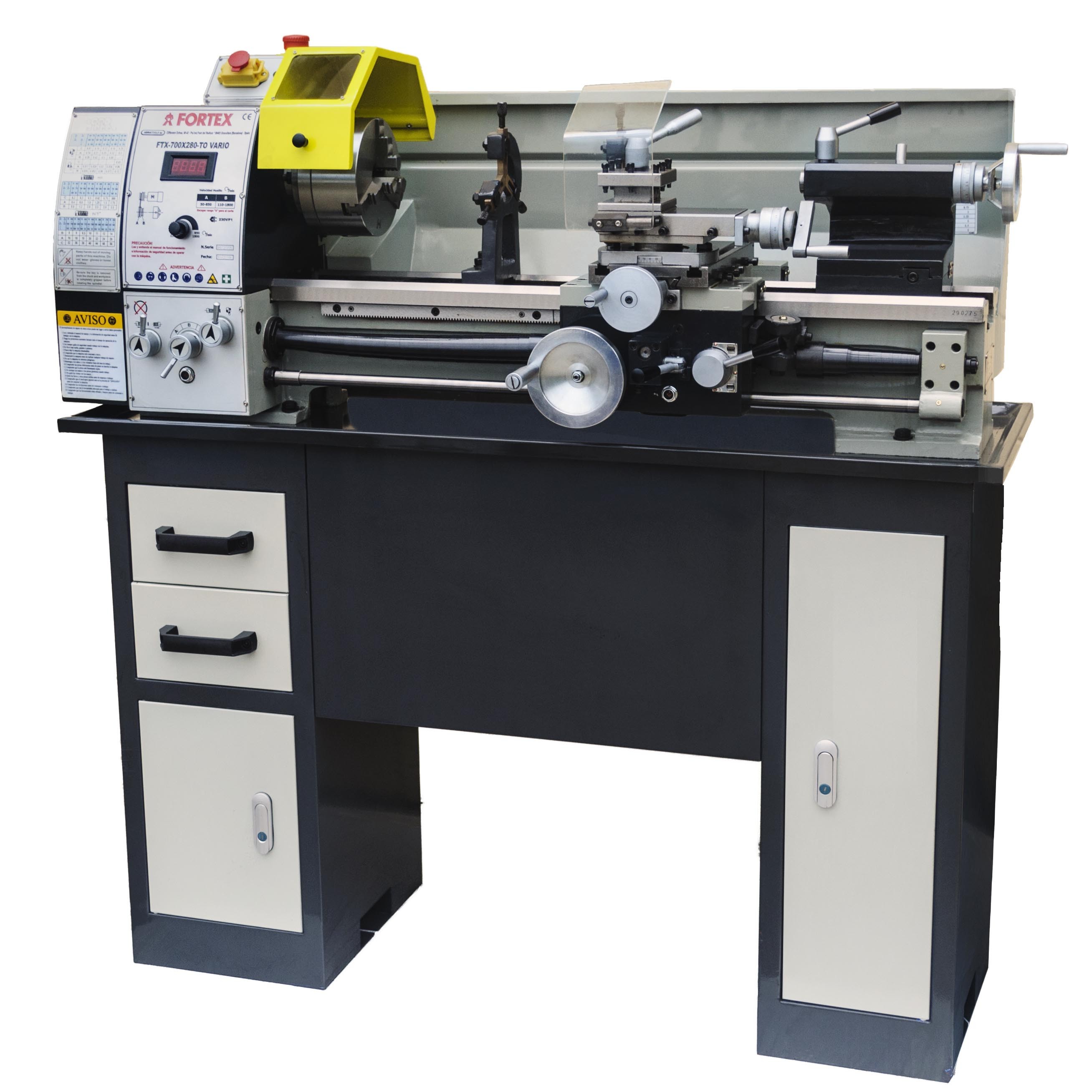

LATHE FTX-700X280-TO VARIO*230V/F1*1,5KW +PEDESTAL LUXE (BL)
DESCRIPTION
Automatic progression of the longitudinal and transversal car. Guides in double V, temperate, and rectified. Precision ring on conical bearings. Adjustable counters in guides. Easy counterpoint and cylinder compensation marked in metric and inches. Separate threaded bar for threading functions. Reversible engine. Reversible thread bar for left-hand threading. Great intermediate trolley with two T slots. Stopper microinterruptor by opening of pulley cover or plate protector. Tail and turret dish protector. Emergency stop. Dial thread indicator. Machines manufactured according to CE standards.
DESCARGAR FICHA TÉCNICA
441105000.pdf
Mi Descargar ficha técnica del producto 441105000
* Taxes and transport excluded
| Coordinate viewer X/Y | NO |
|---|---|
| Alimentación | 230V/F1 |
| Potencia | 1.5 - 2 Kw-Hp |
| Change speeds | VARIABLE |
| Diameter on bench | 280 mm. |
| Diameter on neckline | - mm. |
| Diameter on cart | 165 mm. |
| Banking width | 165 mm. |
| Inner diameter spindle | 38 mm. |
| Distance between points | 700 mm. |
| Point | MT5 |
| Cono contrapoint | MT3 |
| Diameter counterpoint | 30 mm. |
| Tour counterpoint | 80 mm. |
| Número de velocidades | 2 - VARIABLE |
| Rango velocidades | 50 - 2000 r.p.m. |
| Longitudinal forward range | 0.07 - 0.40 mm/rev. |
| Cross-sectional forward range | 0.02 - 0.28 mm/rev. |
| A. Rapid longitudinal intermediate car | - m/min. |
| A. Cross-sectional carriage | - m/min. |
| Rango metric steps | 18 TIPOS / 0.2 - 3.5 mm. |
| Rank inches | 21 TIPOS / 8 - 56 tpi |
| Rango diametric steps | - d.p. |
| Rango modular steps | - m.p. |
| Peso Neto/Bruto | 230 Kg. |
| Dimensiones | 1400X700X680 mm. |
