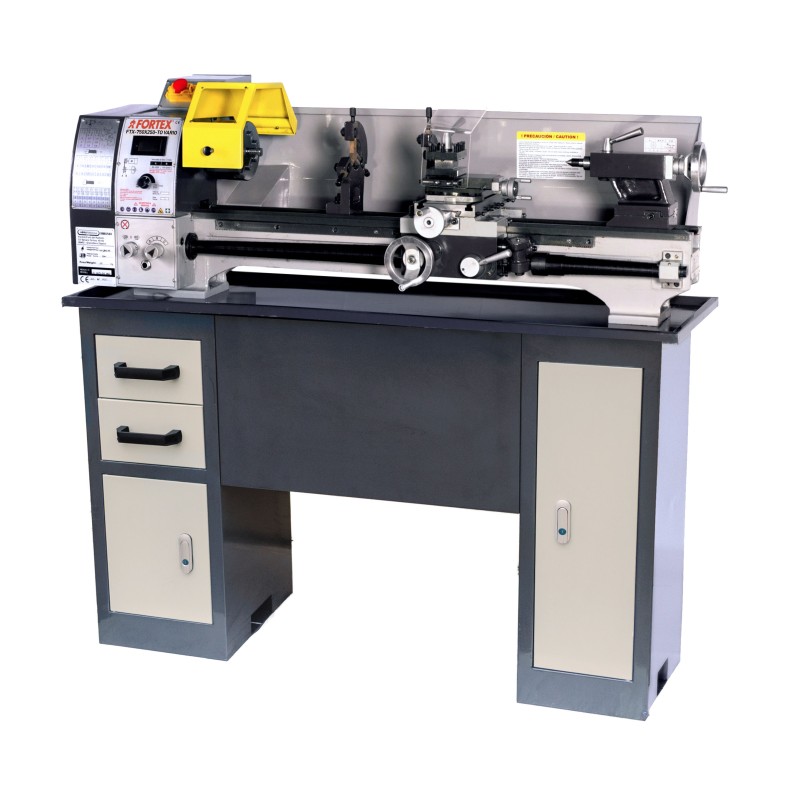

LATHE FTX-750X250-TO VARIO *230V/F1 *1,1KW WITH PEDESTAL LUXE
DESCRIPTION
Two speed bands allow maximum tightening at lower speeds. Guides in double V, tempered and rectified. Precision ring on conical bearings. Adjustable counters in guides. Easy counterpoint and cylinder compensation marked in metric and inches. Reversible engine. Reversible thread bar for left-hand threading. Dial thread indicator. Tail and turret dish protector. Emergency stop. Microinterruptor stop by opening of pulley cover or protective dish. Machines manufactured according to CE standards.
DESCARGAR FICHA TÉCNICA
441110000.pdf
Mi Descargar ficha técnica del producto 441110000
* Taxes and transport excluded
| Coordinate viewer X/Y | NO |
|---|---|
| Alimentación | 230V/F1 |
| Potencia | 1.1 - 1.5 Kw-Hp |
| Change speeds | VARIABLE |
| Diameter on bench | 250 mm. |
| Diameter on neckline | - mm. |
| Diameter on cart | 140 mm. |
| Banking width | 132 mm. |
| Inner diameter spindle | 26 mm. |
| Distance between points | 750 mm. |
| Point | MT4 |
| Cono contrapoint | MT2 |
| Diameter counterpoint | 30 mm. |
| Tour counterpoint | 70 mm. |
| Número de velocidades | 2 - VARIABLE |
| Rango velocidades | 50 - 2000 r.p.m. |
| Longitudinal forward range | 0.07 - 0.40 mm/rev. |
| Cross-sectional forward range | - mm/rev. |
| A. Rapid longitudinal intermediate car | - m/min. |
| A. Cross-sectional carriage | - m/min. |
| Rango metric steps | 18 TIPOS / 0.2 - 3.5 mm. |
| Rank inches | 21 TIPOS / 8 - 56 tpi |
| Rango diametric steps | - d.p. |
| Rango modular steps | - m.p. |
| Peso Neto/Bruto | 140 Kg. |
| Dimensiones | 1500X560X570 mm. |
