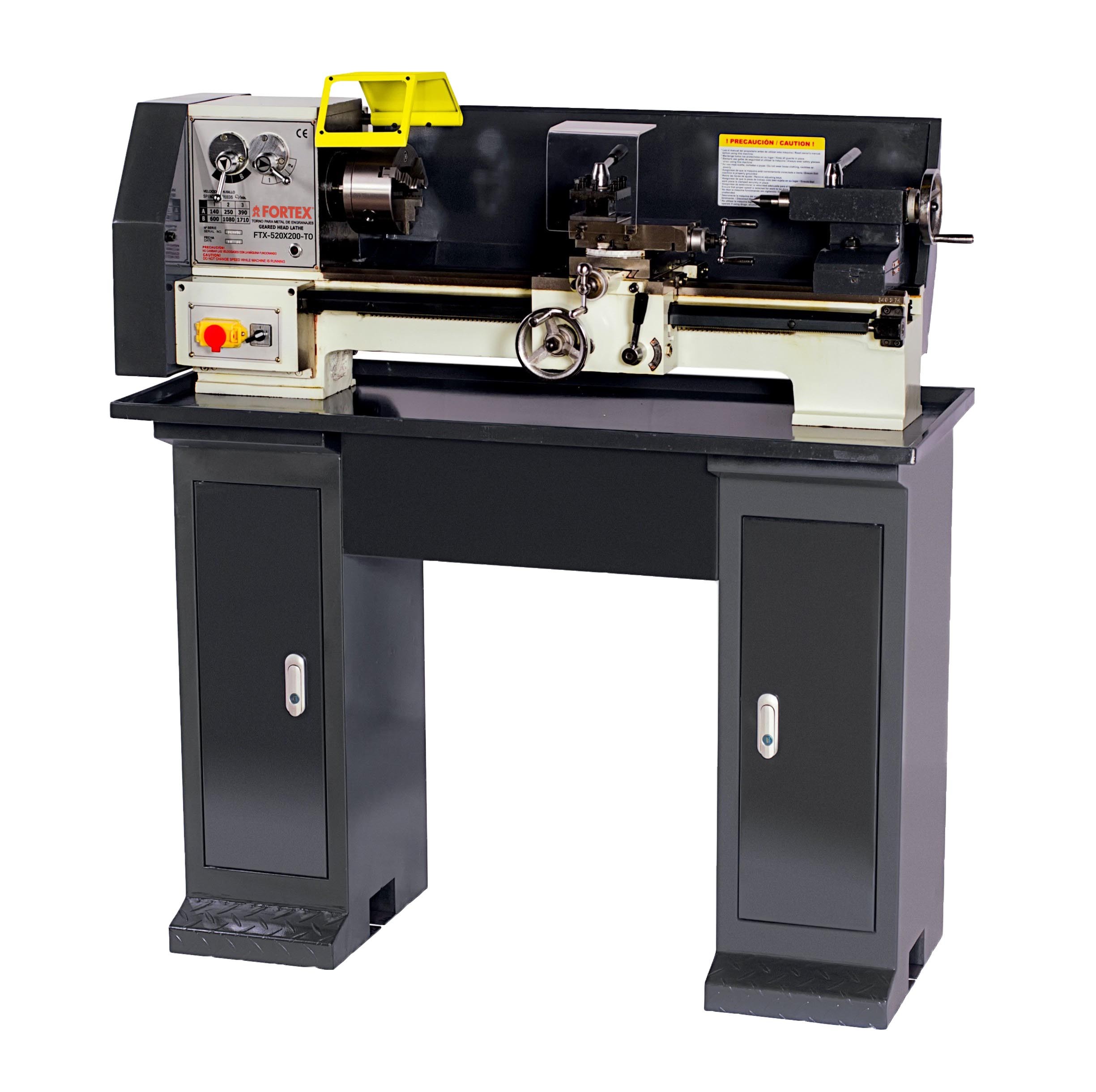

FTX-520X200-TO *230V-F1 550W WITH BANCADA
DESCRIPTION
Tones for working metals, professional use, robust design with prismatic guides laminated and rectified. With guide shaft for automatic advances. Fast longitudinal and transverse route of the intermediate car. Microinterruptor stop by opening of pulley cover or protective dish. Tail and turret dish protector. Emergency stop. Speed change per lever. Machines manufactured according to CE standards.
DESCARGAR FICHA TÉCNICA
441220000.pdf
Mi Descargar ficha técnica del producto 441220000
* Taxes and transport excluded
| Coordinate viewer X/Y | NO |
|---|---|
| Alimentación | 230V/F1 |
| Potencia | 0,55 - 0,75 Kw-Hp |
| Change speeds | ENGRATMENTS |
| Diameter on bench | 200 mm. |
| Diameter on neckline | - mm. |
| Diameter on cart | 125 mm. |
| Banking width | 125 mm. |
| Inner diameter spindle | 20 mm. |
| Distance between points | 520 mm. |
| Point | MT3 |
| Cono contrapoint | MT2 |
| Diameter counterpoint | 30 mm. |
| Tour counterpoint | 35 mm. |
| Número de velocidades | 6 |
| Rango velocidades | 140 - 1710 r.p.m. |
| Longitudinal forward range | 0.05 - 0.2 mm/rev. |
| Cross-sectional forward range | - mm/rev. |
| A. Rapid longitudinal intermediate car | - m/min. |
| A. Cross-sectional carriage | - m/min. |
| Rango metric steps | 11 TIPOS / 0.4 - 3 mm. |
| Rank inches | 11 TIPOS / 8 - 32 tpi |
| Rango diametric steps | - d.p. |
| Rango modular steps | - m.p. |
| Peso Neto/Bruto | 110 Kg. |
| Dimensiones | 1250X570X570 mm. |
