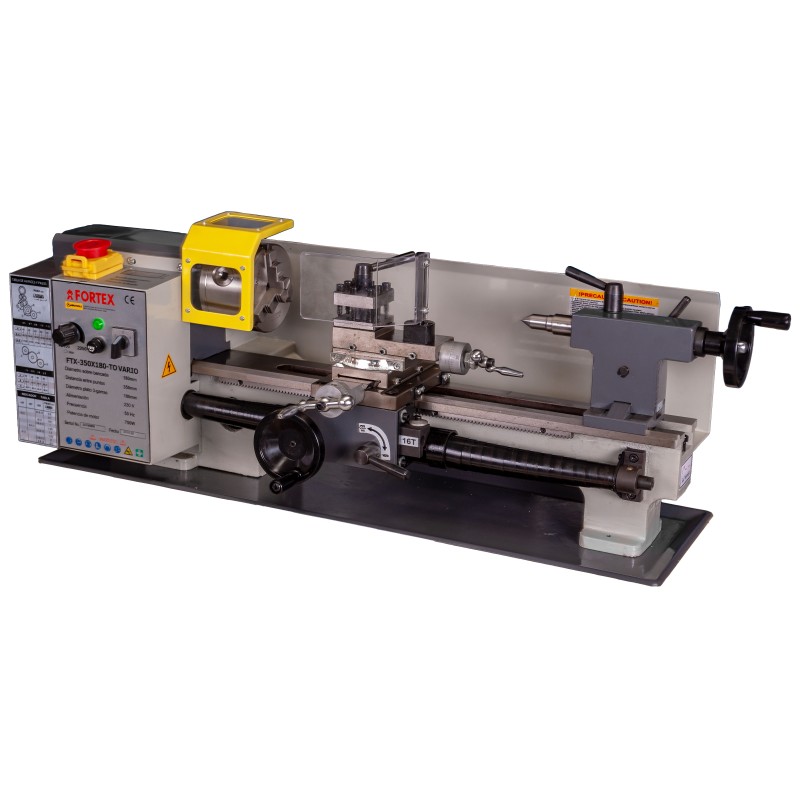

LATHE FTX-350X180-TO VARIO 230V/F1
DESCRIPTION
Tones of great versatility, high precision and robust design. Completely equipped. Electronic speed variable. Overload protection. Microinterruptor stop by opening of pulley cover or protective dish. Tail and turret dish protector. Automatic longitudinal advance. Emergency stop. Motor without buckles. Machines manufactured according to CE standards.
DESCARGAR FICHA TÉCNICA
441240000.pdf
Mi Descargar ficha técnica del producto 441240000
* Taxes and transport excluded
| Coordinate viewer X/Y | NO |
|---|---|
| Alimentación | 230V/F1 |
| Potencia | 0.75 - 1 Kw-Hp |
| Change speeds | VARIABLE |
| Diameter on bench | 180 mm. |
| Diameter on neckline | - mm. |
| Diameter on cart | 110 mm. |
| Banking width | 82 mm. |
| Inner diameter spindle | 20 mm. |
| Distance between points | 350 mm. |
| Point | MT3 |
| Cono contrapoint | MT2 |
| Diameter counterpoint | 22 mm. |
| Tour counterpoint | 65 mm. |
| Número de velocidades | 2 - VARIABLE |
| Rango velocidades | 100 - 2250 r.p.m. |
| Longitudinal forward range | 0.08 - 0.16 mm/rev. |
| Cross-sectional forward range | - mm/rev. |
| A. Rapid longitudinal intermediate car | - m/min. |
| A. Cross-sectional carriage | - m/min. |
| Rango metric steps | 9 TIPOS / 0.5 - 2.5 mm. |
| Rank inches | 8 TIPOS / 8 - 44 tpi |
| Rango diametric steps | - d.p. |
| Rango modular steps | - m.p. |
| Peso Neto/Bruto | 40 / 50 Kg. |
| Dimensiones | 810X305X315 mm. |
