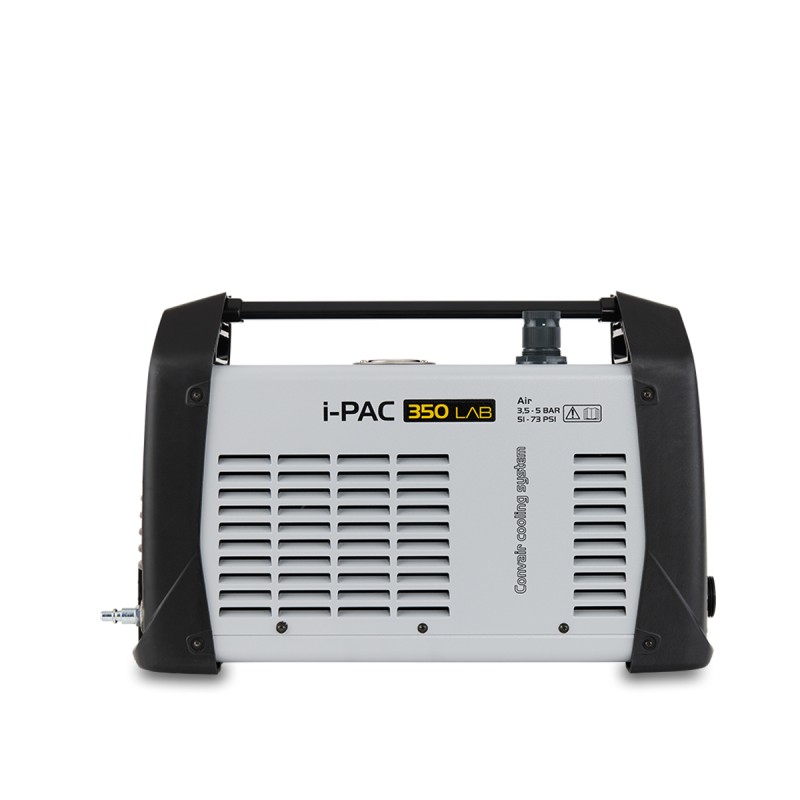

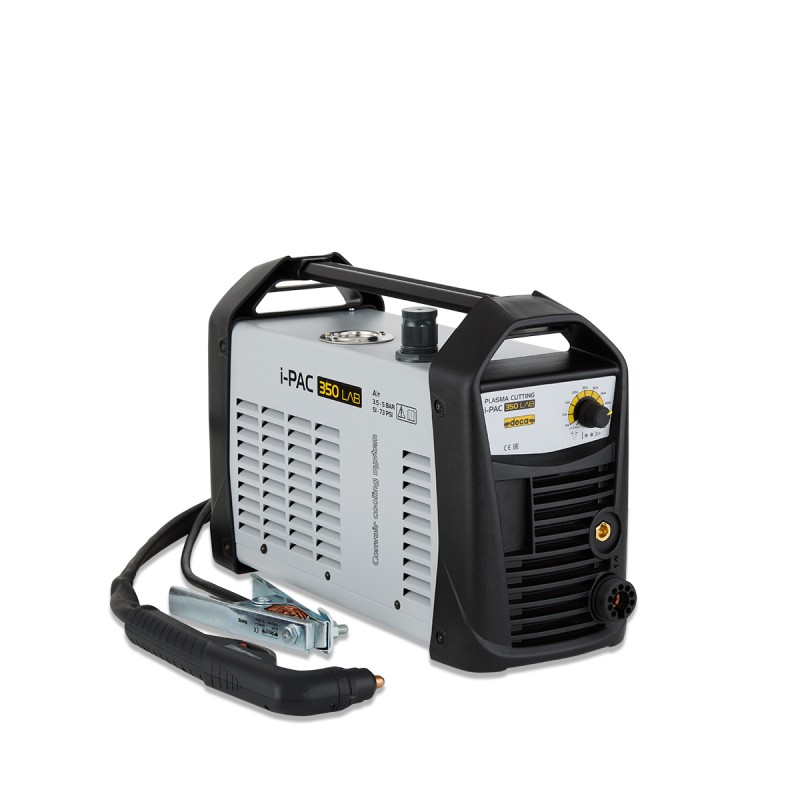

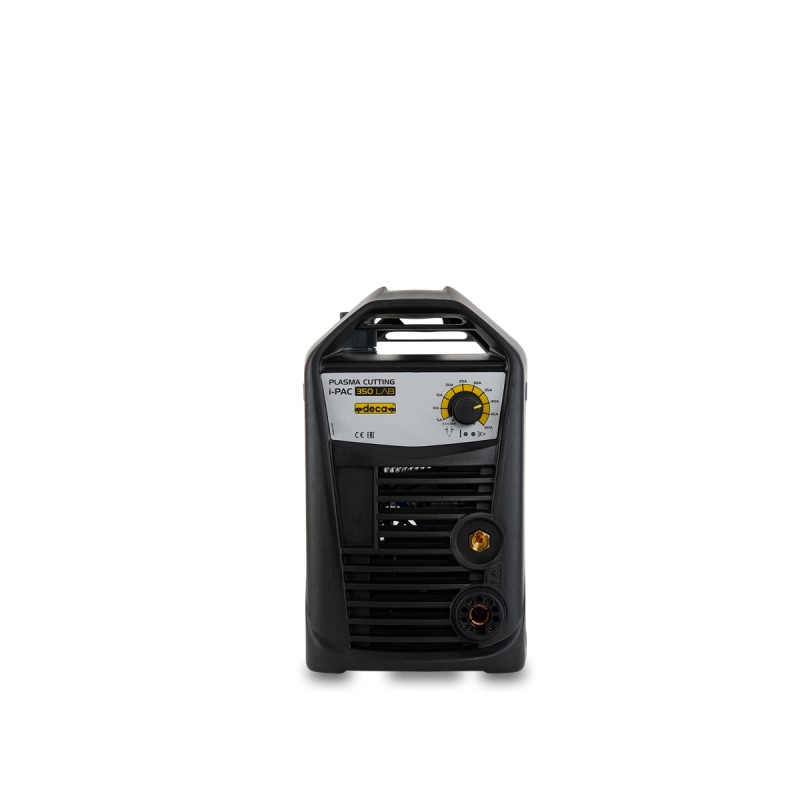

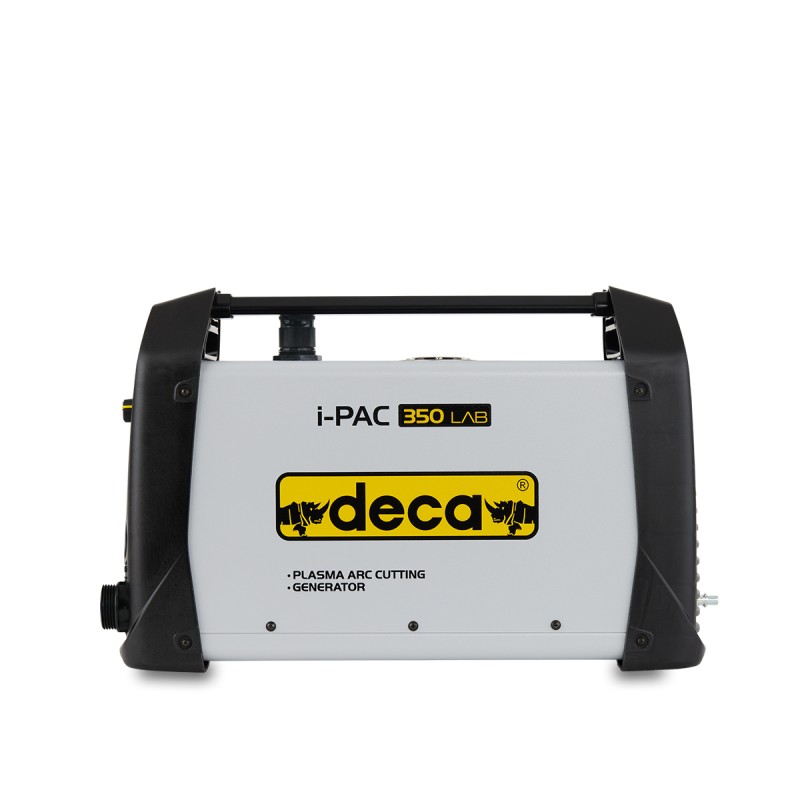

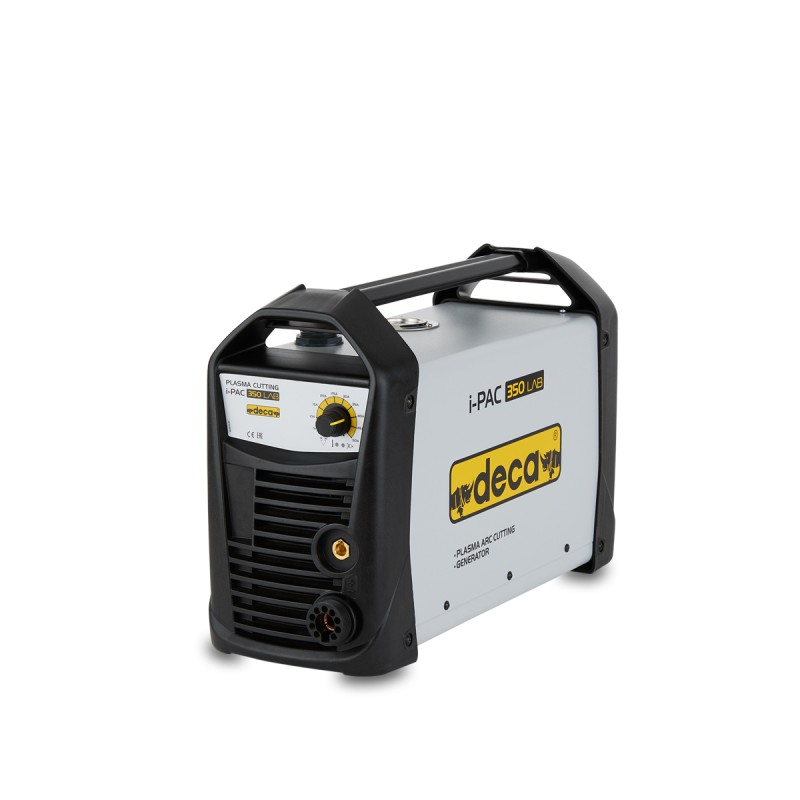

Plasma Inverter I-PAC 350 Lab 230V / F1 with ACC.
DESCRIPCIÓN
I-PAC 350 is designed for small repair and construction jobs.
Plasma cut single-phase inverter.
For the manual cut of all types of ferrous and non-ferrous materials as long as they are Electricity conductors: steel, copper, aluminum, stainless steel, etc.
I-PAC 350 supplies 50 amps and is able to cut with good quality up to 12
mm in sweet steel. If there are no particular quality requirements, the machine separates Up to 20 mm thick.
The supply voltage is single-phase 230 volts. or connected to a generator engine (See Technical Data Table).
The machine requires 130 liters per minute of compressed air.DESCARGAR FICHA TÉCNICA
384114800.pdf
Mi Descargar ficha técnica del producto 384114800
* Impuestos y transportes excluidos
| Feed | 230V-F1 |
|---|---|
| Power consumed: 60% / max. | 3/5,5 kW |
| Fuse | 20 AMP. |
| Compatible generator | 9 kW / kva. |
| Cutting current | 5 - 50 AMP. |
| EN60974-1 Service (40oC) | 45A-25% / 30A-60% / 23A-100% AMP. |
| Vacuum tension | 410 Volt. |

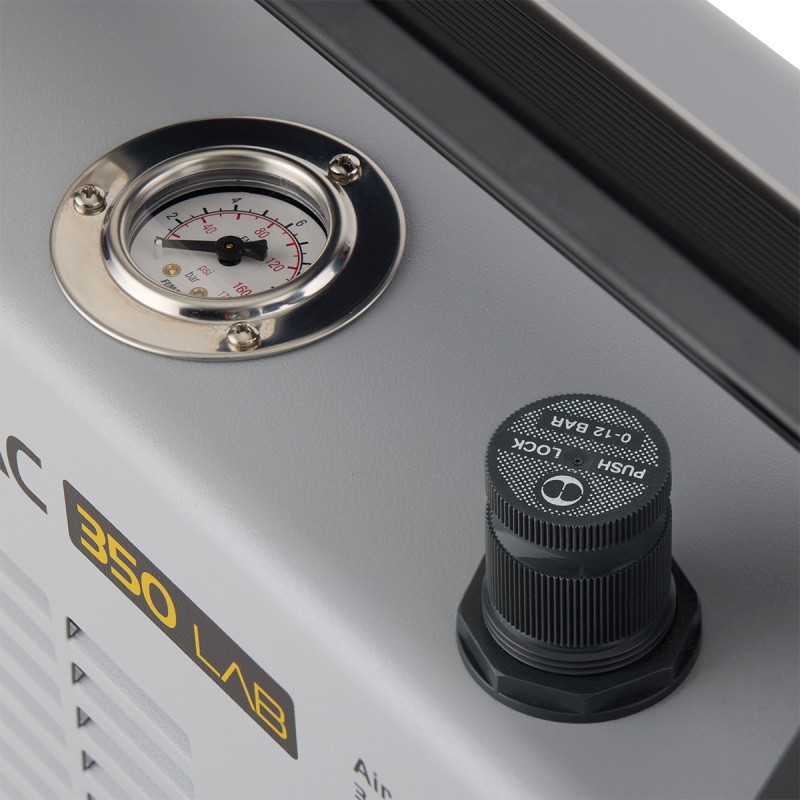

| Pressure Air Bar. | 3.5 - 5 bar. |
| Air consumption | 130 m / h |
| Cutting capacity | 12/20 mm. |
| Integrated compressor | NOT |
| Net / crude weight | 6.4 / 9.1 kg. |
| Dimension | 435 x 160 x 273 mm. |
| Dimensions packaging | 495 x 205 x 400 mm. |
