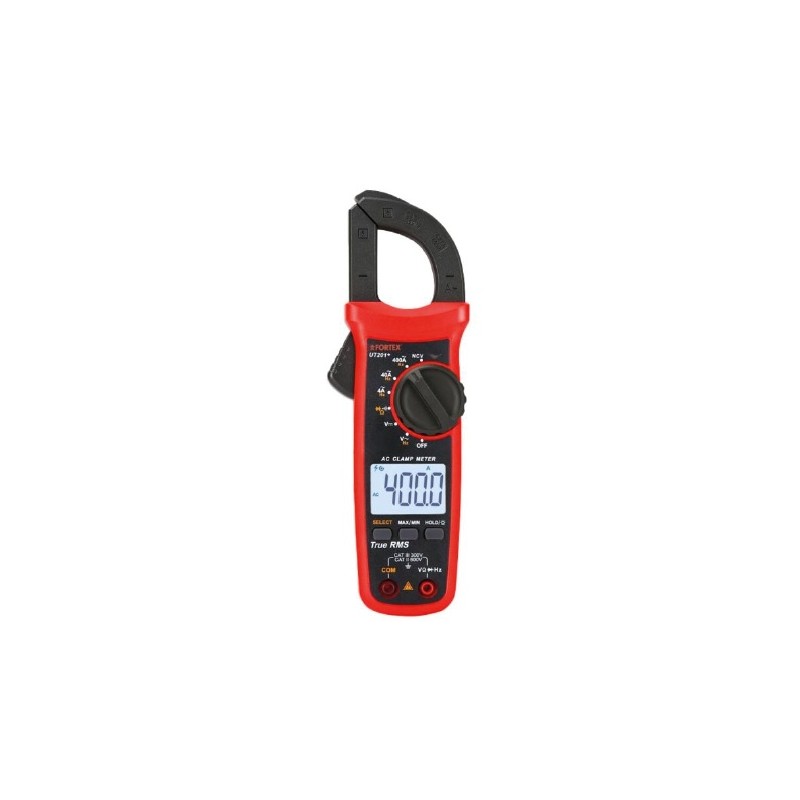

Digital multimetro with Pinza UT201 + (Plus)
DESCRIPTION
Digital multimeter with clamp. To measure AC current and AC / DC voltage, resistance and temperature. It has the following test functions: diodes, continuity with buzzer, data memory, input impedance for voltage MEASURING (around 10m?), Standby mode and low battery warning. Max.Display 1999. It is supplied with test tips and transport bag. Double safety insulation Cat.ii 600V, Cat.III 300V, IEC 61010.
Download technical sheet
520000066.pdf
Download product technical sheet 520000066
* Taxes and transport excluded
| DC voltage | 200mv / 2v / 20v / 200v / 600v |
|---|---|
| DC Pressure | 0.8% + 1 |
| AC voltage | 2v / 20v / 200v / 600v |
| AC Pressure | 1.2% + 5 |
| Dc | - |
| Current DC precision | - |
| AC | 2a / 20a / 200a / 400a |
| Current AC precision | 1.5% + 5 |
| Strength | 200? / 2k? / 20k? / 200k? / 2m? / 20m? |
| Precision resistance | 1% + 2 |
| Capacitance | - F |
| Accuracy capacitance | - |
| Operating temperature | € 40 C + 1000 € C ºC |
| Precision temperature | 1% + 3 |
| Frequency | - |
| Accuracy | - |
| Battery | 3V (AAA x 2) V. |
| Screen dimension | 35,6x18 mm. |
| Dimensión aparato | 210x75,6x30 mm. |
| Weight in grams | 220 gr. |
