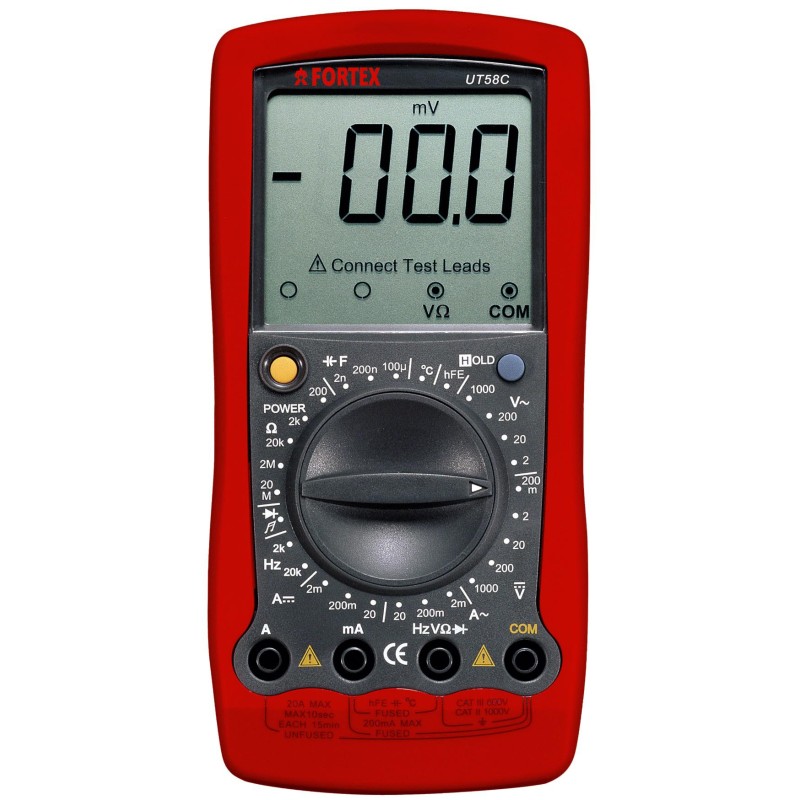

Digital Multimeter UT58C
DESCRIPTION
Digital multimeter with large display screen. To measure current and voltage AC / DC, resistance, capacitance, temperature and frequency. It has the following test functions: diodes, continuity with buzzer, transistor, data memory, standby mode and low battery warning. Max.Display 1999. It is supplied with case, test tips and temperature contact tip. Double safety insulation Cat.II 1000V, CAT.III 600V, EN 61010-1 / EN 61326-1. UT58E: Digital multimeter with large display screen. To measure current and voltage AC / DC, resistance, capacitance, temperature and frequency. It has the following test functions: diodes, continuity with buzzer, transistor, data memory, input impedance for the DC voltage MEASURING (around 10m?), Waiting mode and low battery warning. Max.Display 19999. It is supplied with case, test tips and temperature contact tip. Double safety insulation Cat.II 1000V, CAT.III 600V, EN 61010-1, EN 61326-1.
DESCARGAR FICHA TÉCNICA
520000015.pdf
Mi Descargar ficha técnica del producto 520000015
* Taxes and transport excluded
| DC voltage | 200mv / 2v / 20v / 200v / 1000v |
|---|---|
| DC Pressure | 0.5% + 1 |
| AC voltage | 2v / 20v / 200v / 750v |
| AC Pressure | 0.8% + 3 |
| Dc | 2ma / 200ma / 20a |
| Current DC precision | 0.8% + 1 |
| AC | 2ma / 200ma / 20a |
| Current AC precision | 1% + 3 |
| Strength | 200? / 2k? / 20k? / 2m? / 20m? |
| Precision resistance | 0.8% + 1 |
| Capacitance | 2NF / 200NF / 100UF F |
| Accuracy capacitance | 4% + 3 |
| Operating temperature | € 40 C + 1000 € C ºC |
| Precision temperature | 1% + 3 |
| Frequency | 2khz / 20khz |
| Accuracy | 1.5% + 5 |
| Battery | 1x9V (6F22) V. |
| Screen dimension | 60x54 mm. |
| Dimensión aparato | 179x88x39 mm. |
| Weight in grams | 350 gr. |
