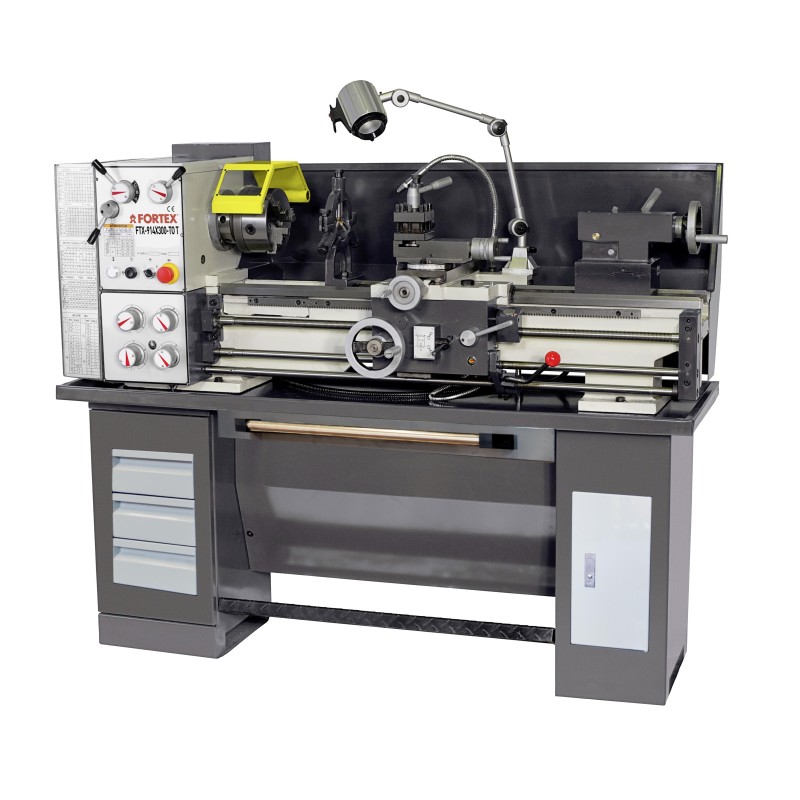

FTX-914X300-TO T *400V/F3 with bench and accessories
DESCRIPTION
Screw to work metals, professional use, robust design with prismatic guides laminated and rectified, with rear protector, cooling pump, foot brake, automatic gearbox bathed in oil. Spindle with conical roller bearings, adjustable wedge-shaped chariots. Microinterruptor stop by opening of pulley cover or protective dish. Tail and turret dish protector. Emergency stop. Automatic longitudinal and transverse movement. Dial thread indicator. Race top longitudinal advancement of the car. Machines manufactured according to CE standards.
DESCARGAR FICHA TÉCNICA
441085000.pdf
Mi Descargar ficha técnica del producto 441085000
* Taxes and transport excluded
| Coordinate viewer X/Y | NO |
|---|---|
| Alimentación | 400V/F3 |
| Potencia | 1.1 - 1.5 Kw-Hp |
| Change speeds | ENGRATMENTS |
| Diameter on bench | 300 mm. |
| Diameter on neckline | 430 mm. |
| Diameter on cart | 190 mm. |
| Banking width | 180 mm. |
| Inner diameter spindle | 38 mm. |
| Distance between points | 914 mm. |
| Point | MT5 |
| Cone contrapoint | MT3 |
| Diameter counterpoint | 32 mm. |
| Tour counterpoint | 90 mm. |
| Número de velocidades | 18 |
| Spindle speed range | 65 - 1810 r.p.m. |
| Longitudinal forward range | 0.079 - 1,291 mm/rev. |
| Cross-sectional forward range | 0.017 - 0.276 mm/rev. |
| A. Rapid longitudinal intermediate car | - m/min. |
| A. Cross-sectional carriage | - m/min. |
| Range metric steps | 36 TIPOS / 0.4 - 7 mm. |
| Rank inches | 36 TIPOS / 4 - 60 tpi |
| Range diametric steps | - d.p. |
| Range modular steps | - m.p. |
| Peso Neto/Bruto | 540 Kg. |
| Dimensiones | 1850X750X1460 mm. |
