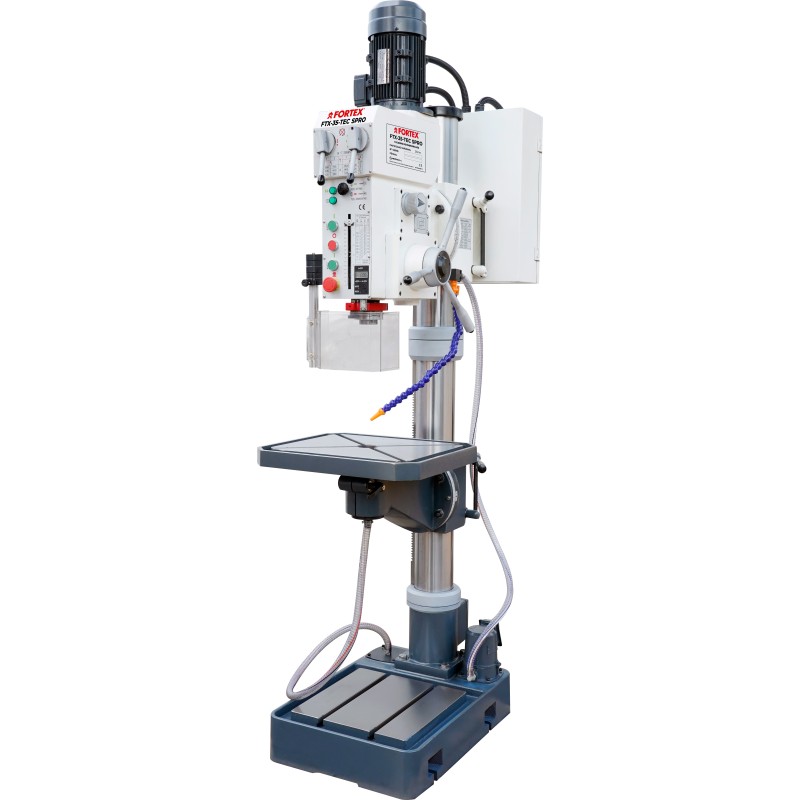

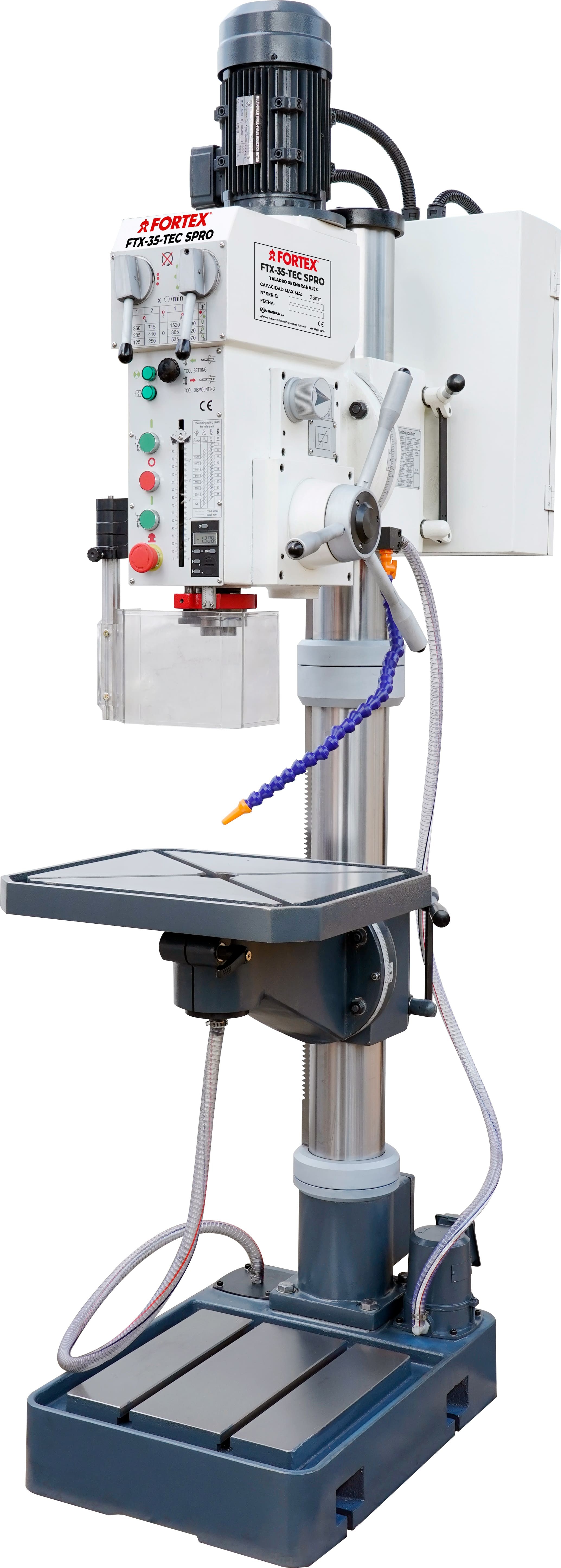

FTX-35-TEC SPRO * 400V/F3
DESCRIPTION
Silent gear box with automatic spindle advance and thread function. It incorporates high-precision spindle and rod, cooling equipment and tiltable table ±45o. It has shifting speeds by levers, turning inverter and electromagnetic clutch. Manufactured according to CE standards.
DESCARGAR FICHA TÉCNICA
441523000.pdf
Mi Descargar ficha técnica del producto 441523000
* Taxes and transport excluded
| Voltage | 400V/F3 |
|---|---|
| Power | 1.1/1.5 - 1.5/2 Kw-Hp |
| Transmission | Engranajes |
| Spindle speeds | 12 |
| Drill bit max capacity | 35 mm. |
| Tapping capacity | M24 |
| Chuck-to-column distance | 380 mm. |
| Morse taper | MT4 |
| Max. travel spindle | 160 mm. |
| T Slot | 2 X 14 mm. |
| Spindle-to-base distance | 1260 mm. |
| Spindle-to-table distance | 720 mm. |
| Max. travel of work table | 450 mm. |
| Diameter of column | 120 mm. |
| Base size | 650X460 mm. |
| Working table dimensions | 500X420 mm. |
| Table tilt | 45o |
| Spindle feed | 0.1 / 0.2 / 0.3 mm./r |
| Equipo refrigeración | YES |
| Total height | - mm. |
| Weight net-gross | 450 / 520 Kg. |
| Dimensions | 560X880X2250 mm. |
