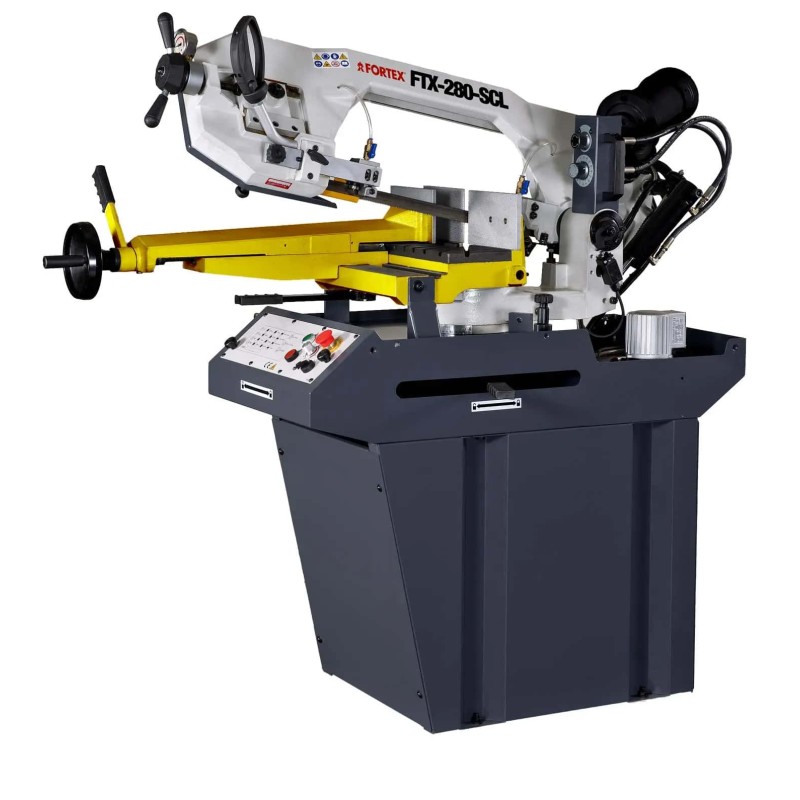

BAND SAW FTX-280-SCL *380V/50HZ/F3

Referencia 421078000 Category BAND SAW Brand FORTEX EAN13 8423640400849

DESCRIPTION

  • 0-60o rotary head, 45o ±.
  • Rest of the hydraulic head.
  • Cutting angle adjustment facility.
  • Automatic stop at the end of the cut.
  • Carbide leaf guide supported on ball bearings.
  • Emergency switch.
  • Cover opening security switch.
  • Pressure pressure gauge.
  • Machines manufactured according to CE standards.

DESCARGAR FICHA TÉCNICA

421078000.pdf

Mi Descargar ficha técnica del producto 421078000

* Taxes and transport excluded

Alimentación400V/F3
Potencia1.1 - 1.5 Kw-Hp
Velocidad45 - 90 m.p.m.
Cutting capacity 90° (redondo,rectangular, squared)235 / 190X280 / 200X200 mm.
Cutting capacity 45o (round, rectangular, squared)190 / 190X180 / 170X170 mm.
Cutting capacity 60o (round, rectangular, squared)120 / 120X120 / 120X120 mm.
Cutting capacity 45° Left (round, rectangular, squared)175 / 145X145 / 145X145 mm.
Vice opening85 mm.
Blade size2645X0,9X27 mm.
Peso Neto/Bruto272 / 297 Kg.
Dimensiones1580X770X1100 mm.
