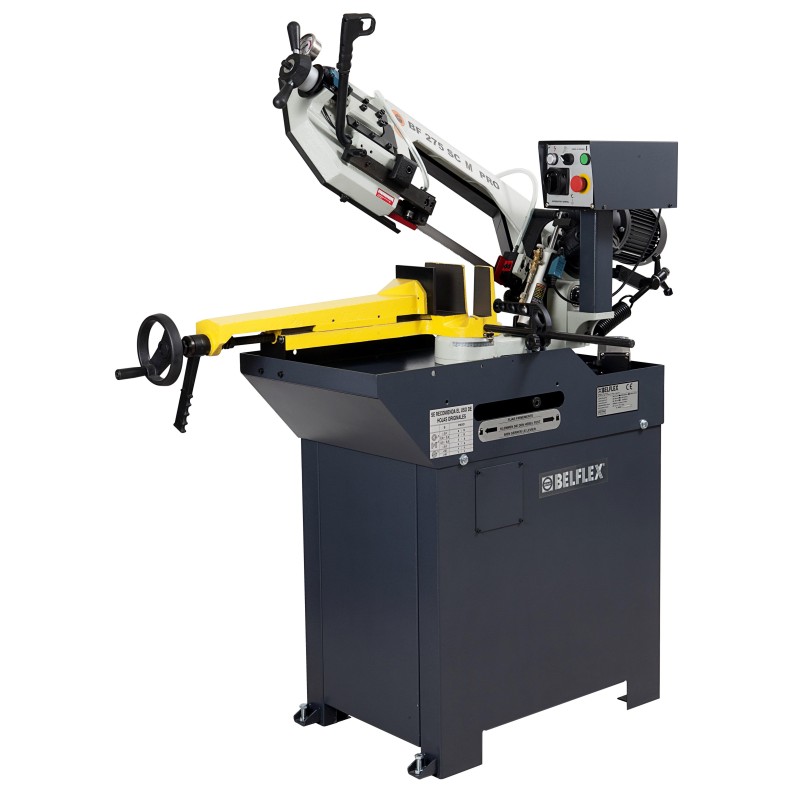

Band saw BF-275-SC M PRO * 230V / 50Hz / F1
DESCRIPTION

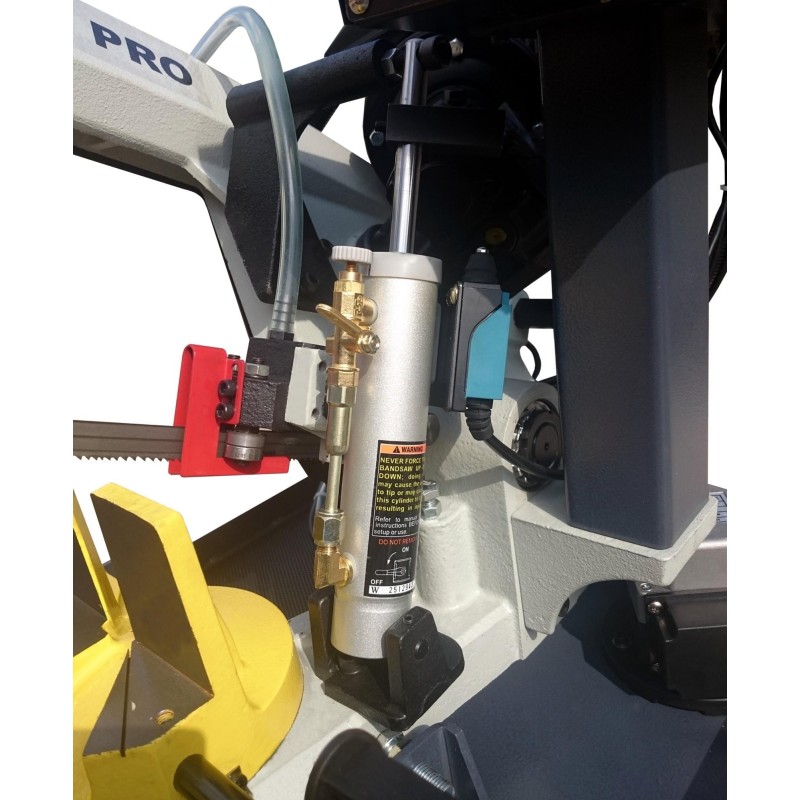

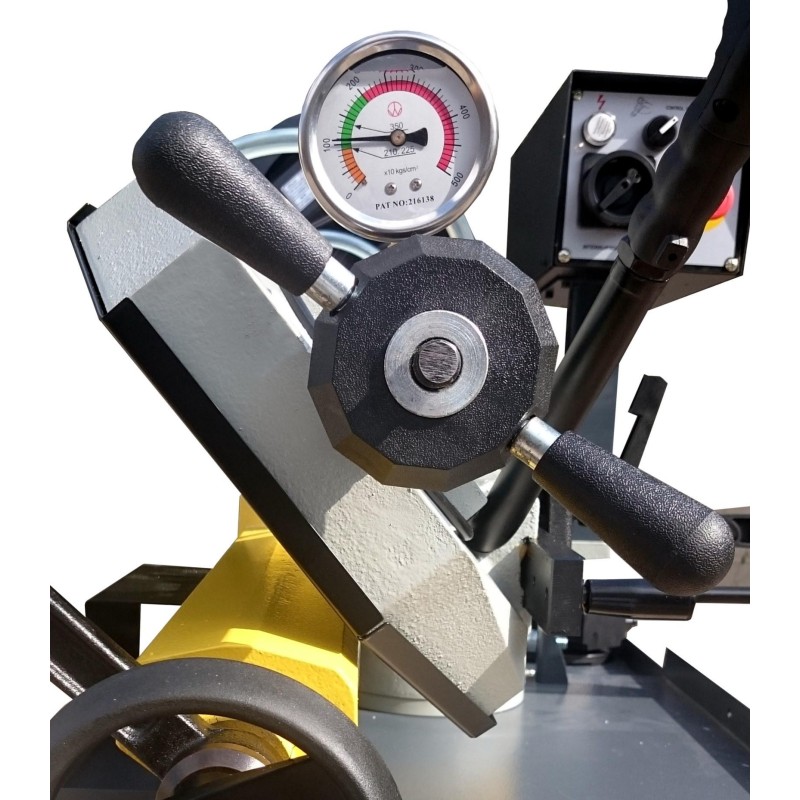

Jaw. Rotating head 0-60º. Refrigeration pump with double circuit. Drop of the head with manual or hydraulic descent selector. Ease of adjusting the cut angle. Automatic stop at the end of the cut. Leaf guide resting on double ball bearings train. Emergency switch Cover opening safety switch. Safety switch of sheet tension. Leaf tension manometer. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
421120000.pdf
Mi Descargar ficha técnica del producto 421120000
* Taxes and transport excluded
| Alimentación | 230V/F1 |
|---|---|
| Potencia | 1.1 - 1.5 Kw-Hp |
| Velocidad | 72 m.p.m. |
| Cutting capacity 90° (redondo,rectangular, squared) | 220 / 260x110 / 215x215 mm. |
| Cutting capacity 45o (round, rectangular, squared) | 150 / 155x110 / 145x145 mm. |
| Cutting capacity 60o (round, rectangular, squared) | 90 / 95x80 / 85x85 mm. |
| Cutting capacity 45° Left (round, rectangular, squared) | - mm. |
| Vice opening | 260 mm. |
| Blade size | 2460x0.9x27 mm. |
| Peso Neto/Bruto | 216 / 250 Kg. |
| Dimensiones | 1549x727x921 mm. |
