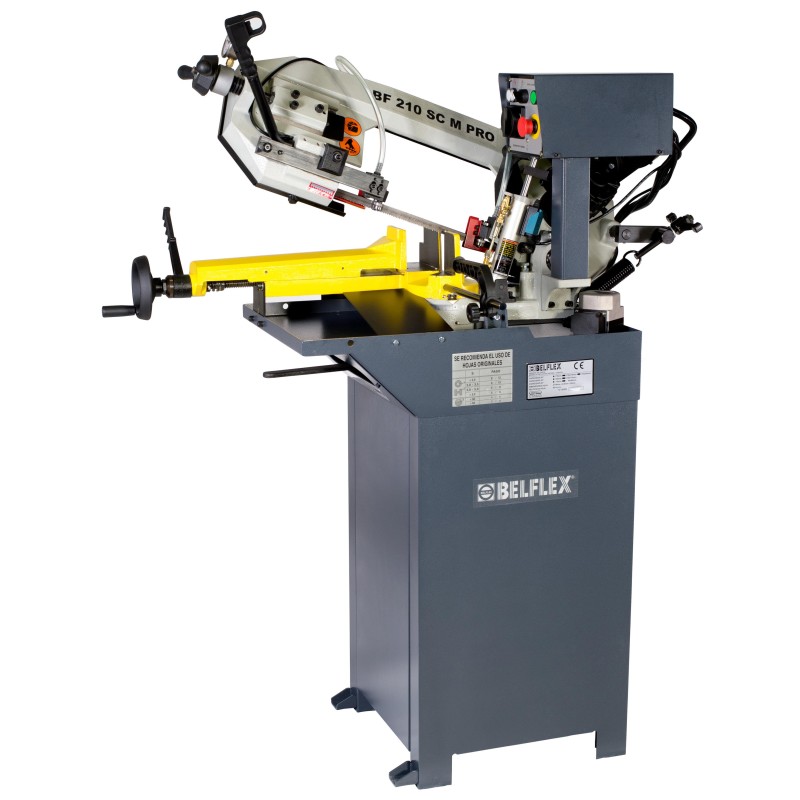

Band saw BF-210-SC M PRO * 230V / 50Hz / F1
DESCRIPTION

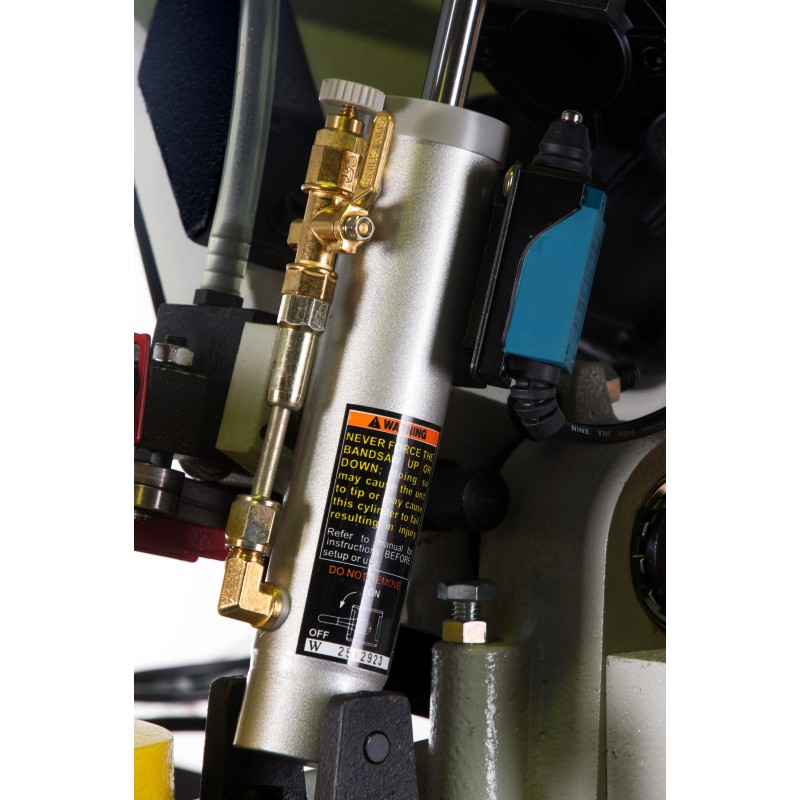

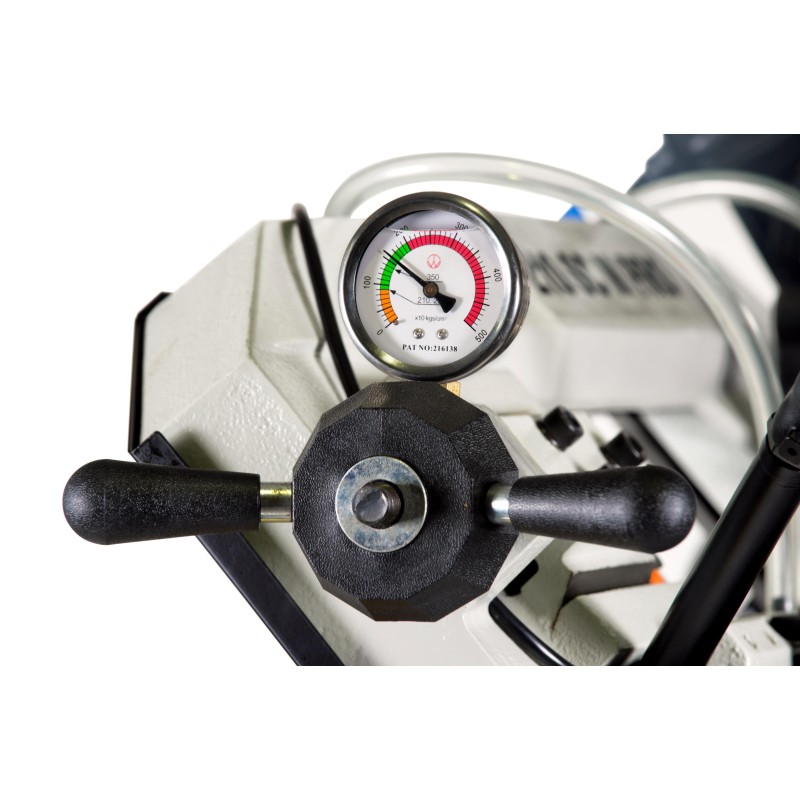

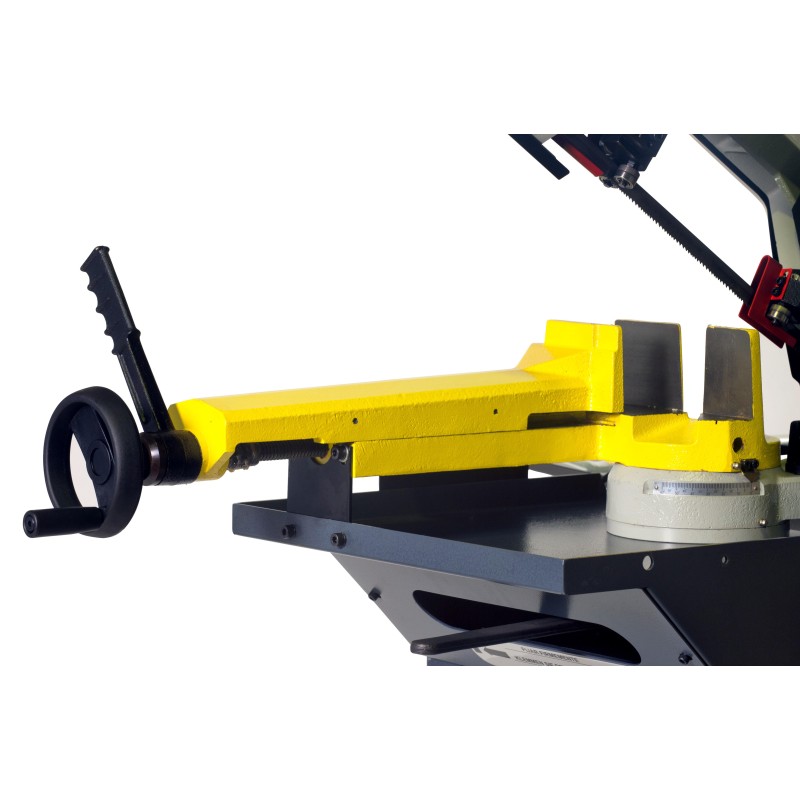

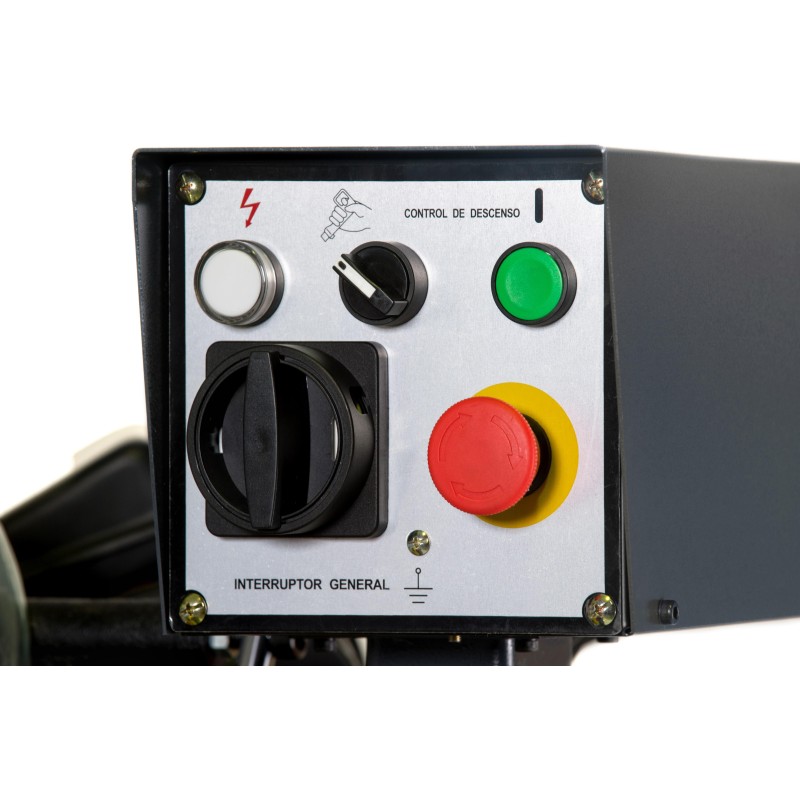

Jaw. Rotating head of 0 to 60º. Refrigeration pump with double circuit. Drop of the head with manual or hydraulic descent selector. Ease of adjusting the cut angle. Large base for good stability. Automatic stop at the end of the cut. Leaf guide supported on ball bearings. Emergency switch and cover opening safety. Leaf tension manometer. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
421236000.pdf
Mi Descargar ficha técnica del producto 421236000
* Taxes and transport excluded
| Alimentación | 230V/F1 |
|---|---|
| Potencia | 0.75 - 1,00 kW-HP |
| Velocidad | 90 m.p.m. |
| Cutting capacity 90° (redondo,rectangular, squared) | 170 / 100x210 / 170 mm. |
| Cutting capacity 45o (round, rectangular, squared) | 120 / 60x130 / 110 mm. |
| Cutting capacity 60o (round, rectangular, squared) | 70/65x70 / 60 mm. |
| Cutting capacity 45° Left (round, rectangular, squared) | - mm. |
| Vice opening | 210 mm. |
| Blade size | 2110x0.9x20 mm. |
| Peso Neto/Bruto | 156/170 kg. |
| Dimensiones | 1156x572x826 mm. |
