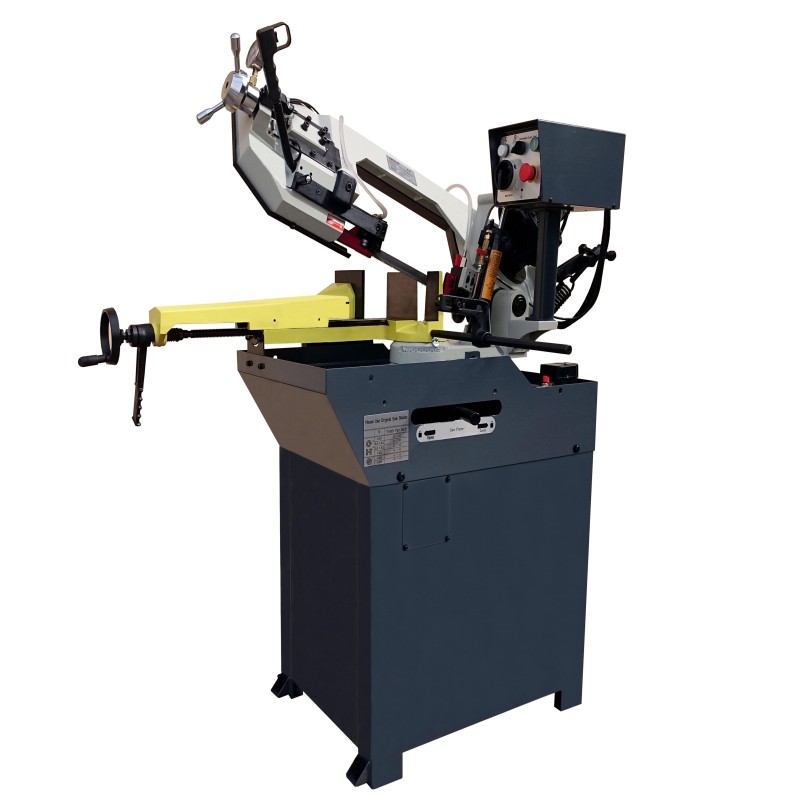

Band saw BF-200-SC TF * 400V / 50Hz / F3
DESCRIPTION
Fast action jaw. Rotating head of 0 to 60º. Refrigeration pump with double circuit. Drop of the head with manual or hydraulic descent selector. Ease of adjusting the cut angle. Automatic stop at the end of the cut. Leaf guide resting on double ball bearings train. Emergency switch Cover opening safety switch. Safety switch of sheet tension. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
421204000.pdf
Mi Descargar ficha técnica del producto 421204000
* Taxes and transport excluded
| Alimentación | 400V/F3 |
|---|---|
| Potencia | 1.1 - 1.5 Kw-Hp |
| Velocidad | 40 - 80 m.p.m. |
| Cutting capacity 90° (redondo,rectangular, squared) | 170 / 200X170 / 170X170 mm. |
| Cutting capacity 45o (round, rectangular, squared) | 120 / 110X110 / 110X110 mm. |
| Cutting capacity 60o (round, rectangular, squared) | 70 / 60X60 / 60X60 mm. |
| Cutting capacity 45° Left (round, rectangular, squared) | - mm. |
| Vice opening | 200 mm. |
| Blade size | 2085X0,9X20 mm. |
| Peso Neto/Bruto | 170 / 202 Kg. |
| Dimensiones | 1250X720X1000 mm. |
