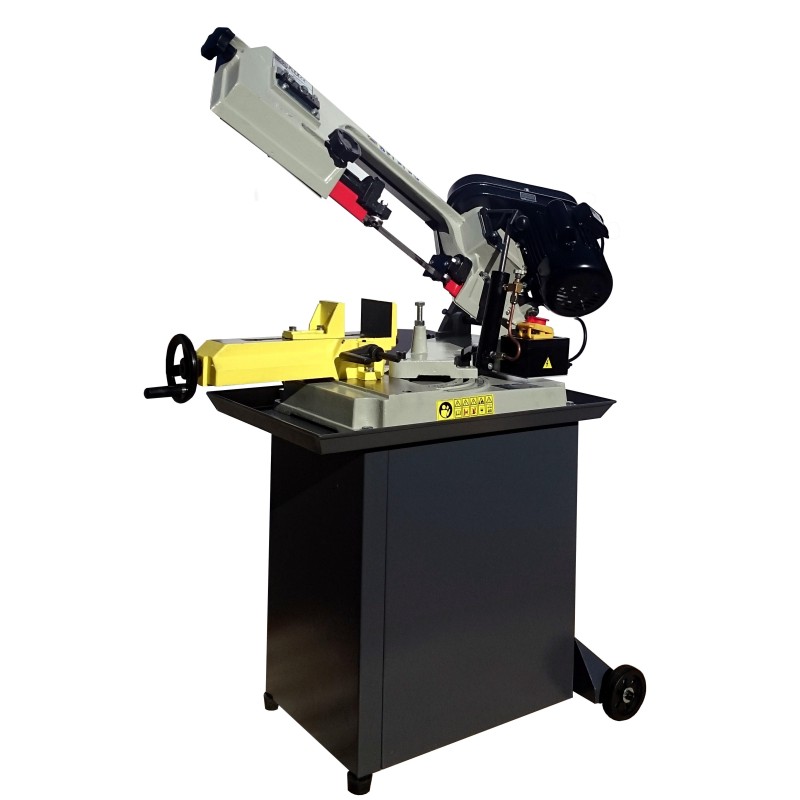

BF-128-SCP * 230V / 50HZ / F1 tape saw with pedestal
DESCRIPTION

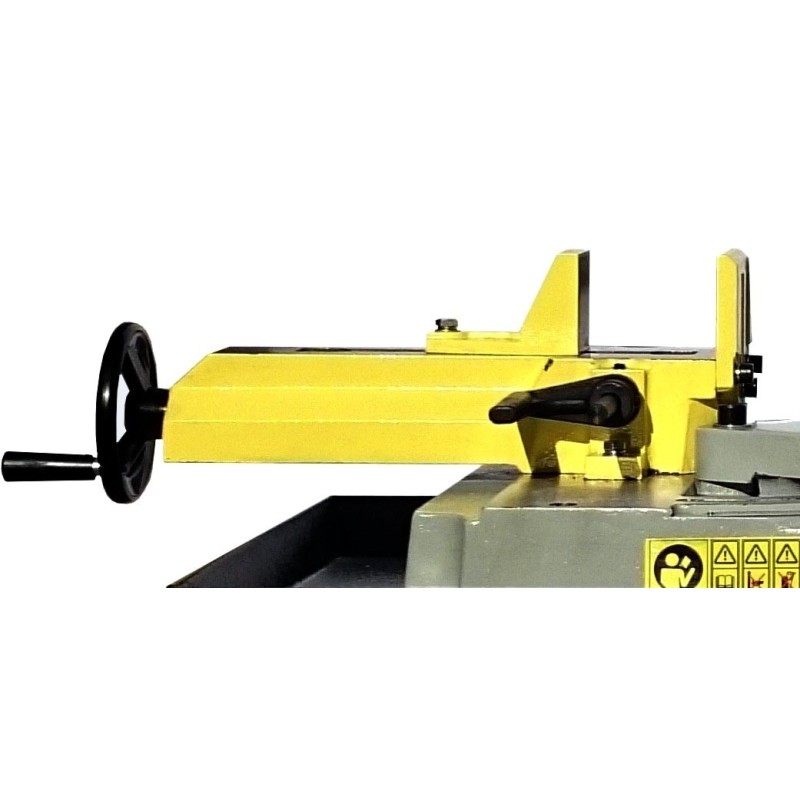

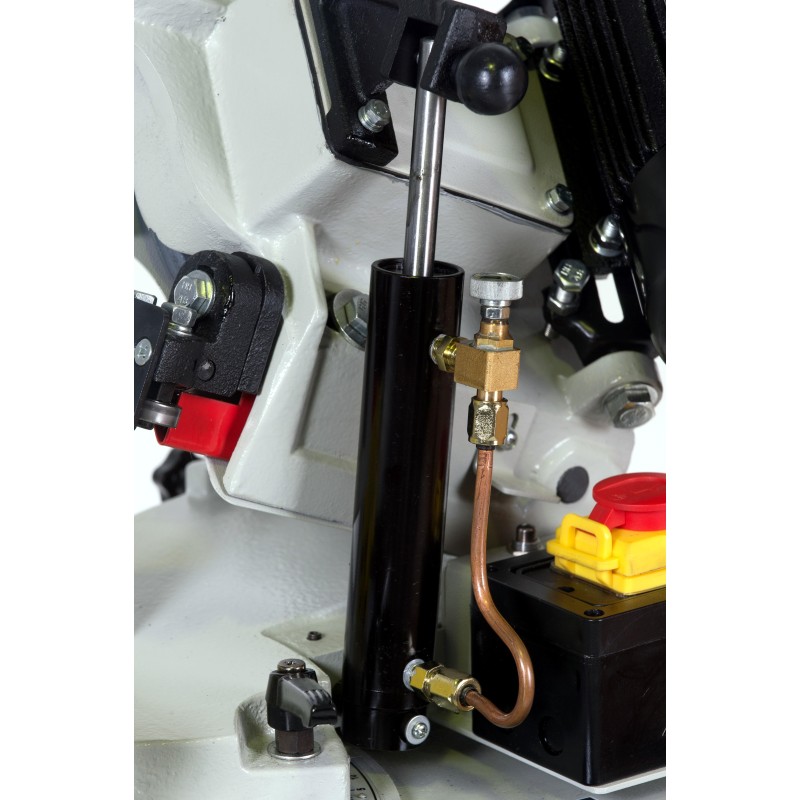

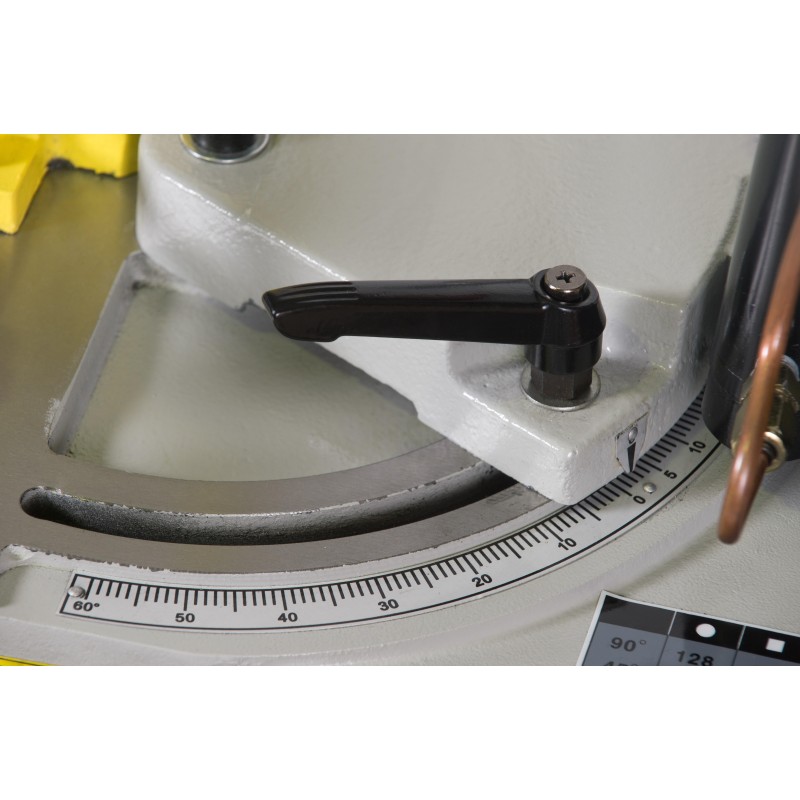

Ease of adjusting the cut angle. Jaw. Large base for good stability. Automatic stop at the end of the cut. Leaf guide supported on ball bearings. Emergency switch Downhill controlled with hydraulic piston. Belt transmission. Direct transmission. Rotating head 0-60º. Fabicada machine according to EC standards.
DESCARGAR FICHA TÉCNICA
421355000.pdf
Mi Descargar ficha técnica del producto 421355000
* Taxes and transport excluded
| Alimentación | 230V/F1 |
|---|---|
| Potencia | 0.75 -1 KW-HP |
| Velocidad | 24 - 35 - 55 m.p.m. |
| Cutting capacity 90° (redondo,rectangular, squared) | 128 / 125x120 / 120x120 mm. |
| Cutting capacity 45o (round, rectangular, squared) | 85/125x60 / 80x80 mm. |
| Cutting capacity 60o (round, rectangular, squared) | 55 / 75x25 / 55x55 mm. |
| Cutting capacity 45° Left (round, rectangular, squared) | - mm. |
| Vice opening | 170 mm. |
| Blade size | 1640x0,65x13 mm. |
| Peso Neto/Bruto | 82/84 kg. |
| Dimensiones | 1020x445x560 mm. |
