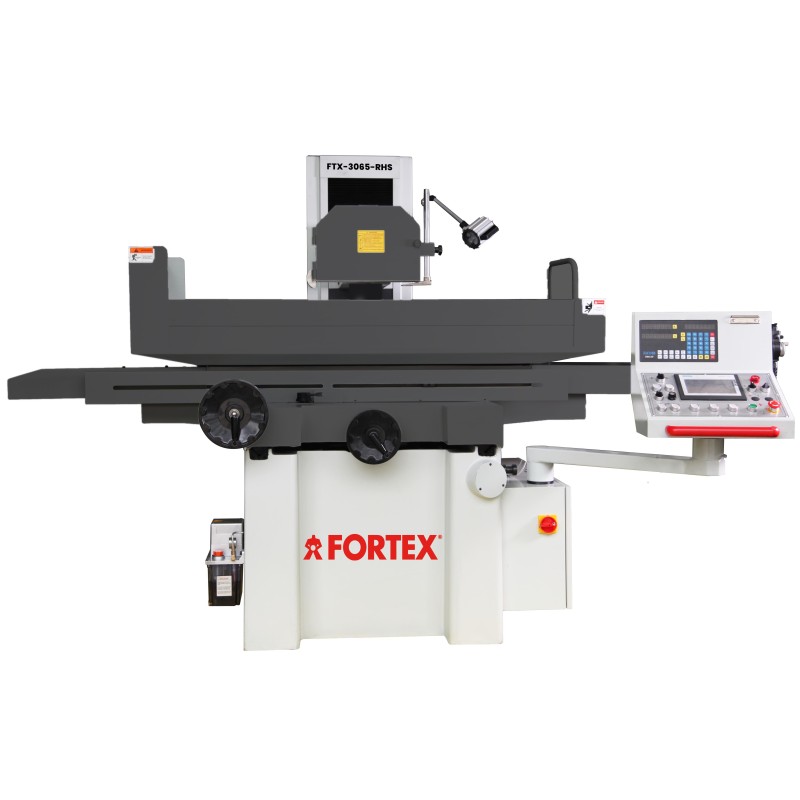

Hydraulic Rectifier Surface FTX-3065-RHS
DESCRIPTION
Designed for demanding industrial environments, this rectifier is ideal for serial production applications, offering precision, robustness and advanced automation.
Ideal for continuous operation online production, optimizing work times without sacrificing quality.
Wide grinding range, adaptable to different parts and operational needs.
Programmable PLC Controller, which allows you to customize work sequences, improve repeatability and reduce human errors.
Modern design and robust structure, Manufactured to offer stability, durability and resistance under intensive industrial conditions.
Adventure, which ensures a fluid and consistent operation, reducing operator intervention.
Series built-in digital screen, providing a clear and precise reading of the operating parameters.
DESCARGAR FICHA TÉCNICA
440401125.pdf
Mi Descargar ficha técnica del producto 440401125
* Taxes and transport excluded
| Feed | 400v / f3 |
|---|---|
| Table | 305 x 635 mm. |
| Longitudinal | 765 mm. |
| Transverse | 340 mm. |
| Distance spindle-table | 580 mm. |
| Size plate magnet | 300 x 600 mm. |
| Speed longitudinal movement table | 5 - 25 m / min. |
| Advance Auto Mov.Transverts Table | 0.1 - 8 mm / min. |
| Quick Speed Mov.Transverts Table | 990 m / min. |
| Advance flying Mov.Transvertsal table | 0.02 mm / div. |
| Advance autom.mov.vertical head | 0.005 - 0.05 mm / min. |
| Fast speed mov.vertical head | 480 m / min. |
| Flying mov.vertical head | 0.005 mm / div. |
| Dimension | 350 x 40 x 127 mm. |
| Power | 4 - 5.5 KW-HP |
| Hydraulic motor power | 2,2 - 3 kW-HP |
| Power Motor Pump Refrigeration | 0.13 - 0.18 kW-HP |
| Elevation motor power (servo) | 0.5 - 0.7 (servo) kW-hp |
| Power Motor Advance Transversal | 0.04 - 0.05 kW-HP |
| Load capacity | 270 kg. |
| Total height | 1900 mm. |
| Necessary space on floor for installation | 2900 x 2200 mm. |
| Roughness precision surface | Ra0,32μm / ra0,63μm |
| Net / crude weight | 2800/3200 kg. |
| Dimensions | 2350 x 2220 x 2210 mm. |
