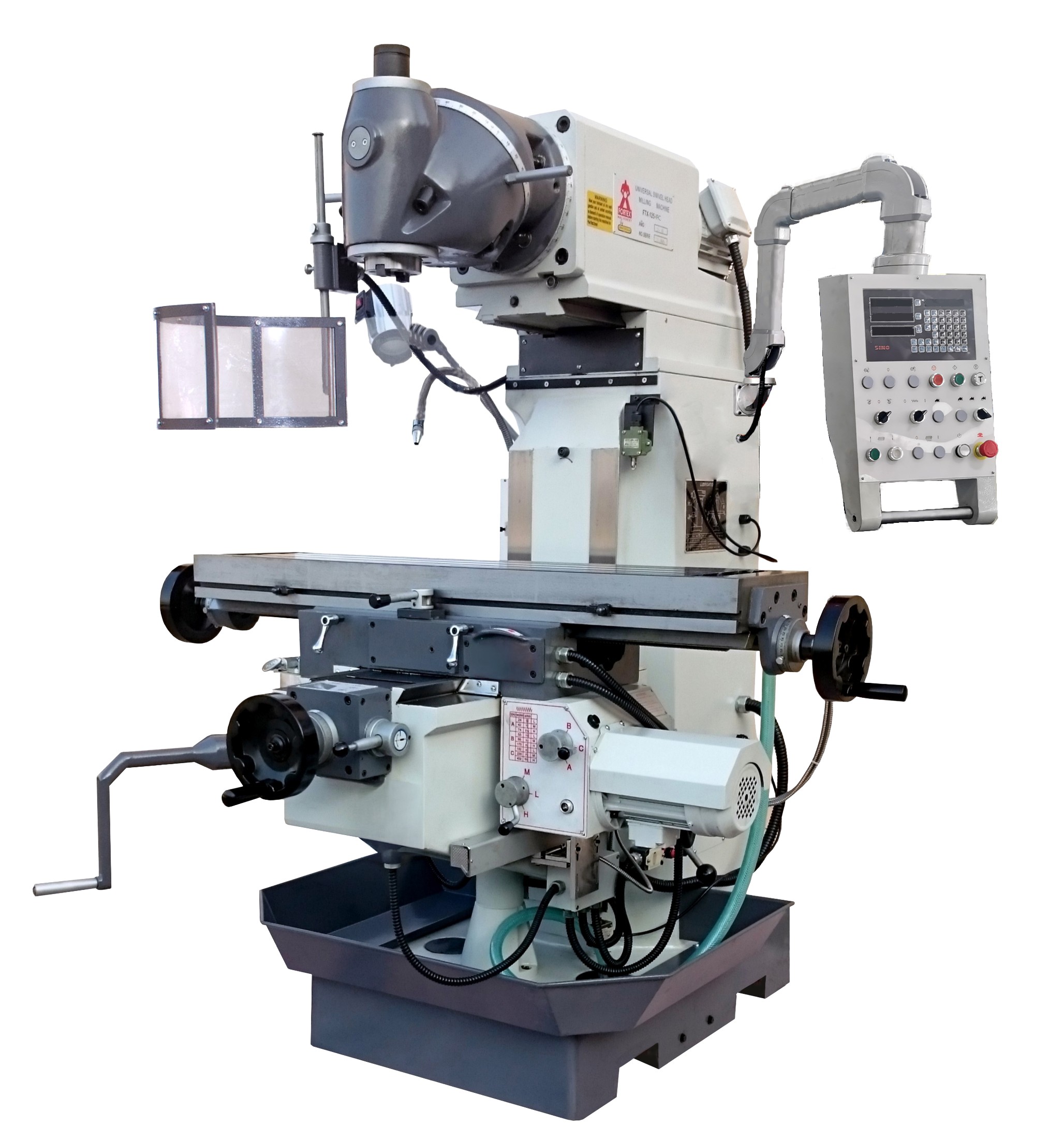

FTX-125-FC *400V-F3
DESCRIPTION
Professional universal bra with gear transmission, robust design. High-precision coordinate table. Millan tail column. Adjustable bra head. Automatic X-Y-Z series mounted axles. Machines manufactured according to CE standards.
DESCARGAR FICHA TÉCNICA
441330000.pdf
Mi Descargar ficha técnica del producto 441330000
* Taxes and transport excluded
| Voltage | 400V/F3 |
|---|---|
| Power | 2,2 - 3 Kw-Hp |
| Transmission | Engranajes |
| Spindle speeds | 2 - VARIABLE |
| Speed | 40 - 1600 m.p.m. |
| Coordinator X/Y/Z | YES |
| Table advance (X,Y,Z) | - mm/min |
| Quick preview (x,y,z) | - mm/min |
| Drill bit max capacity | 13 - 28 mm. |
| Head bow | 360 |
| Tapping capacity | - |
| Diameter of column | - mm. |
| Maximum vertical milling diameter | 28 mm. |
| Maximum diameter of horizontal milling | 125 mm. |
| Spindle diameter | - mm. |
| Tour of the spindle | - mm. |
| Turn of head over column | - |
| Perpendicular turn of the head | - |
| Chuck-to-column distance | - mm. |
| Max distance spindle-table | 80 - 500 mm. |
| Spindle feed | - mm./r |
| Morse taper | ISO40 |
| Max. travel spindle | - mm. |
| Longitudinal route (X) | 600 mm. |
| Cross-cutting route (Y) | 240 mm. |
| Vertical route (Z) | 400 mm. |
| T Slot | 2 X 14 mm. |
| Total height | - mm. |
| Working table dimensions | 260X1120 mm. |
| Base size | - mm. |
| Weight net-gross | 1400 Kg. |
| Dimensions | 1655X1500X1730 mm. |
