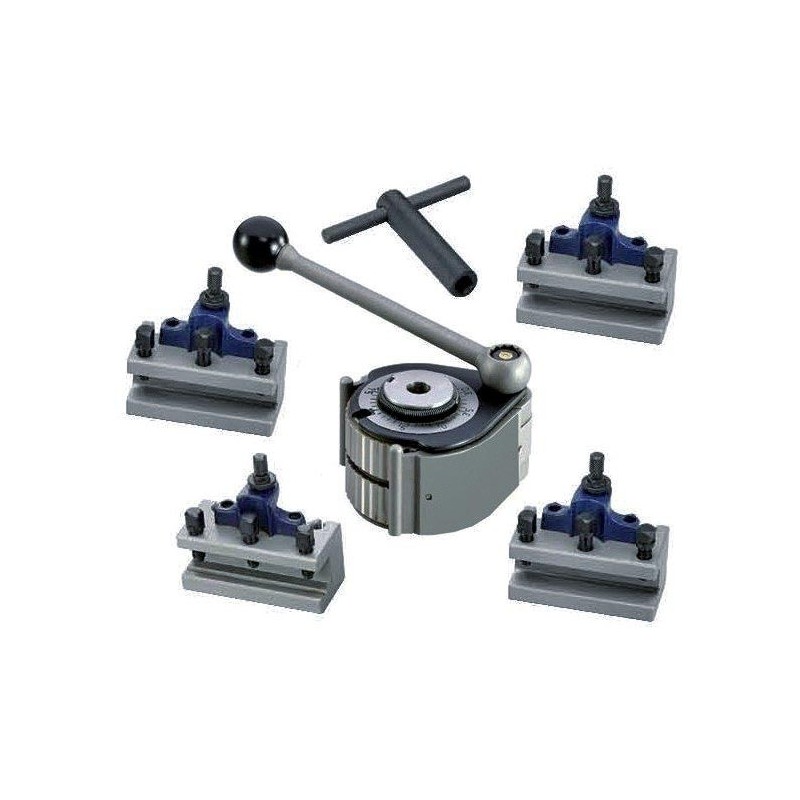

Lathe FTX-1000X330-TO DCR 400V / F3 2HP. + DRO + TCRE
DESCRIPTION
Lathe to work metals, professional use, robust design with temperate and grinded V-guides, with backsplash guard and tray pick up chips, drilling pump, foot brake, automatic gearbox. Hardened bearings and precision gears in the head. Automatic progress of longitudinal and cross carriage. Stopper microswitch by opening pulley cap or plate protector. Clipping plate protector and turret. Emergency stop Dial Thread Indicator. Race stopper longitudinal carriage stop. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
441060000.pdf
Mi Descargar ficha técnica del producto 441060000
* Taxes and transport excluded
| Coordinate viewer X/Y | IF |
|---|---|
| Alimentación | 400V/F3 |
| Potencia | 1.5 - 2 Kw-Hp |
| Change speeds | ENGRATMENTS |
| Diameter on bench | 330 mm. |
| Diameter on neckline | 450 mm. |
| Diameter on cart | 198 mm. |
| Banking width | 187 mm. |
| Inner diameter spindle | 51 mm. |
| Distance between points | 1000 mm. |
| Point | Mt6 |
| Cono contrapoint | MT3 |
| Diameter counterpoint | 32 mm. |
| Tour counterpoint | 100 mm. |
| Número de velocidades | 18 |
| Rango velocidades | 70 - 2000 r.p.m. |
| Longitudinal forward range | 0,052 - 1.392 mm / rev. |
| Cross-sectional forward range | 0.09 - 0.253 mm / rev. |
| A. Rapid longitudinal intermediate car | - m/min. |
| A. Cross-sectional carriage | - m/min. |
| Rango metric steps | 26 types / 0.4 - 7 mm. |
| Rank inches | 34 types / 4 - 56 TPI |
| Rango diametric steps | - d.p. |
| Rango modular steps | - m.p. |
| Peso Neto/Bruto | 580 / 640 Kg. |
| Dimensiones | 1940x760x1520 mm. |
