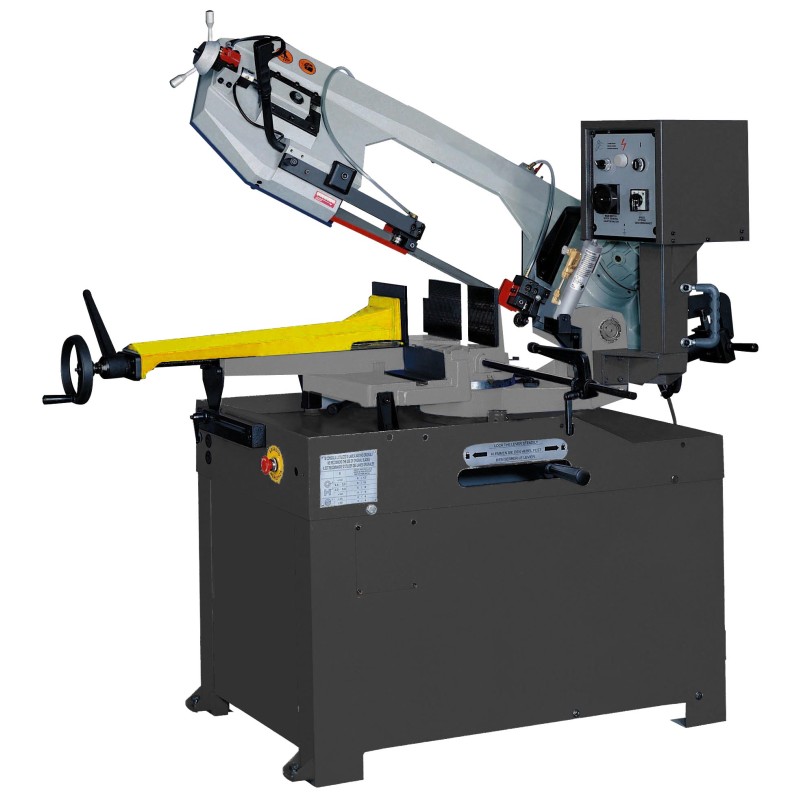

BF-350-DS TF * 400V / 50Hz / F3 tape saw
DESCRIPTION
Fast action jaw. Rotating head of 0-60º, 45º ±. Refrigeration pump with double circuit. Descent by hydraulic or manual piston. Ease of adjusting the cut angle. Automatic stop at the end of the cut. Leaf guides resting on double ball bearings train. Metallic leaf cleaning brush. Emergency switch Safety switch of sheet tension. Cover opening safety switch. Leaf tension manometer. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
421045000.pdf
Mi Descargar ficha técnica del producto 421045000
* Taxes and transport excluded
| Alimentación | 400V/F3 |
|---|---|
| Potencia | 1,5 - 2 Kw-Hp |
| Velocidad | 34 - 68 m.p.m. |
| Cutting capacity 90° (redondo,rectangular, squared) | 260 / 250x350 / 260x260 mm. |
| Cutting capacity 45o (round, rectangular, squared) | 230 / 110x240 / 165x165 mm. |
| Cutting capacity 60o (round, rectangular, squared) | 150 / 90x150 / 90x90 mm. |
| Cutting capacity 45° Left (round, rectangular, squared) | 200 / 60x260 / 170x170 mm. |
| Vice opening | 350 mm. |
| Blade size | 3160x0.9x27 mm. |
| Peso Neto/Bruto | 360 / 410 Kg. |
| Dimensiones | 1841x749x1092 mm. |
