VH-5 * Hydraulic jaw - mouth 130x48mm * 210mm opening
DESCRIPTION
Resistant construction for milling machines, drills, etc. Sliding parts have been temperate and husteous husillo for protection against chips and dirt. The rapid hydraulic system guarantees maximum tightening pressure with a minimum of force. Tolerance of 0.02 mm.
DESCARGAR FICHA TÉCNICA
4491002002.pdf
Mi Descargar ficha técnica del producto 4491002002
* Taxes and transport excluded

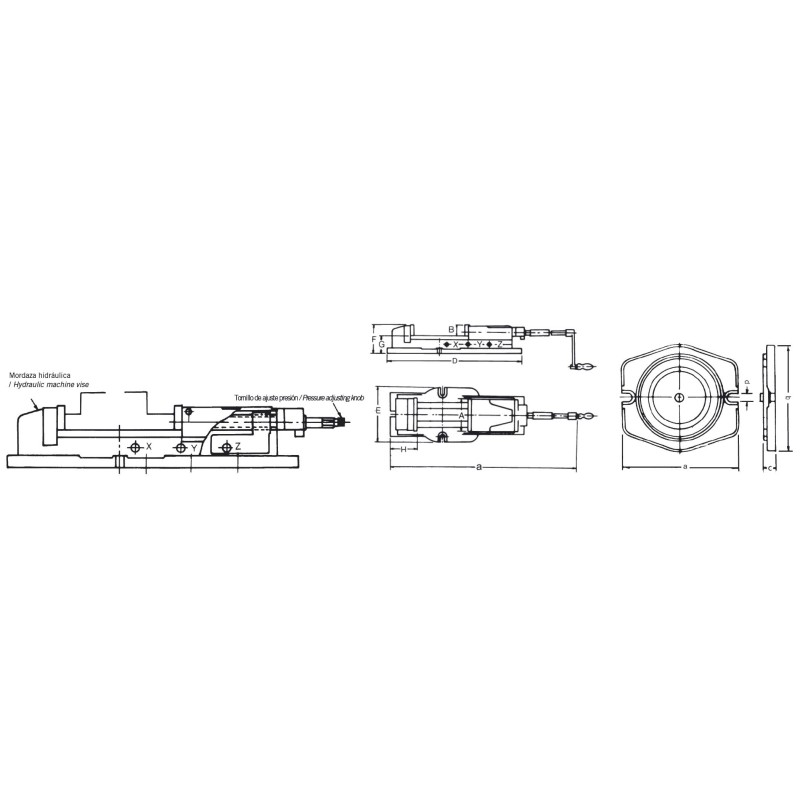

| TO | 130 mm. |
|---|---|
| B | 48 mm. |
| C Open | 210 mm. |
| TO | 670 |
| D | 550 mm. |
| F | 120 mm. |
| G | 70.5 mm. |
| PM | 107 mm. |
| Strength clamp | 4500 kg |
| Peso Neto/Bruto | 54.40 kg. |
| Maximum opening according to position | X 0-70 / and 68-144 / z 142-210 mm. |
| Dimensions rotating base | at 297 / B 297 / C 33 / D 16 mm. |
