VW-4 * Triaxial jaw - mouth 110x38mm * 116mm opening.
DESCRIPTION
Angles can be set in 3 dimensions. Turn 360º around the base. The jaw can be raised to 90º from horizontal to vertical. It can also be tilted in its lower angle of the base up to 45º lower angle of up to 45 ° in both directions (right left).
DESCARGAR FICHA TÉCNICA
4491002081.pdf
Mi Descargar ficha técnica del producto 4491002081
* Taxes and transport excluded

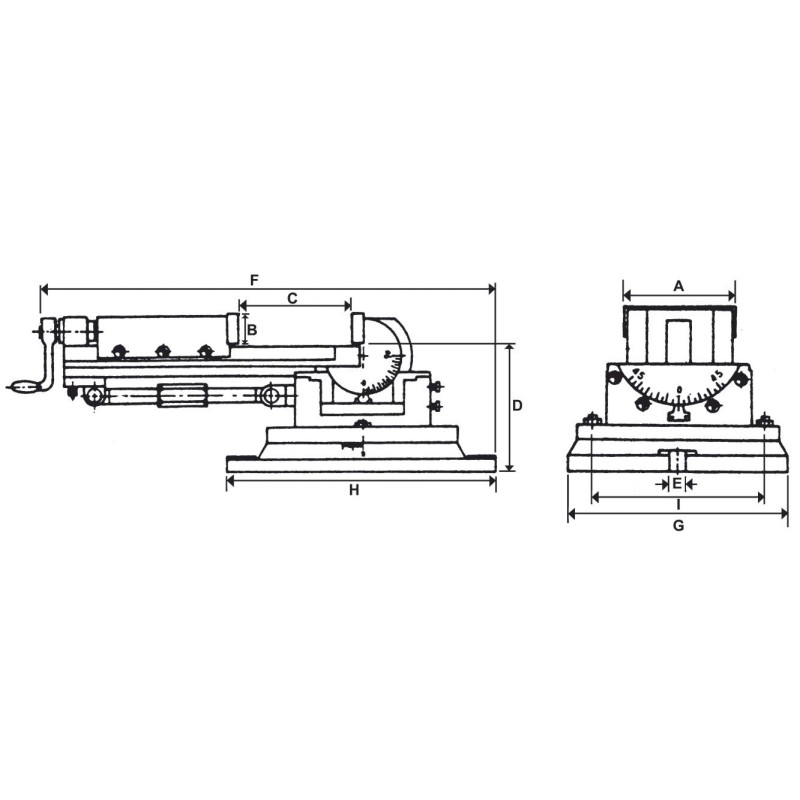

| TO | 110 mm. |
|---|---|
| B | 38 mm. |
| C Open | 116 mm. |
| D | 140 mm. |
| F | 530 mm. |
| G | 238 mm. |
| PM | 317 mm. |
| Cutting capacity 45° Left (round, rectangular, squared) | 280 mm. |
| Altura total | 595 mm. |
| Peso Neto/Bruto | 32.70 kg. |
