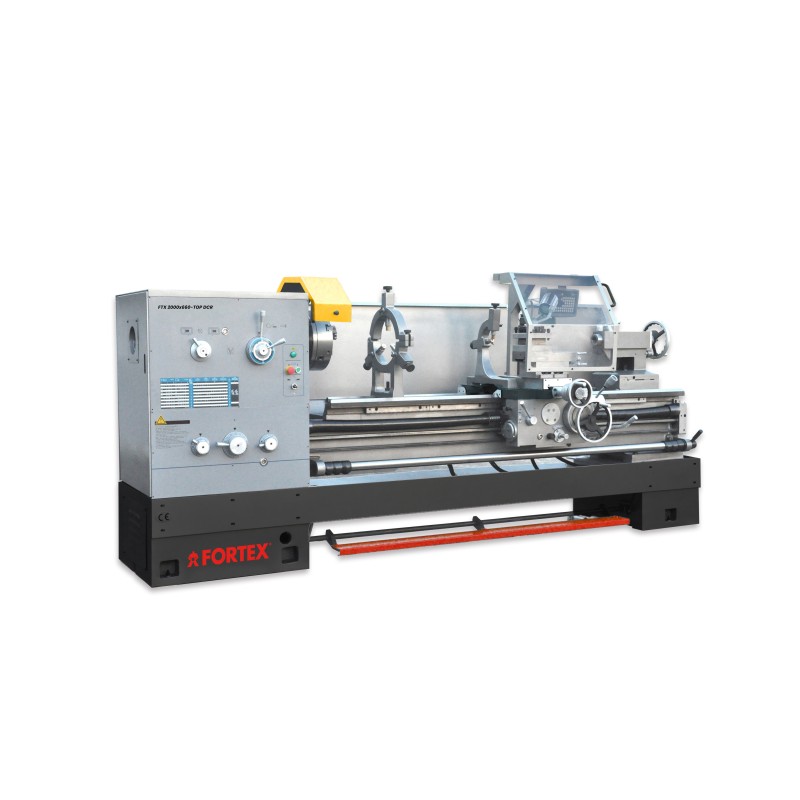

Lathe FTX-2000X660-Top DCR 400V / F3 * 10HP-12 Vel.

Name: Lathe FTX-2000X660-Top DCR 400V / F3 * 10HP-12 Vel.
Brand: FORTEX
SKU: 441009500

Referencia 441009500 Category Lathe Brand FORTEX

Metals, professional use, with robust design with guides

Laminated and rectified prismatics.

Truck guides tempered to HRC43.

With a shaft of guide for automatic advances.

Longitudinal and cross-cutting fast tour of the intermediate carriage.

Stopper microswitch by opening pulley cap or plate protector.

Clipping plate protector and turret.

Emergency stop

Foot brake.

Dial Thread Indicator.

Race stopper longitudinal carriage stop.

Machines manufactured according to EC standards.

441009500.pdf

Mi Descargar ficha técnica del producto 441009500

* Impuestos y transportes excluidos

X / Y coordinate display	IF
Feed	400v / f3
Power	7.5 - 10 Kw-Hp
Change speeds	GEARS
Diameter on bench	660 mm.
Diameter over neckline	870 mm.
Diameter on car	420 mm.
Interior diameter spindle	113 mm.
Distance between points	2000 mm.
Cone	1:20
Cone counterpoint	Mt5
Diameter counterpoint	- mm.
Journey	150 mm.
Number of speeds	12
Range speeds	36 - 1600 r.p.m.
Longitude progress rank	0,063 - 2.52 mm / rev.
Transverse progress rank	0.027 - 1.07 mm / rev.
A. Languid Longitance Intermediate car	4500 m/min.
A.Rapid Transversal Intermediate car	1900 m/min.
Range Metric Steps	22 Types / 1 - 14 mm.
Range inch steps	26 TIPOS / 28 - 2 tpi
Diametral Steps Range	24 types / 56 - 4 d.p.
Range Modular Steps	18 Types / 0.5 - 7 m.p.
Net / crude weight	3300 / 3645 Kg.
Dimensions	3650X1150X2060 mm.
