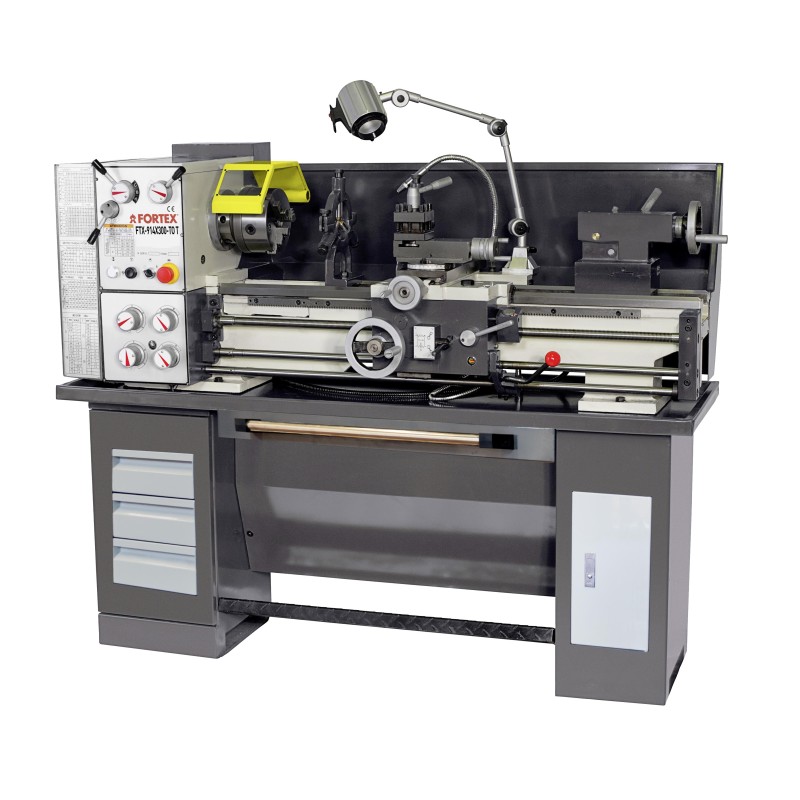

Lathe FTX-914X300-TO T * 400V / F3 with bench and accessories
DESCRIPCIÓN
Lathe to work metals, of professional use, of robust design with laminated and rectified prismatic guides, with rear protector, refrigeration pump, foot brake, automatic gearboxed gearbox. Spindle with conical roller bearings, adjustable wedge-shaped cars. Stopper microswitch by opening pulley cap or plate protector. Clipping plate protector and turret. Emergency stop Automatic longitudinal and transverse movement. Dial Thread Indicator. Race stopper longitudinal carriage stop. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
441085000.pdf
Mi Descargar ficha técnica del producto 441085000
* Impuestos y transportes excluidos
| X / Y coordinate display | NOT |
|---|---|
| Feed | 400v / f3 |
| Power | 1.1 - 1.5 kW-HP |
| Change speeds | GEARS |
| Diameter on bench | 300 mm. |
| Diameter over neckline | 430 mm. |
| Diameter on car | 190 mm. |
| Bench width | 180 mm. |
| Interior diameter spindle | 38 mm. |
| Distance between points | 914 mm. |
| Cone | Mt5 |
| Cone counterpoint | Mt3 |
| Diameter counterpoint | 32 mm. |
| Journey | 90 mm. |
| Number of speeds | 18 |
| Range speeds | 65 - 1810 r.p.m. |
| Longitude progress rank | 0,079 - 1,291 mm / rev. |
| Transverse progress rank | 0.017 - 0.276 mm / rev. |
| A. Languid Longitance Intermediate car | - m / min. |
| A.Rapid Transversal Intermediate car | - m / min. |
| Range Metric Steps | 36 Types / 0.4 - 7 mm. |
| Range inch steps | 36 Types / 4 - 60 TPI |
| Diametral Steps Range | - d.p. |
| Range Modular Steps | - m.p. |
| Net / crude weight | 540 kg. |
| Dimensions | 1850x750x1460 mm. |
